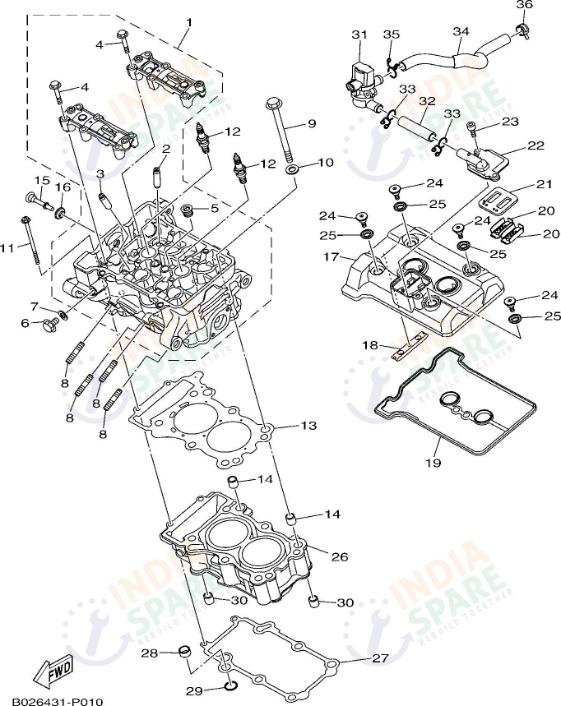

CYLINDER

Ref No	Part No	Part Name	Rate	Qnty	Order	Remarks
1	2MSE11021100	CYLINDER HEAD ASSY	₹ 24789	1
2	2MSE11331000	GUIDE VALVE 1-(O/S)-INLET	₹ 1920	4
3	1WDE11331000	GUIDE VALVE 1(O/S)-EXHAUST	₹ 765	4
4	901050602700	BOLT, FLANGE	₹ 15	12
5	903401800200	PLUG STRAIGHT SCREW	₹ 190	1
6	950220801200	BOLT FLANGE	₹ 9	1
7	904300880300	GASKET	₹ 4	1
8	956120862500	BOLT, STUD	₹ 58	4
9	2MS113610000	BOLT, CYLINDER HOLDING 1	₹ 310	6
10	902011084500	WASHER, PLATE	₹ 70	6
11	901100687000	BOLT, HEXAGON SOCKET HEAD	₹ 35	2
12	947030088300	SPARK PLUG	₹ 197	2
13	2MSE11810000	GASKET CYLINDER HEAD 1	₹ 1315	1
14	995301401600	PIN DOWEL	₹ 6	2
15	901090689800	BOLT	₹ 75	1
16	1WDE111G0000	RUBBER, MOUNT 1	₹ 212	1
17	1WDE11910000	COVER CYLINDER HEAD 1	₹ 1125	1
18	1WDE22410000	GUIDE STOPPER 2	₹ 90	1
19	1WDE11930000	GASKET, HEAD COVER 1	₹ 425	1
20	5VY1482K0000	PLATE	₹ 105	2
21	1WDE48900000	REED VALVE ASSY	₹ 717	1
22	1WDE48990000	CAP, CASE	₹ 190	1
23	913120602000	BOLT HEXAGON SOCKET HEAD	₹ 38	2
24	901090689900	BOLT	₹ 40	4
25	1WDE111G0000	RUBBER, MOUNT 1	₹ 212	4
26	2MSE13110000	2MSE13110000	₹ 0	1
27	B1XE13510000	GASKET, CYLINDER	₹ 440	1
28	5NL125640000	PIPE, WATER	₹ 105	1
29	932101677200	O RING	₹ 60	1
30	995301401600	PIN DOWEL	₹ 6	2
31	1WDE48400000	AIR CUT VALVE ASS'Y	₹ 1780	1
32	1WDE48810000	HOSE BEND 1	₹ 31	1
33	904671680100	CLIP	₹ 25	2
34	1WDE48820100	HOSE, BEND 2	₹ 140	1
35	904671680100	CLIP	₹ 25	1
36	904671680500	CLIP	₹ 5	1

Color Legend:

• Red: Canceled part - unavailable for any operations.
• Blue: Part of a kit - cannot be ordered individually.
• Gray (Dimmed): Disabled part - non-interactive for various reasons.
• Part Number : Superseded part - replaced by a newer part.

Description: - YAMAHA 2YS1 R3 Series CYLINDER
