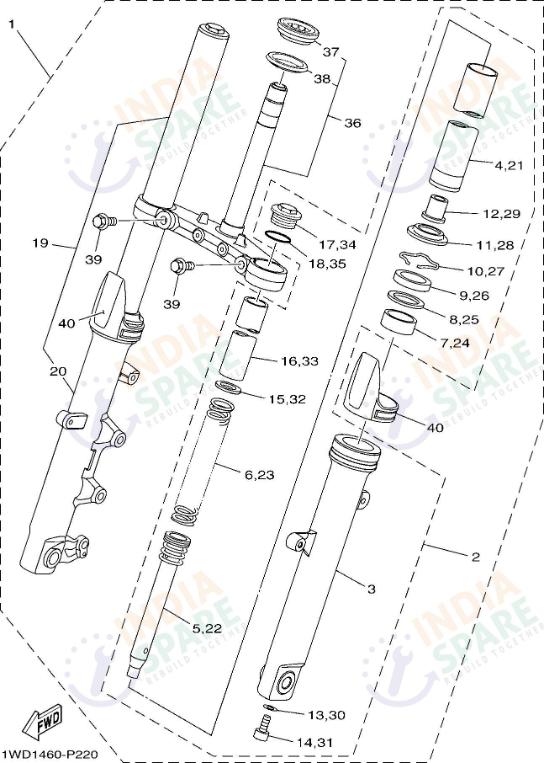

FRONT FORK
0
2YS1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1WDF31000000 | FRONT FORK ASSY | ₹ 19150 | 1 | ||
| 2 | 1WDF31020000 | FRONT FORK ASSY (L.H) | ₹ 8720 | 1 | ||
| 3 | 1WDF31260000 | TUBE, OUTER (LEFT) | ₹ 2990 | 1 | ||
| 4 | 1WDF31100000 | INNER TUBE COMP.1 | ₹ 4338 | 1 | ||
| 5 | 1WDF31700000 | CYLINDER COMP. FRONT FORK | ₹ 680 | 1 | ||
| 6 | 1WDF31410000 | SPRING FRONT FORK | ₹ 250 | 1 | ||
| 7 | 45PF31250000 | METAL, SLIDE 1 | ₹ 220 | 1 | ||
| 8 | 45PF31460000 | WASHER, OIL SEAL | ₹ 30 | 1 | ||
| 9 | 45PF31450000 | OIL SEAL | ₹ 300 | 1 | ||
| 10 | 45PF31560000 | CLIP OIL SEAL | ₹ 14 | 1 | ||
| 11 | 45PF31440000 | SEAL DUST | ₹ 100 | 1 | ||
| 12 | 1WDF31730000 | SPINDLE, TAPER | ₹ 200 | 1 | ||
| 13 | 509F3158L000 | GASKET | ₹ 16 | 1 | ||
| 14 | 31BF31810000 | BOLT, HEXAGON SOCKET HEAD | ₹ 26 | 1 | ||
| 15 | 45PF31490000 | WASHER SPRING UPPER | ₹ 15 | 1 | ||
| 16 | 1WDF31180000 | SPACER | ₹ 110 | 1 | ||
| 17 | 45PF31110000 | BOLT CAP | ₹ 22 | 1 | ||
| 18 | 45PF31880000 | O-RING | ₹ 27 | 1 | ||
| 19 | 1WDF31030000 | FRONT FORK ASSY (R.H) | ₹ 8820 | 1 | ||
| 20 | 1WDF31360000 | TUBE, OUTER (RIGHT) | ₹ 3090 | 1 | ||
| 21 | 1WDF31100000 | INNER TUBE COMP.1 | ₹ 4338 | 1 | ||
| 22 | 1WDF31700000 | CYLINDER COMP. FRONT FORK | ₹ 680 | 1 | ||
| 23 | 1WDF31410000 | SPRING FRONT FORK | ₹ 250 | 1 | ||
| 24 | 45PF31250000 | METAL, SLIDE 1 | ₹ 220 | 1 | ||
| 25 | 45PF31460000 | WASHER, OIL SEAL | ₹ 30 | 1 | ||
| 26 | 45PF31450000 | OIL SEAL | ₹ 300 | 1 | ||
| 27 | 45PF31560000 | CLIP OIL SEAL | ₹ 14 | 1 | ||
| 28 | 45PF31440000 | SEAL DUST | ₹ 100 | 1 | ||
| 29 | 1WDF31730000 | SPINDLE, TAPER | ₹ 200 | 1 | ||
| 30 | 509F3158L000 | GASKET | ₹ 16 | 1 | ||
| 31 | 31BF31810000 | BOLT, HEXAGON SOCKET HEAD | ₹ 26 | 1 | ||
| 32 | 45PF31490000 | WASHER SPRING UPPER | ₹ 15 | 1 | ||
| 33 | 1WDF31180000 | SPACER | ₹ 110 | 1 | ||
| 34 | 45PF31110000 | BOLT CAP | ₹ 22 | 1 | ||
| 35 | 45PF31880000 | O-RING | ₹ 27 | 1 | ||
| 36 | 1WDF33400000 | UNDER BRACKET COMP. | ₹ 3020 | 1 | ||
| 37 | 933999993200 | 933999993200 | ₹ 0 | 1 | ||
| 38 | 3FV234620000 | 3FV234620000 | ₹ 0 | 1 | ||
| 39 | 45PF33460000 | BOLT 1 | ₹ 42 | 2 | ||
| 40 | 1WS2331G0000 | COVER | ₹ 210 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 2YS1 R3 Series FRONT FORK
