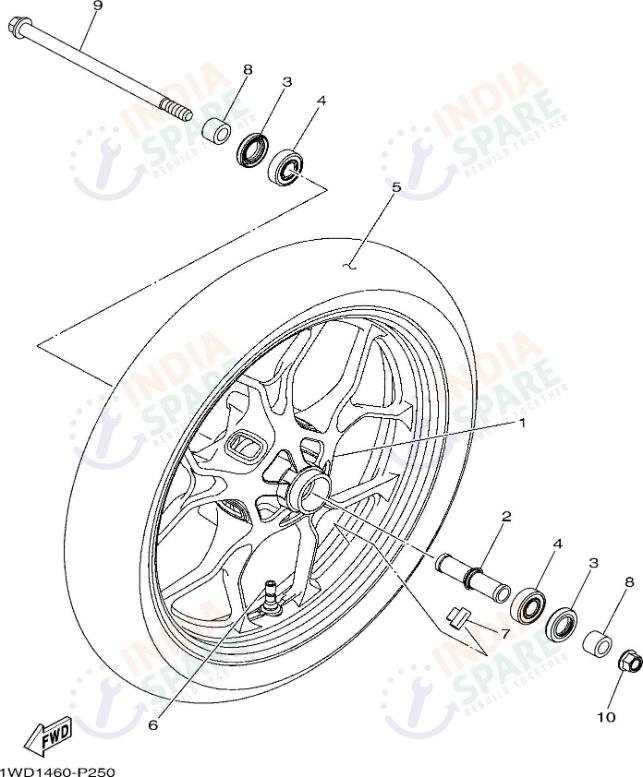

FRONT WHEEL
0
2YS1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

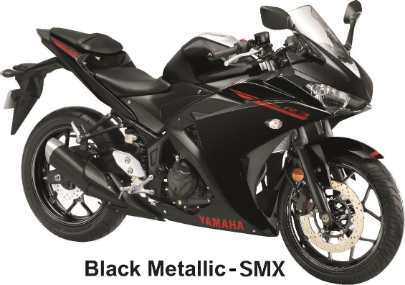

| 1A | 1WDF5168030X | CAST WHEEL, FRONT | ₹ 8724 | 1 | FOR SMX | |

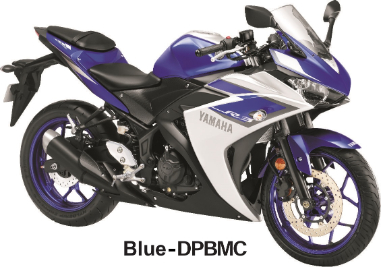

| 1B | 1WDF516803P0 | CAST WHEEL, FRONT DPBM1 | ₹ 7013 | 1 | FOR DPBMC | |
| 2 | 1WDF510C0100 | COLLAR ASSY. | ₹ 327 | 1 | ||
| 3 | 931062681500 | OIL SEAL | ₹ 32 | 2 | ||
| 4 | 93306302X400 | BEARING | ₹ 750 | 2 | ||
| 5 | 941111780400 | 941111780400 | ₹ 0 | 1 | ||
| 6 | 939000082800 | VALVE, RIM (TR412) | ₹ 200 | 1 | ||
| 7A | 5MT253980000 | BALANCER, WHEEL | ₹ 150 | 1 | ||
| 7B | 5MT253981000 | BALANCER, WHEEL(10G) | ₹ 160 | 1 | ||
| 7C | 5MT253982000 | BALANCER, WHEEL(30G) | ₹ 170 | 1 | ||
| 8 | 1PAF53860000 | COLLAR SPROCKET AXLE | ₹ 83 | 2 | ||
| 9 | 1WD251810000 | AXLE WHEEL | ₹ 1160 | 1 | ||
| 10 | 956021420000 | NUT, U FLANGE | ₹ 32 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 2YS1 R3 Series FRONT WHEEL
