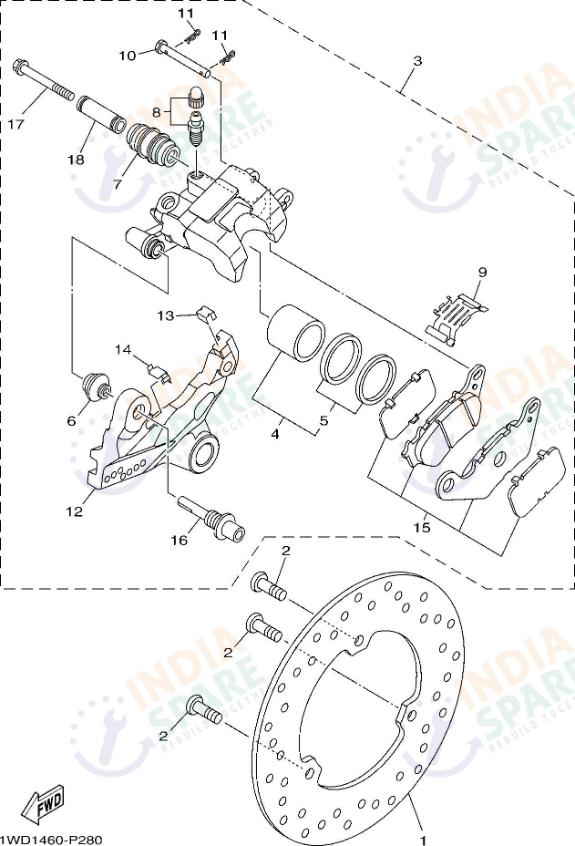

REAR BRAKE CALIPER
0
2YS1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1WDF582W0000 | DISK, REAR BRAKE 2 | ₹ 1780 | 1 | ||
| 2 | 901110881500 | BOLT,HEX. SOCKET BUTTON | ₹ 16 | 3 | ||
| 3 | 1WDF580W0100 | CALIPER ASSY REAR 2 | ₹ 3370 | 1 | ||
| 4 | 1WD258025000 | PISTON ASSY, CALIP | ₹ 510 | 1 | ||
| 5 | 1WD258035000 | CALIPER SEAL SET | ₹ 120 | 1 | ||
| 6 | 5YPF59170000 | BOOT CALIPER | ₹ 49 | 1 | ||
| 7 | 34X259370000 | BOOT 2 | ₹ 360 | 1 | ||
| 8 | 4C9W00480000 | BLEED SCREW SET | ₹ 89 | 1 | ||
| 9 | 1WDF59195000 | SUPPORT, PAD | ₹ 100 | 1 | ||
| 10 | 1WDF59245000 | PIN PAD | ₹ 90 | 1 | ||
| 11 | 5YPF59250100 | CLIP | ₹ 9 | 2 | ||
| 12 | 1WDF59215100 | BRACKET, SUPPORT | ₹ 745 | 1 | ||
| 13 | 1WDF59395100 | CLIP, PAD | ₹ 46 | 1 | ||
| 14 | 1WDF59396100 | CLIP PAD | ₹ 70 | 1 | ||
| 15 | 1WD258060000 | BRAKE PAD SET REAR | ₹ 808 | 1 | ||
| 16 | 1WDF59145000 | PIN SLIDE | ₹ 160 | 1 | ||
| 17 | 5KN259260100 | BOLT | ₹ 185 | 1 | ||
| 18 | 5TLF58380000 | SLEEVE, CALIPER | ₹ 110 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 2YS1 R3 Series REAR BRAKE CALIPER
