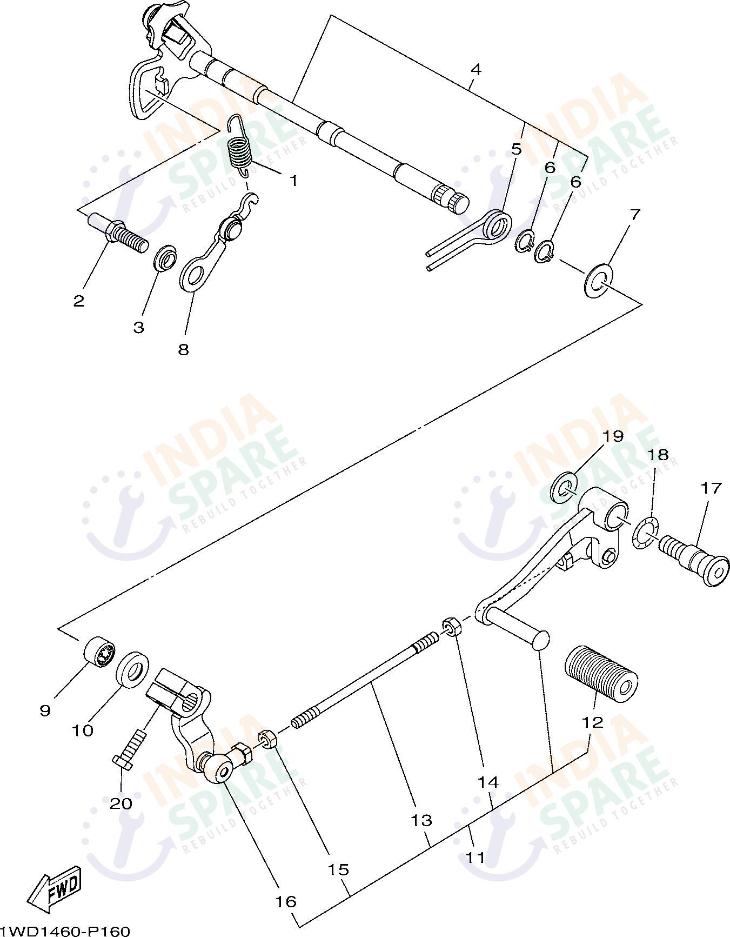

SHIFT SHAFT
0
2YS1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1WDE83370000 | SPRING | ₹ 26 | 1 | ||
| 2 | 1WDE81270000 | STOPPER SCREW | ₹ 60 | 1 | ||
| 3 | 1WDE81750000 | SPACER | ₹ 56 | 1 | ||
| 4 | 1WDE81010000 | SHIFT SHAFT ASSY | ₹ 810 | 1 | ||
| 5 | 905082980600 | SPRING TORSION | ₹ 31 | 1 | ||
| 6 | 990091240000 | CIRCLIP | ₹ 58 | 2 | ||
| 7 | 90201127E100 | WASHER PLAIN | ₹ 5 | 1 | ||
| 8 | 1WDE81400000 | STOPPER LEVER ASSY | ₹ 413 | 1 | ||
| 9 | 933171129500 | BEARING | ₹ 287 | 1 | ||
| 10 | 931021210600 | OIL SEAL | ₹ 115 | 1 | ||
| 11 | B1XE81100100 | SHIFT PEDAL ASSY | ₹ 1780 | 1 | ||
| 12 | 1EGE81130200 | COVER, SHIFT PEDAL | ₹ 15 | 1 | ||
| 13 | 1WDE81150000 | ROD, SHIFT | ₹ 110 | 1 | ||
| 14 | 901700602300 | NUT | ₹ 25 | 1 | ||
| 15 | 9530N0660000 | NUT | ₹ 1 | 1 | ||
| 16 | 1WDE81120000 | ARM, SHIFT | ₹ 885 | 1 | ||
| 17 | 45PF72610000 | SHAFT | ₹ 290 | 1 | ||
| 18 | 902061400100 | WASHER, WAVE | ₹ 180 | 1 | ||
| 19 | 902011084100 | WASHER PLATE | ₹ 4 | 1 | ||
| 20 | 970120602000 | BOLT | ₹ 10 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 2YS1 R3 Series SHIFT SHAFT
