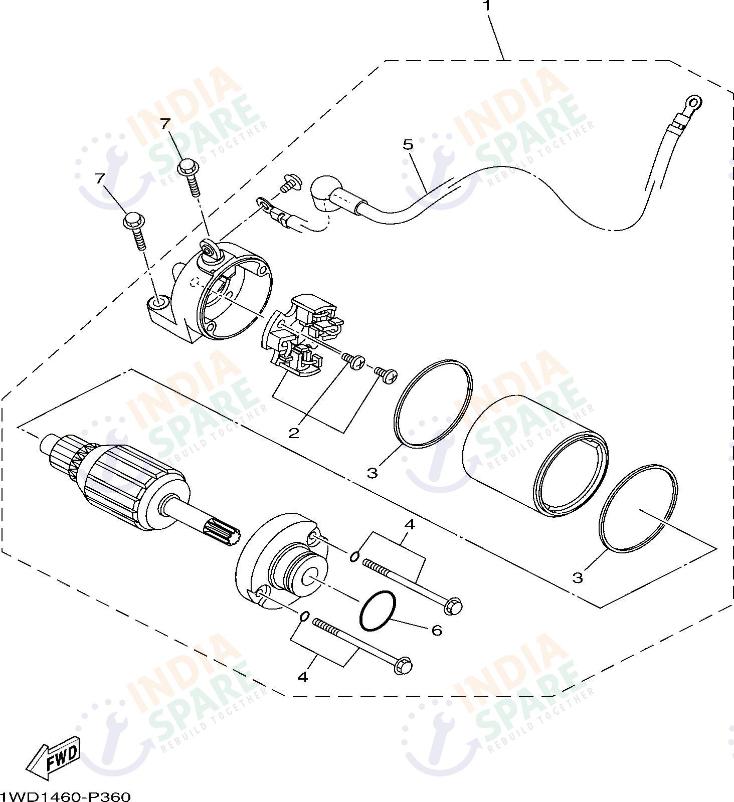

STARTING MOTOR
0
2YS1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1WDH18000300 | STARTING MOTOR ASSY | ₹ 5950 | 1 | ||
| 2 | 1WDH18010000 | BRUSH SET | ₹ 1900 | 1 | ||
| 3 | 1WDH18610000 | GASKET | ₹ 100 | 2 | ||
| 4 | 1WDH18280000 | BOLT 2(SCREW SET) | ₹ 31 | 2 | ||
| 5 | 1WDH183G0000 | CORD COMP. | ₹ 360 | 1 | ||
| 6 | 932102571100 | O-RING | ₹ 113 | 1 | ||
| 7 | 950220602500 | BOLT FLANGE | ₹ 11 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 2YS1 R3 Series STARTING MOTOR
