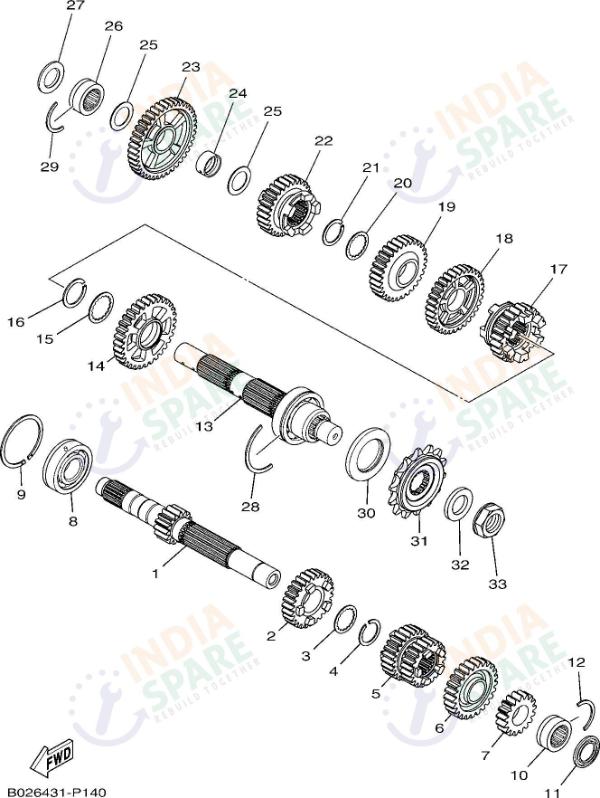

TRANSMISSION

Ref No	Part No	Part Name	Rate	Qnty	Order	Remarks
1	2MSE74110000	AXLE, MAIN	₹ 2660	1
2	2MSE71510000	GEAR 5TH PINION	₹ 2190	1
3	902142200800	WASHER, CLAW	₹ 95	1
4	934402420000	CIRCLIP	₹ 85	1
5	2MSE71310000	GEAR 3RD PINION	₹ 2226	1
6	2MSE71610000	GEAR 6TH PINION	₹ 2291	1
7	2MSE71210000	GEAR 2ND PINION	₹ 819	1
8	93306255Y900	BEARING	₹ 1025	1
9	934405200900	CIRCLIP	₹ 190	1
10	93311420Y300	BEARING	₹ 582	1
11	931012080200	OIL SEAL	₹ 105	1
12	278174250000	CIRCLIP 2	₹ 65	1
13	1WDE74020000	DRIVE AXLE ASSY	₹ 7030	1
14	2MSE72210000	GEAR, 2ND WHEEL	₹ 1920	1
15	902092501100	WASHER	₹ 60	1
16	934402818400	CIRCLIP	₹ 60	1
17	2MSE72610000	GEAR, 6TH WHEEL	₹ 1675	1
18	2MSE72310000	GEAR, 3RD WHEEL	₹ 1600	1
19	2MSE72410000	GEAR, 4TH WHEEL	₹ 1410	1
20	902142200800	WASHER, CLAW	₹ 95	1
21	934402420000	CIRCLIP	₹ 85	1
22	2MSE72510000	GEAR, 5TH WHEEL	₹ 1150	1
23	2MSE72110000	GEAR, 1ST WHEEL	₹ 1340	1
24	903872081400	COLLAR	₹ 268	1
25	902012027600	WASHER, PLATE	₹ 85	2
26	93311420Y300	BEARING	₹ 582	1
27	931012080200	OIL SEAL	₹ 105	1
28	1WD174240000	CIRCLIP 1	₹ 70	1
29	278174250000	CIRCLIP 2	₹ 65	1
30	931023580800	OIL SEAL	₹ 144	1
31	1WDE74600000	1WDE74600000	₹ 0	1
32	902012002300	WASHER, PLATE	₹ 299	1
33	901792001300	NUT	₹ 738	1

Color Legend:

• Red: Canceled part - unavailable for any operations.
• Blue: Part of a kit - cannot be ordered individually.
• Gray (Dimmed): Disabled part - non-interactive for various reasons.
• Part Number : Superseded part - replaced by a newer part.

Description: - YAMAHA 2YS1 R3 Series TRANSMISSION
