VALVE
0
2YS1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2MSE21110000 | VALVE INTAKE | ₹ 650 | 4 | ||
| 2 | 2MSE21210000 | VALVE EXHAUST | ₹ 1440 | 4 | ||
| 3 | 2MSE21260000 | SEAT VALVE SPRING 2 | ₹ 110 | 8 | ||
| 4 | BR5E21130000 | SPRING VALVE INNER | ₹ 185 | 8 | ||
| 5 | 2MSE21170000 | RETAINER VALVE SPRING | ₹ 180 | 8 | ||
| 6 | 3S0E21180000 | COTTER VALVE | ₹ 10 | 16 | ||
| 7 | 1PAE21190000 | SEAL VALVE STEM | ₹ 21 | 8 | ||
| 8A | 1HX12168F000 | PAD ADJUSTING 2 (1.50) | ₹ 247 | 8 | ||
| 8B | 1HX12168H100 | PAD ADJUSTING 2 (1.55MM) | ₹ 247 | 8 | ||
| 8C | 1HX12168K100 | PAD, ADJUSTING 2 (1.60MM) | ₹ 271 | 8 | ||
| 8D | 1HX12168M100 | PAD ADJUSTING 2 (1.65MM) | ₹ 254 | 8 | ||
| 8E | 1HX12168R100 | PAD ADJUSTING 2 (1.70MM) | ₹ 254 | 8 | ||
| 8F | 1HX12168U100 | PAD ADJUSTING 2 (1.75MM) | ₹ 254 | 8 | ||
| 8G | 1HX12168W100 | PAD ADJUSTING 2 (1.80MM) | ₹ 254 | 8 | ||
| 8H | 1HX12168Y100 | PAD ADJUSTING 2 (1.85) | ₹ 294 | 8 | ||
| 8I | 1HX121691100 | PAD ADJUSTING 2 (1.90MM) | ₹ 294 | 8 | ||
| 8J | 1HX121693100 | PAD ADJUSTING 2 (1.95MM) | ₹ 294 | 8 | ||
| 8K | 1HX121695000 | PAD ADJUSTING 2 (2.00MM) | ₹ 294 | 8 | ||
| 8L | 1HX121697000 | PAD ADJUSTING 2 (2.05MM) | ₹ 294 | 8 | ||
| 8M | 1HX121699000 | PAD ADJUSTING 2 (2.10MM) | ₹ 294 | 8 | ||
| 8N | 1HX12169E000 | PAD ADJUSTING 2 (2.15MM) | ₹ 294 | 8 | ||
| 8P | 1HX12169G000 | PAD ADJUSTING 2 (2.20MM) | ₹ 345 | 8 | ||
| 8Q | 1HX12169J000 | PAD ADJUSTING 2 (2.25MM) | ₹ 345 | 8 | ||
| 8R | 1HX12169L000 | PAD ADJUSTING 2 (2.30MM) | ₹ 345 | 8 | ||
| 8S | 1HX12169N000 | PAD ADJUSTING 2 (2.35MM) | ₹ 345 | 8 | ||
| 8T | 1HX12169T000 | PAD ADJUSTING 2 (2.40MM) | ₹ 294 | 8 | ||
| 9 | 2MSE21531100 | LIFTER VALVE | ₹ 730 | 8 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.

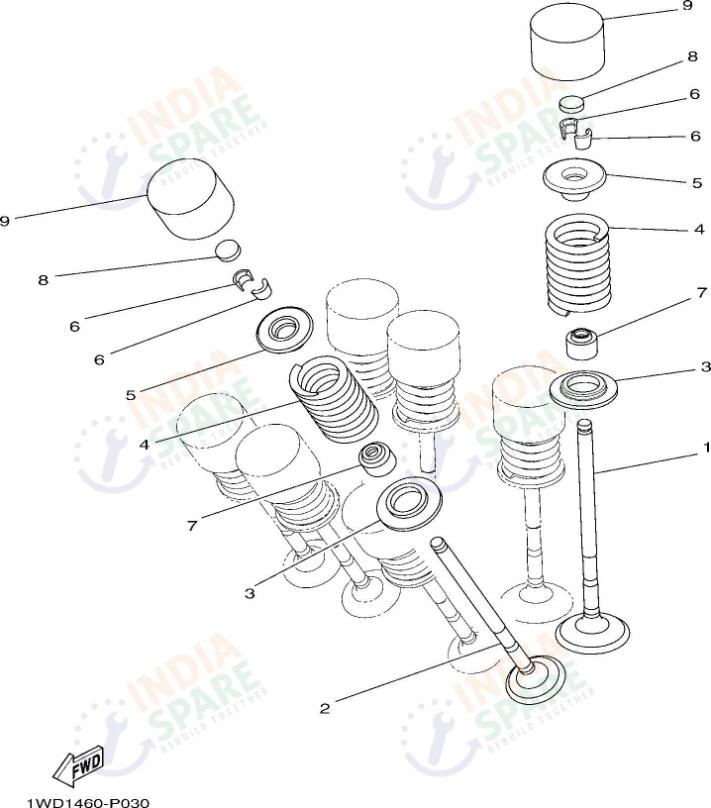

Description: - YAMAHA 2YS1 R3 Series VALVE
