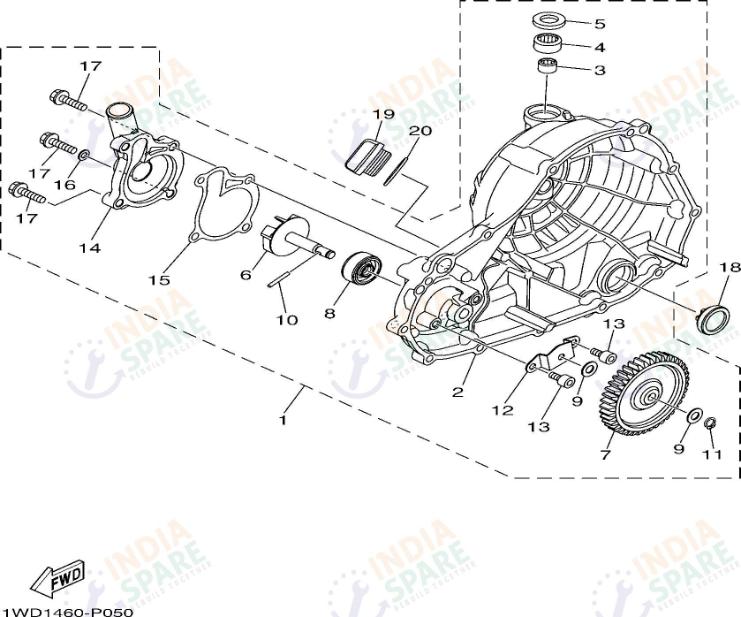

WATER PUMP
0
2YS1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1WDE24200000 | WATER PUMP ASSY | ₹ 6925 | 1 | ||
| 2 | 1WDE54210000 | COVER CRANKCASE 2 | ₹ 5610 | 1 | ||
| 3 | 933171109600 | BEARING | ₹ 292 | 1 | ||
| 4 | 933152157000 | BEARING | ₹ 292 | 1 | ||
| 5 | 931021580100 | OIL SEAL | ₹ 30 | 1 | ||
| 6 | 1WDE24500000 | IMPELLER SHAFT ASSY | ₹ 282 | 1 | ||
| 7 | 1WDE24530000 | GEAR | ₹ 432 | 1 | ||
| 8 | 33SE22230000 | SEAL | ₹ 1375 | 1 | ||
| 9 | 33SE24560000 | WASHER | ₹ 25 | 2 | ||
| 10 | 1WDE319L0000 | PIN, STRAIGHT | ₹ 34 | 1 | ||
| 11 | 990090840000 | CIRCLIP | ₹ 20 | 1 | ||
| 12 | 1WDE26810000 | PLATE | ₹ 71 | 1 | ||
| 13 | 913170601000 | BOLT | ₹ 35 | 2 | ||
| 14 | 1WDE24220000 | COVER, HOUSING | ₹ 560 | 1 | ||
| 15 | 1WDE24280000 | GASKET HOUSING COVER 2 | ₹ 55 | 1 | ||
| 16 | 904300681700 | GASKET | ₹ 8 | 1 | ||
| 17 | 950220602500 | BOLT FLANGE | ₹ 11 | 3 | ||
| 18 | 2H7153610000 | GAUGE, LEVEL | ₹ 425 | 1 | ||
| 19 | 1WDE53620000 | PLUG OIL LEVEL | ₹ 64 | 1 | ||
| 20 | 932102780700 | O-RING | ₹ 7 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 2YS1 R3 Series WATER PUMP
