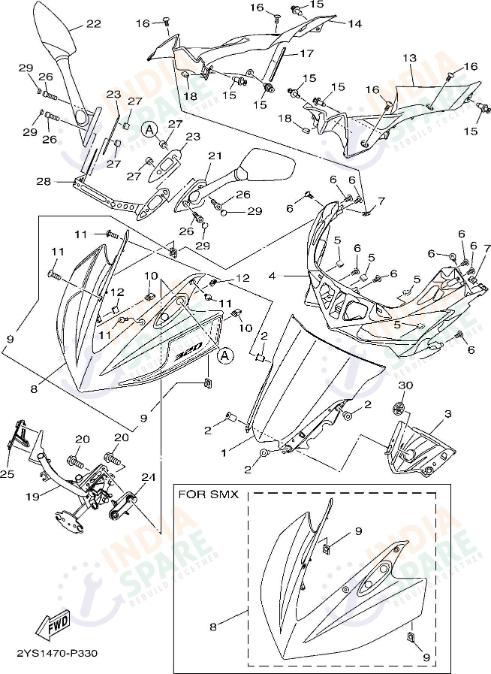

WIND SHIELD
0
2YS1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1WDF83810000 | WINDSHIELD | ₹ 1220 | 1 | ||
| 2 | 901790580400 | NUT | ₹ 10 | 4 | ||
| 3 | 1WDH35590000 | COVER, METER | ₹ 100 | 1 | ||
| 4 | 1WDF835G0000 | BODY, FRONT UPPER 1 | ₹ 380 | 1 | ||
| 5 | 1WDF83760000 | TRIM | ₹ 17 | 4 | ||
| 6 | 977025001600 | SCREW TAPPING | ₹ 10 | 9 | ||
| 7 | 90183050A700 | NUT SPRING | ₹ 22 | 2 | ||

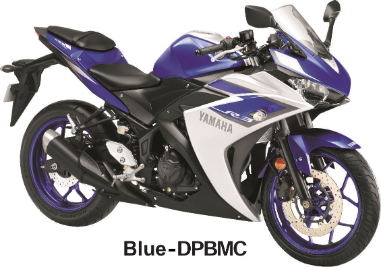

| 8A | 1WDXF83F40P1 | BODY COWLING SUB ASSY-DPBMC(BL | ₹ 1705 | 1 | FOR DPBMC | |

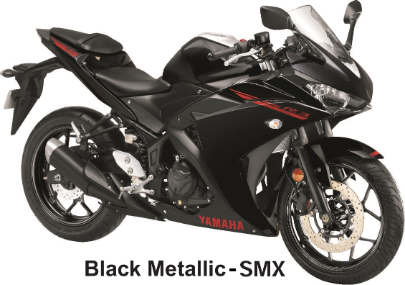

| 8B | 1WDXF83F10P0 | BODY COWLING SUB ASSY-SMX(BLAC | ₹ 1705 | 1 | FOR SMX | |
| 9 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 10 | 44DF83790000 | HOOK | ₹ 17 | 2 | ||
| 11 | 901500502400 | SCREW ROUND HEAD | ₹ 59 | 4 | ||
| 12 | 1WDF83760000 | TRIM | ₹ 17 | 2 | ||
| 13 | 1WDF836N0000 | PANEL, INNER 4 | ₹ 250 | 1 | ||
| 14 | 1WDF836R0000 | PANEL, INNER 5 | ₹ 250 | 1 | ||
| 15 | 902690608100 | RIVET | ₹ 39 | 6 | ||
| 16 | 901110500300 | BOLT HEX. SOCKET BUTTON | ₹ 30 | 4 | ||
| 17 | 1WDF12780000 | MOLD | ₹ 21 | 1 | ||
| 18 | 1WDF83760000 | TRIM | ₹ 17 | 2 | ||
| 19 | 1WDF83560000 | STAY 1 | ₹ 960 | 1 | ||
| 20 | 958120803500 | BOLT FLANGE | ₹ 26 | 2 | ||
| 21 | 1WDF62801000 | REAR VIEW MIRROR ASSY (LEFT) | ₹ 2190 | 1 | ||
| 22 | 1WDF62901000 | REAR VIEW MIRROR ASSY (RIGHT) | ₹ 2190 | 1 | ||
| 23 | 1WDF84830000 | PLATE RUBBER 1 | ₹ 32 | 2 | ||
| 24 | 1WDF84840000 | PLATE RUBBER 2 | ₹ 51 | 1 | ||
| 25 | 1WDF84850000 | PLATE, RUBBER 3 | ₹ 51 | 1 | ||
| 26 | 913170602500 | BOLT | ₹ 11 | 4 | ||
| 27 | 90387068C200 | COLLAR | ₹ 8 | 4 | ||
| 28 | 1WDF16850000 | BRACKET LICENSE | ₹ 140 | 1 | ||
| 29 | 20PF34690000 | CAP BOLT | ₹ 2 | 4 | ||
| 30 | 1PAF836B0100 | TUNING FORK MARK | ₹ 140 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 2YS1 R3 Series WIND SHIELD
