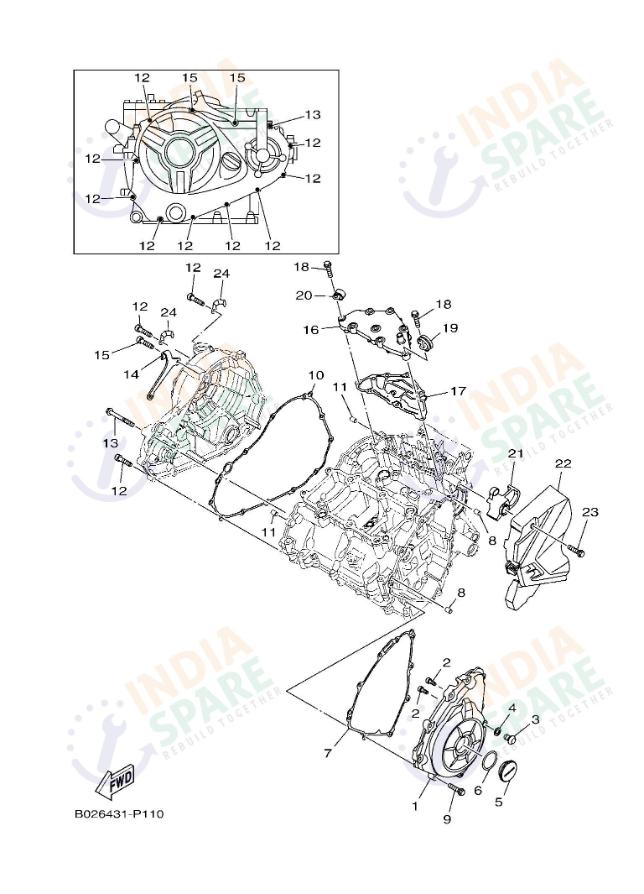

CRANKCASE COVER 1
0
2YS3
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1WDE54110000 | COVER CRANKCASE 1 | ₹ 1051 | 1 | ||
| 2 | 913170501200 | BOLT SOCKET | ₹ 43 | 2 | ||
| 3 | 920140801200 | BOLT, BUTTON HEAD | ₹ 40 | 1 | ||
| 4 | 904300814300 | GASKET | ₹ 63 | 1 | ||
| 5 | 903403281900 | PLUG STRAIGHT SCREW | ₹ 115 | 1 | ||
| 6 | 932103281600 | O-RING | ₹ 9 | 1 | ||
| 7 | 1WDE54510000 | GASKET, CRANKCASE COVER 1 | ₹ 73 | 1 | ||
| 8 | 995300801200 | PIN DOWEL | ₹ 26 | 2 | ||
| 9 | 950220602500 | BOLT FLANGE | ₹ 11 | 9 | ||
| 10 | 1WDE54610000 | GASKET CRANKCASE COVER 2 | ₹ 665 | 1 | ||
| 11 | 995300801200 | PIN DOWEL | ₹ 26 | 2 | ||
| 12 | 950220602500 | BOLT FLANGE | ₹ 11 | 9 | ||
| 13 | 950220605000 | BOLT FLANGE | ₹ 17 | 1 | ||
| 14 | 2MSE54410000 | HOLDER, CLUTCH CABLE | ₹ 290 | 1 | ||
| 15 | 913120602500 | BOLT | ₹ 7 | 2 | ||
| 16 | 1WDE54131000 | COVER CARBURETOR | ₹ 690 | 1 | ||
| 17 | 1WDE54620000 | GASKET CRANKCASE COVER 3 | ₹ 98 | 1 | ||
| 18 | 950220602500 | BOLT FLANGE | ₹ 11 | 8 | ||
| 19 | 904620881200 | CLAMP | ₹ 16 | 1 | ||
| 20 | 904620880600 | CLAMP | ₹ 17 | 1 | ||
| 21 | BS7E53770000 | GUIDE, INLET | ₹ 150 | 1 | ||
| 22 | 1WDE54180000 | COVER CHAIN CASE | ₹ 240 | 1 | ||
| 23 | 950220602500 | BOLT FLANGE | ₹ 11 | 2 | ||
| 24 | 904620822500 | CLAMP | ₹ 111 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 2YS3 R3 Series CRANKCASE COVER 1
