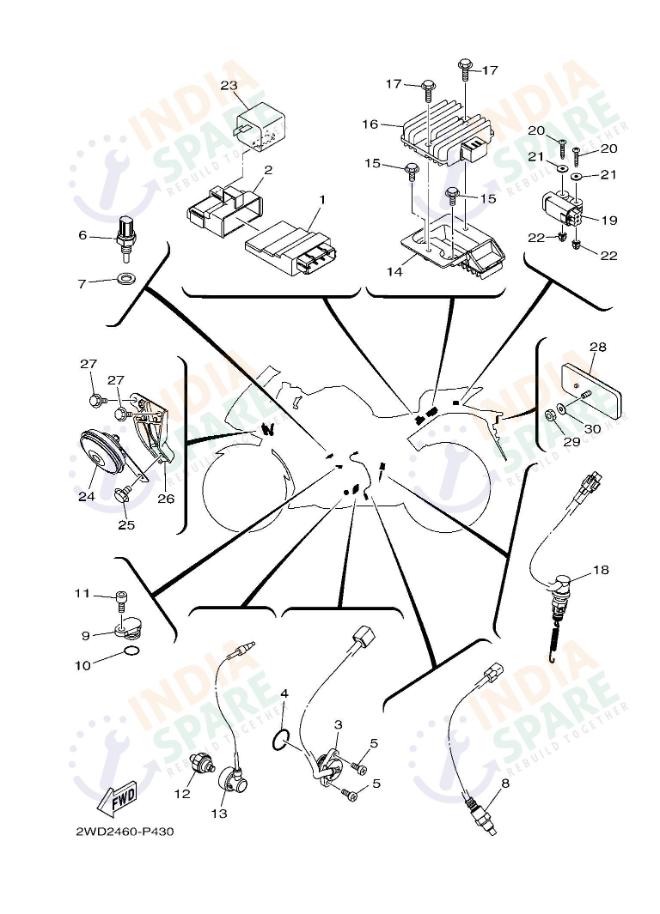

ELECTRICAL 2
0
2YS3
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B02H591A1000 | ENGINE CONTROL UNIT ASSY | ₹ 13524 | 1 | ||
| 2 | 1WDH55460000 | BAND | ₹ 150 | 1 | ||
| 3 | 1WDH25400000 | NEUTRAL SWITCH ASSY | ₹ 805 | 1 | ||
| 4 | 932102180100 | O-RING | ₹ 11 | 1 | ||
| 5 | 985070501600 | SCREW, PAN HEAD | ₹ 16 | 2 | ||
| 6 | 52BH35910000 | THERMO UNIT | ₹ 430 | 1 | ||
| 7 | 904301080400 | GASKET | ₹ 70 | 1 | ||
| 8 | 1WDH592A0000 | 1WDH592A0000 | ₹ 0 | 1 | ||
| 9 | 2WDE51890000 | PLUG | ₹ 182 | 1 | ||
| 10 | 932101556600 | O-RING | ₹ 37 | 1 | ||
| 11 | 913170601600 | BOLT HEX.SOCKET HD | ₹ 9 | 1 | ||
| 12 | 1WS825040000 | OIL PRESSURE SWITCH ASSY | ₹ 2035 | 1 | ||
| 13 | 1WDH13150200 | LEAD WIRE ASSY | ₹ 210 | 1 | ||
| 14 | 1WDH19610000 | COVER | ₹ 830 | 1 | ||
| 15 | 958020601600 | BOLT FLANGE | ₹ 19 | 2 | ||
| 16 | 1WDH19600000 | RECTIFIER REGULATOR ASSY | ₹ 2550 | 1 | ||
| 17 | 958020602500 | BOLT FLANGE | ₹ 6 | 2 | ||
| 18 | 1WDH25301000 | STOP SWITCH ASSY | ₹ 672 | 1 | ||
| 19 | 1WDH25760000 | SENSOR LEAN ANGLE | ₹ 1810 | 1 | ||
| 20 | 901600400900 | SCREW ROUND TAPPING | ₹ 14 | 2 | ||
| 21 | 902010402800 | WASHER, PLATE | ₹ 15 | 2 | ||
| 22 | 4B4843340000 | NUT ADJUSTING | ₹ 12 | 2 | ||
| 23 | 2WDH33510000 | RELAY, FLASHER | ₹ 220 | 1 | ||
| 24 | 2YSH33710!00 | 2YSH33710!00 | ₹ 0 | 1 | ||
| 25 | 958070801200 | BOLT FLANGE | ₹ 5 | 1 | ||
| 26 | 1WDH33780000 | STAY HORN | ₹ 410 | 1 | ||
| 27 | 958070601600 | BOLT FLANGE | ₹ 3 | 2 | ||
| 28 | 5USH51100100 | REFLECTOR ASSY | ₹ 16 | 1 | ||
| 29 | 956020510000 | NUT, U FLANGE | ₹ 5 | 1 | ||
| 30 | 902010504300 | WASHER, PLATE | ₹ 30 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 2YS3 R3 Series ELECTRICAL 2
