EXHAUST
0
2YS3
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2MSE46020000 | EXHAUST PIPE COMP. | ₹ 38165 | 1 | ||
| 2 | 1WDE473L0000 | BRACKET 3 | ₹ 570 | 1 | ||
| 3 | 950270601000 | BOLT FLANGE | ₹ 2 | 2 | ||
| 4 | 5TPE47470000 | DAMPER MUFFLER | ₹ 21 | 1 | ||
| 5 | 1WDE47750000 | NUT | ₹ 340 | 1 | ||
| 6 | 2MSE47100000 | MUFFLER ASSY 1 | ₹ 26310 | 1 | ||
| 7 | 1WDE47580000 | PROTECTER SILENCER | ₹ 550 | 1 | ||
| 8 | 901110680200 | BOLT,HEX. SOCKET BUTTON | ₹ 15 | 2 | ||
| 9 | 901830681800 | NUT SPRING | ₹ 23 | 1 | ||
| 10 | 1WDE47280000 | PROTECTOR MUFFLER 2 | ₹ 433 | 1 | ||
| 11 | 904801258100 | GROMMET | ₹ 20 | 1 | ||
| 12 | 90387087L000 | COLLAR | ₹ 115 | 1 | ||
| 13 | 901110684700 | BOLT,HEX. SOCKET BUTTON | ₹ 40 | 1 | ||
| 14 | 1WDE47630000 | SPACER | ₹ 175 | 1 | ||
| 15 | 54DE47140000 | GASKET, MUFFLER | ₹ 81 | 1 | ||
| 16 | 1WDE47150000 | BAND, MUFFLER | ₹ 315 | 1 | ||
| 17 | 950270803500 | BOLT, FLANGE | ₹ 52 | 1 | ||
| 18 | 90387068N400 | COLLAR | ₹ 67 | 1 | ||
| 19 | 902010608800 | WASHER PLATE | ₹ 10 | 1 | ||
| 20 | 901830607100 | NUT SPRING | ₹ 14 | 1 | ||
| 21 | 1WDE46130000 | GASKET, EXHAUST PIPE | ₹ 112 | 2 | ||
| 22 | 957070850000 | NUT FLANGE | ₹ 6 | 4 | ||
| 23 | 90105088G700 | BOLT FLANGE | ₹ 20 | 2 | ||
| 24 | 902010861200 | WASHER SPECIAL | ₹ 8 | 2 | ||
| 25 | 958170803000 | BOLT FLANGE | ₹ 54 | 1 | ||
| 26 | 90201087F000 | WASHER PLATE | ₹ 20 | 1 | ||
| 27 | 1WDE46280000 | PROTECTOR EXHAUST PIPE | ₹ 889 | 1 | ||
| 28 | 904801258100 | GROMMET | ₹ 20 | 3 | ||
| 29 | 90387087L000 | COLLAR | ₹ 115 | 3 | ||
| 30 | 901110615200 | BOLT HEX. SOCKET BUTTON | ₹ 30 | 3 | ||
| 31 | 956020820000 | NUT U FLANGE | ₹ 11 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.

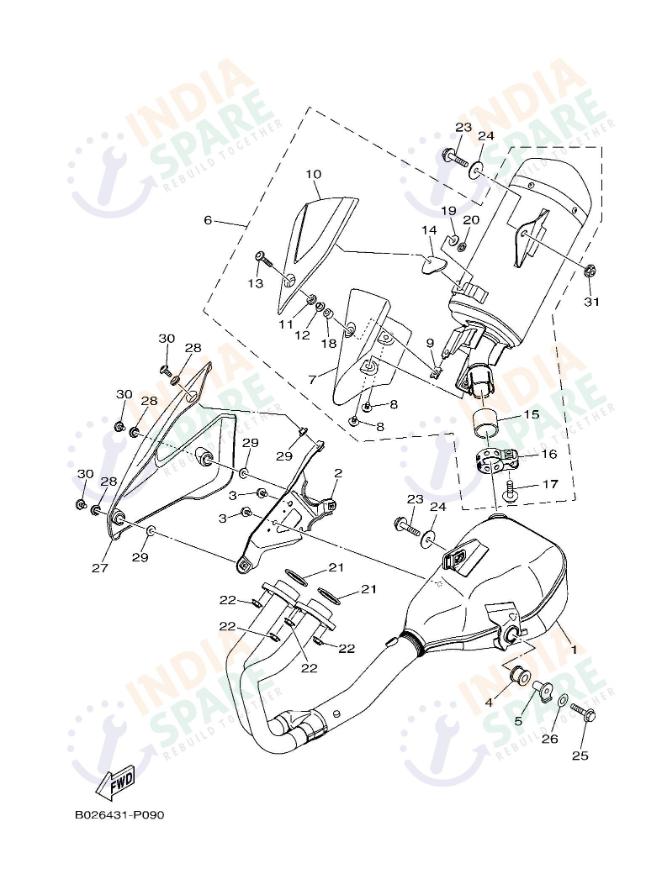

Description: - YAMAHA 2YS3 R3 Series EXHAUST
