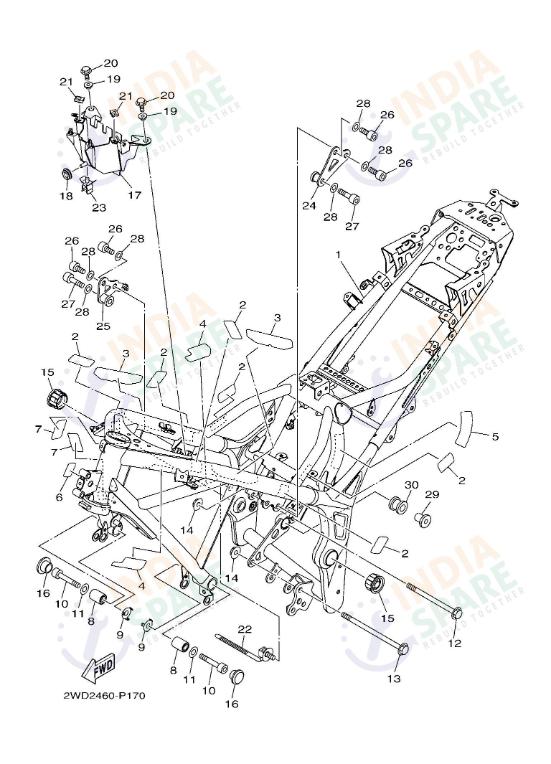

FRAME
0
2YS3
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1WDF11101300 | FRAME COMP. | ₹ 61100 | 1 | ||
| 2 | 1WDF113B0000 | DAMPER | ₹ 41 | 6 | ||
| 3 | 1WDF112C0000 | DAMPER 2 | ₹ 71 | 2 | ||
| 4 | 1WDF117G0000 | PROTECTOR | ₹ 90 | 2 | ||
| 5 | 1WDF16520000 | PROTECTOR | ₹ 80 | 1 | ||
| 6 | 1WDF193A0000 | PROTECTOR | ₹ 44 | 1 | ||
| 7 | 5D9F414G0000 | SEAL | ₹ 40 | 2 | ||
| 8 | 903881081600 | DAMPER | ₹ 160 | 2 | ||
| 9 | 1WDF191B0000 | PLATE 1 | ₹ 190 | 2 | ||
| 10 | 913171006000 | BOLT | ₹ 176 | 2 | ||
| 11 | 929021020000 | WASHER PLATE | ₹ 22 | 2 | ||
| 12 | 901051088900 | BOLT, FLANGE | ₹ 100 | 1 | ||
| 13 | 901051089100 | BOLT FLANGE | ₹ 110 | 1 | ||
| 14 | 901791080500 | NUT | ₹ 53 | 2 | ||
| 15 | 1WDF135F0000 | COVER | ₹ 45 | 2 | ||
| 16 | 903382380100 | PLUG | ₹ 27 | 2 | ||
| 17 | 1WDF11710000 | BOX | ₹ 195 | 1 | ||
| 18 | 904801339800 | GROMMET | ₹ 10 | 1 | ||
| 19 | 903870781900 | COLLAR | ₹ 11 | 2 | ||
| 20 | 950220601400 | BOLT FLANGE | ₹ 12 | 2 | ||
| 21 | 901830681800 | NUT SPRING | ₹ 23 | 2 | ||
| 22 | 904643000900 | CLAMP | ₹ 95 | 1 | ||
| 23 | 904641201500 | CLAMP | ₹ 28 | 1 | ||
| 24 | 1WDF122A0000 | STAY 1 | ₹ 150 | 1 | ||
| 25 | 1WDF122B0000 | STAY 2 | ₹ 150 | 1 | ||
| 26 | 913171002000 | BOLT | ₹ 70 | 4 | ||
| 27 | 913171004500 | BOLT | ₹ 108 | 2 | ||
| 28 | 929071060000 | WASHER | ₹ 10 | 6 | ||
| 29 | 903870883000 | COLLAR | ₹ 64 | 1 | ||
| 30 | 5TPE47470000 | DAMPER MUFFLER | ₹ 21 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 2YS3 R3 Series FRAME
