FRONT MASTER CYLINDER
0
2YS3
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1WDF58700000 | MASTER CYLINDER SUB ASSY | ₹ 2080 | 1 | ||
| 2 | 1WDF58070000 | CYLINDER SET MAST | ₹ 630 | 1 | ||
| 3 | 5RB258540000 | DIAPHRAGM, RESERVOIR | ₹ 121 | 1 | ||
| 4 | 1WDF58520000 | CAP, RESERVOIR | ₹ 130 | 1 | ||
| 5 | 36Y2589H1000 | SCREW | ₹ 10 | 2 | ||
| 6 | 56A258670000 | BRACKET, MASTER CYLINDER | ₹ 523 | 1 | ||
| 7 | 3C1F58550000 | BUSH,DIAPHRAGM | ₹ 10 | 1 | ||
| 8 | 1WDH39220000 | LEVER 2 | ₹ 325 | 1 | ||
| 9 | 956170610000 | NUT NYLOC | ₹ 76 | 1 | ||
| 10 | 901090657700 | BOLT | ₹ 34 | 1 | ||
| 11 | 1HP839800300 | FRONT STOP SWITCH ASSY | ₹ 2153 | 1 | ||
| 12 | 976020421200 | SCREW, PAN HEAD WI | ₹ 12 | 1 | ||
| 13 | 901050686800 | BOLT FLANGE | ₹ 6 | 2 | ||
| 14 | 903380980300 | PLUG | ₹ 5 | 1 | ||
| 15 | 958120601200 | BOLT, FLANGE | ₹ 3 | 1 | ||
| 16 | 2WDF588F0000 | HOLDER, BRAKE HOSE 5 | ₹ 133 | 1 | ||
| 17 | 950220602000 | BOLT FLANGE | ₹ 15 | 1 | ||
| 18 | 2WDF58720000 | HOSE BRAKE 1 | ₹ 3577 | 1 | ||
| 19 | 904011081200 | BOLT, UNION | ₹ 32 | 1 | ||
| 20 | 902011011800 | WASHER PLAIN | ₹ 5 | 2 | ||
| 21 | 950220602000 | BOLT FLANGE | ₹ 15 | 1 | ||
| 22 | 2WDF581J0100 | HOSE, BRAKE 4 | ₹ 3711 | 1 | ||
| 23 | 2WDF58760000 | HOLDER, BRAKE HOSE 2 | ₹ 148 | 1 | ||
| 24 | 904641201300 | CLAMP | ₹ 120 | 1 | ||
| 25 | 34B247850000 | MOLD SEAT | ₹ 120 | 1 | ||
| 26 | 904011081200 | BOLT, UNION | ₹ 32 | 1 | ||
| 27 | 902011011800 | WASHER PLAIN | ₹ 5 | 2 | ||
| 28 | 2WDF58730000 | HOSE BRAKE 2 | ₹ 3212 | 1 | ||
| 29 | 904011081200 | BOLT, UNION | ₹ 32 | 2 | ||
| 30 | 902011011800 | WASHER PLAIN | ₹ 5 | 4 | ||
| 31 | 2WDF58740000 | HOSE BRAKE | ₹ 3257 | 1 | ||
| 32 | 904011081200 | BOLT, UNION | ₹ 32 | 2 | ||
| 33 | 902011011800 | WASHER PLAIN | ₹ 5 | 4 | ||
| 34 | 2WDF588G0000 | HOLDER, BRAKE HOSE 6 | ₹ 291 | 1 | ||
| 35 | 950220601200 | BOLT FLANGE | ₹ 8 | 2 | ||
| 36 | 950220601200 | BOLT FLANGE | ₹ 8 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.

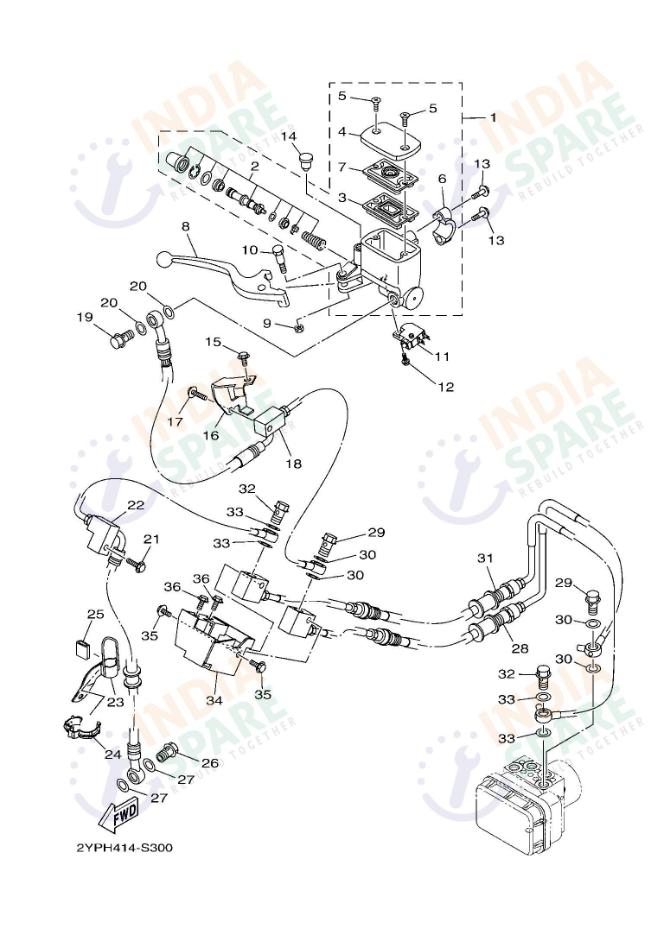

Description: - YAMAHA 2YS3 R3 Series FRONT MASTER CYLINDER
