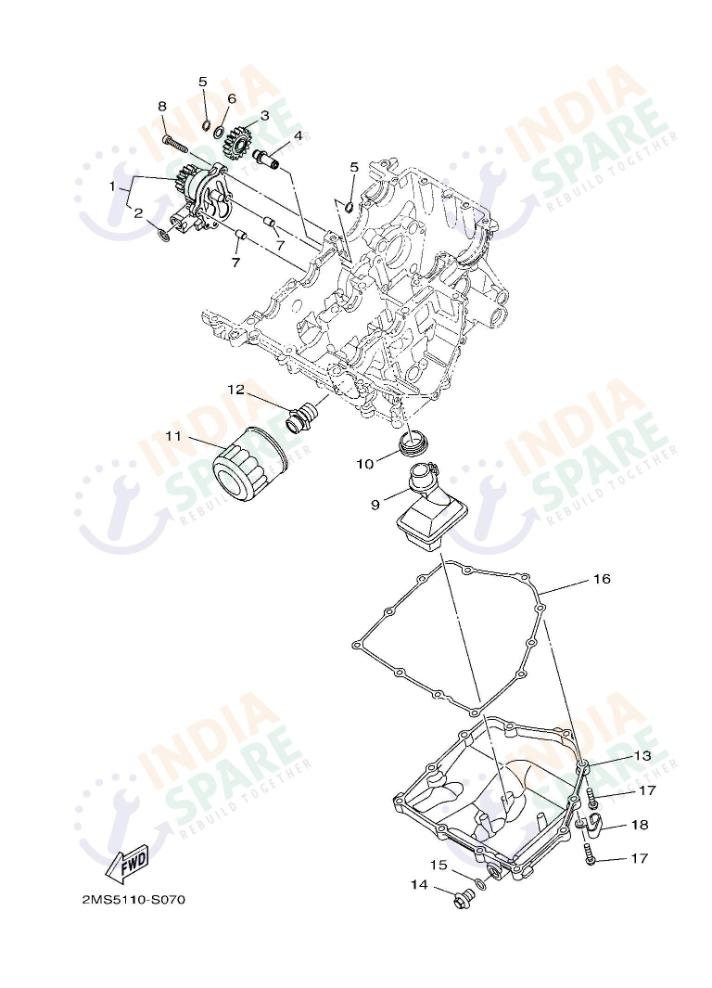

OIL PUMP
0
2YS3
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1WDE33000100 | OIL PUMP ASSY | ₹ 2082 | 1 | ||
| 2 | 990091550000 | CIRCLIP | ₹ 58 | 1 | ||
| 3 | 1WDE33410000 | GEAR OIL PUMP IDLE | ₹ 395 | 1 | ||
| 4 | 1WDE33420000 | SHAFT, IDLE GEAR | ₹ 275 | 1 | ||
| 5 | 990091040000 | CIRCLIP | ₹ 6 | 2 | ||
| 6 | 902011011900 | WASHER, PLATE | ₹ 88 | 1 | ||
| 7 | 995300801200 | PIN DOWEL | ₹ 26 | 2 | ||
| 8 | 913170603000 | BOLT | ₹ 15 | 4 | ||
| 9 | 1WDE34100000 | STRAINER HOUSING ASSY | ₹ 305 | 1 | ||
| 10 | 1WDE34150000 | SEAL, OIL STRAINER | ₹ 50 | 1 | ||
| 11 | 1WDE34402000 | ELEMENT ASSY, OIL CLEANER | ₹ 480 | 1 | ||
| 12 | 904012000800 | BOLT, UNION | ₹ 390 | 1 | ||
| 13 | 1WDE34170100 | COVER, STRAINER | ₹ 4270 | 1 | ||
| 14 | 903401280800 | PLUG STRAIGHT SCREW | ₹ 14 | 1 | ||
| 15 | 4YSE11980000 | GASKET | ₹ 18 | 1 | ||
| 16 | 1WDE34140000 | GASKET, STRAINER COVER | ₹ 157 | 1 | ||
| 17 | 950220602500 | BOLT FLANGE | ₹ 11 | 11 | ||
| 18 | 904620881000 | CLAMP | ₹ 15 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 2YS3 R3 Series OIL PUMP
