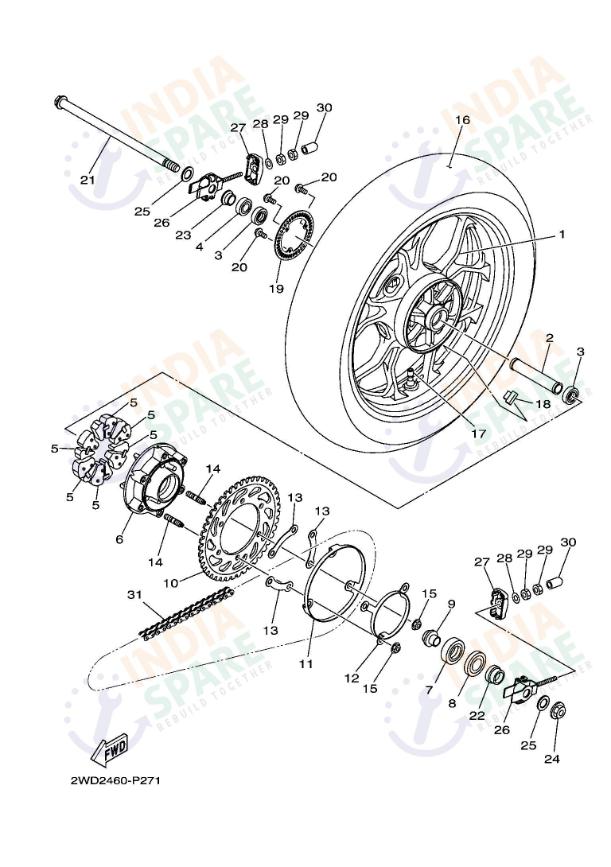

REAR WHEEL

Ref No	Part No	Part Name	Rate	Qnty	Order	Remarks
1A	2WDF533803P0	CAST WHEEL REAR DPBMC	₹ 11640	1		FOR DPBMC
1B	2WDF5338030X	CAST WHEEL REAR MBL2	₹ 0	1		FOR MBL2
2	903871781000	COLLAR	₹ 303	1
3	933062031400	BEARING	₹ 964	2
4	931062300200	OIL SEAL	₹ 163	1
5	1WDF53640000	DAMPER	₹ 70	6
6A	1WDF53660098	CLUTCH, HUB-LGB(LOW GLOSS BLAC	₹ 940	1		FOR DPBMC
6B	1WDF536601P0	CLUTCH, HUB	₹ 2300	1		FOR MBL2
7	933063045000	BEARING	₹ 2338	1
8	931063804600	OIL SEAL	₹ 398	1
9	1WDF53770000	COLLAR, WHEEL	₹ 130	1
10	1WDF54430000	1WDF54430000	₹ 0	1
11	1WDF537W0000	BRACKET 1	₹ 1020	1
12	1WDF537X0000	BRKT 2	₹ 940	1
13	1WDF539F0000	PLATE 1	₹ 25	3
14	901161006500	BOLT, STUD	₹ 170	6
15	956021020000	NUT U FLANGE	₹ 32	6
16	941141780500	941141780500	₹ 0	1
17	939000082800	VALVE, RIM (TR412)	₹ 200	1
18A	5MT253980000	BALANCER, WHEEL	₹ 150	1
18B	5MT253981000	BALANCER, WHEEL(10G)	₹ 160	1
18C	5MT253982000	BALANCER, WHEEL(30G)	₹ 170	1
19	2DPF517G0000	ROTOR SENSOR	₹ 296	1
20	901490503000	SCREW	₹ 21	3
21	1WD253810000	AXLE WHEEL	₹ 1350	1
22	1WDF53860000	COLLAR, SPROCKET AXLE	₹ 180	1
23	1WDF53830000	COLLAR WHEEL	₹ 100	1
24	956021620000	NUT U FLANGE	₹ 299	1
25	902011780900	WASHER PLATE	₹ 16	2
26	1WDF53880000	PULLER, CHAIN 1	₹ 190	2
27	1WDF21740000	END 1	₹ 130	2
28	929070860000	WASHER	₹ 8	2
29	9530N0860000	NUT HEX	₹ 5	4
30	40DE443G0000	PIPE, DRAIN 2	₹ 20	2
31	94568H311200	94568H311200	₹ 0	1

Color Legend:

• Red: Canceled part - unavailable for any operations.
• Blue: Part of a kit - cannot be ordered individually.
• Gray (Dimmed): Disabled part - non-interactive for various reasons.
• Part Number : Superseded part - replaced by a newer part.

Description: - YAMAHA 2YS3 R3 Series REAR WHEEL
