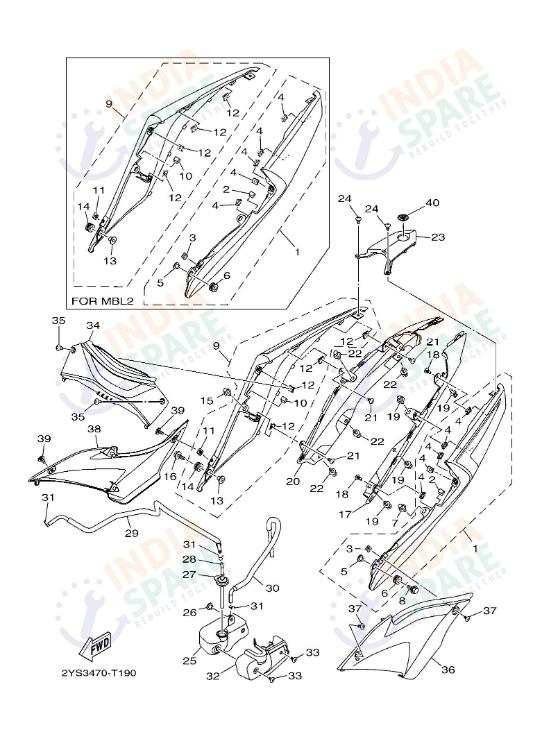

SIDE COVER
0
2YS3
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1A | 1WDXF17100P5 | SIDE COVER ASSY 1 -MS1(MAT SIL | ₹ 882 | 1 | FOR DPBMC | |
| 1B | 1WDXF17100P6 | SIDE COVER ASSY 1 -MBL2(MAT BL | ₹ 882 | 1 | FOR MBL2 | |
| 2 | 31BF83070000 | SEAL | ₹ 9 | 1 | ||
| 3 | 90183050A700 | NUT SPRING | ₹ 22 | 1 | ||
| 4 | 901830580700 | NUT SPRING | ₹ 9 | 5 | ||
| 5 | 903870689900 | COLLAR | ₹ 33 | 1 | ||
| 6 | 904801280800 | GROMMET | ₹ 10 | 1 | ||
| 7 | 902690608100 | RIVET | ₹ 39 | 1 | ||
| 8 | 901190609600 | BOLT, WITH WASHER | ₹ 21 | 1 | ||
| 9A | 1WDXF17200P5 | SIDE COVER ASSY 2 -MS1(MAT SIL | ₹ 882 | 1 | FOR DPBMC | |
| 9B | 1WDXF17200P6 | SIDE COVER ASSY 2 -MBL2(MAT BL | ₹ 882 | 1 | FOR MBL2 | |
| 10 | 31BF83070000 | SEAL | ₹ 9 | 1 | ||
| 11 | 90183050A700 | NUT SPRING | ₹ 22 | 1 | ||
| 12 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 13 | 903870689900 | COLLAR | ₹ 33 | 1 | ||
| 14 | 904801280800 | GROMMET | ₹ 10 | 1 | ||
| 15 | 902690608100 | RIVET | ₹ 39 | 1 | ||
| 16 | 901190609600 | BOLT, WITH WASHER | ₹ 21 | 1 | ||
| 17 | 1WDF171L0000 | MOLE, SIDE COVER 1 | ₹ 80 | 1 | ||
| 18 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 19 | 902690608100 | RIVET | ₹ 39 | 4 | ||
| 20 | 1WDF171M0000 | MOLE, SIDE COVER 2 | ₹ 80 | 1 | ||
| 21 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 3 | ||
| 22 | 902690608100 | RIVET | ₹ 39 | 4 | ||
| 23 | 1WDF171N0000 | MOLE, SIDE COVER 3 | ₹ 51 | 1 | ||
| 24 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 25 | 1WDF18710100 | TANK RECOVERY | ₹ 140 | 1 | ||
| 26 | 903870685700 | COLLAR | ₹ 22 | 1 | ||
| 27 | 1WDF18750000 | CAP | ₹ 50 | 1 | ||
| 28 | 3C1F18280000 | ELBOW | ₹ 11 | 1 | ||
| 29 | 1WDF18160200 | PIPE 1 | ₹ 450 | 1 | ||
| 30 | 1WDF18170000 | PIPE 2 | ₹ 93 | 1 | ||
| 31 | 904670800300 | CLIP OIL PIPE | ₹ 8 | 3 | ||
| 32 | 1WDF172W0000 | COVER | ₹ 120 | 1 | ||
| 33 | 901110500300 | BOLT HEX. SOCKET BUTTON | ₹ 30 | 2 | ||
| 34 | 1WDF173100P4 | COVER, SIDE 3 -MBL2(MAT BLACK | ₹ 362 | 1 | ||
| 35 | 901600581000 | SCREW, ROUND TAPPING | ₹ 4 | 2 | ||
| 36 | 1WDF171E0000 | COVER, SIDE 5 | ₹ 130 | 1 | ||
| 37 | 901110500300 | BOLT HEX. SOCKET BUTTON | ₹ 30 | 2 | ||
| 38 | 1WDF171X0000 | COVER, SIDE 6 | ₹ 130 | 1 | ||
| 39 | 901110500300 | BOLT HEX. SOCKET BUTTON | ₹ 30 | 2 | ||
| 40 | 1PAF836B0100 | TUNING FORK MARK | ₹ 140 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 2YS3 R3 Series SIDE COVER
