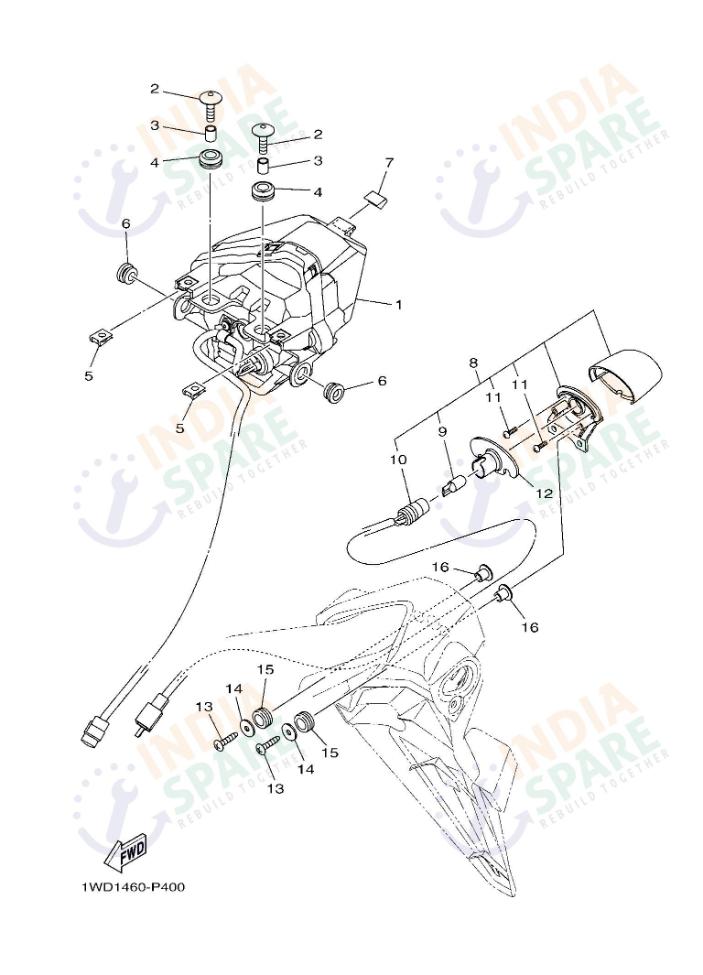

TAILLIGHT
0
2YS3
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1WDH47100100 | TAILLIGHT UNIT ASSY | ₹ 4570 | 1 | ||
| 2 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 3 | 90387067V100 | COLLAR | ₹ 19 | 2 | ||
| 4 | 904801300100 | GROMMET | ₹ 22 | 2 | ||
| 5 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 6 | 904801000300 | GROMMET | ₹ 59 | 2 | ||
| 7 | 1WDF17320000 | SEAL 1 | ₹ 21 | 1 | ||
| 8 | 1WDH47400000 | LICENCE LIGHT ASSY | ₹ 300 | 1 | ||
| 9 | 1WDH47440000 | BULB (12V-5W) | ₹ 220 | 1 | ||
| 10 | 1WDH45470000 | CORD, LICENCE LIGHT | ₹ 180 | 1 | ||
| 11 | 1WDH47260000 | SCREW | ₹ 11 | 2 | ||
| 12 | 1WDH47530000 | DAMPER | ₹ 27 | 1 | ||
| 13 | 977074002000 | SCREW TAPPING | ₹ 330 | 2 | ||
| 14 | 902010480400 | WASHER, PLATE | ₹ 6 | 2 | ||
| 15 | 904801100900 | GROMMET | ₹ 88 | 2 | ||
| 16 | 903870504200 | COLLAR | ₹ 113 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 2YS3 R3 Series TAILLIGHT
