FUEL TANK
36L1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1A | 36LXF4119033 | FUEL TANK ASSY (YB) | ₹ 3201 | 1 | ||
| 1B | 36LF4100009V | 36LF4100009V | ₹ 0 | 1 | ||
| 1C | 36LXF411A0P0 | 36LXF411A0P0 | ₹ 0 | 4 | ||

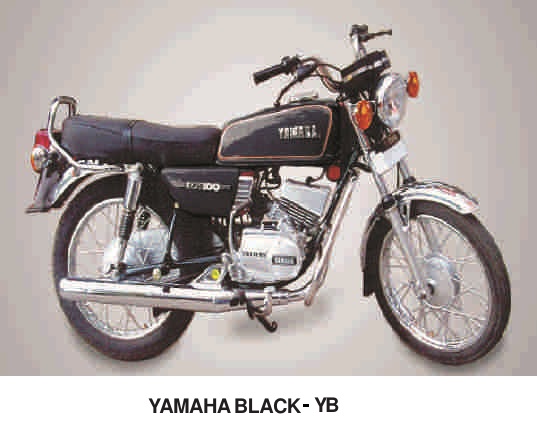

| 1D | 4TLF41006000 | FUEL TANK (BLACK) | ₹ 12910 | 5 | YB | |

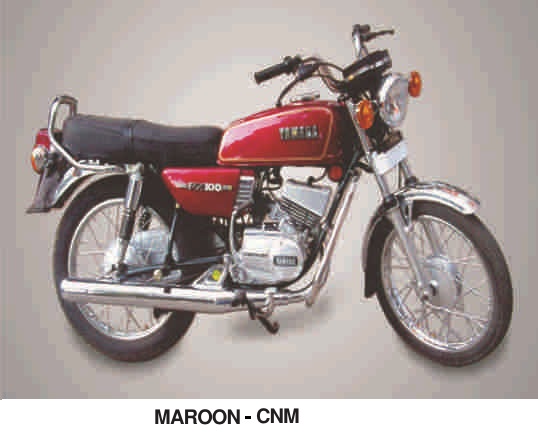

| 1E | 4TLXF41AA0H6 | FUEL TANK UNIT ASSY MAROON -C | ₹ 12910 | 1 | CNM | |
| 2 | 36LF41810000 | DAMPER LOCATION I | ₹ 4 | 2 | ||
| 3 | 36LF41820000 | DAMPER LOCATING 2 | ₹ 28 | 1 | ||
| 4 | 904802518900 | 904802518900 | ₹ 0 | 1 | ||
| 5 | 902010861200 | WASHER SPECIAL | ₹ 8 | 1 | ||
| 6 | 9530N0860000 | NUT HEX | ₹ 5 | 1 | ||
| 7 | 9850N0501000 | SCREW PAN HEAD | ₹ 2 | 2 | ||
| 8 | 9850N0500800 | 9850N0500800 | ₹ 0 | 1 | ||
| 9 | 9760N0621200 | PAN HEAD SCREW | ₹ 3 | 1 | ||
| 10 | 9290N0610000 | WASHER, SPRING | ₹ 1 | 1 | ||
| 11 | 9700N0601200 | BOLT | ₹ 3 | 1 | ||
| 12 | 9290N0510000 | SPRING WASHER 5.5 | ₹ 5 | 1 | ||
| 13 | 36LF45000200 | FUEL COCK | ₹ 250 | 1 | ||
| 14 | 36LF45240000 | LEVER | ₹ 20 | 1 | ||
| 15 | 36LF45180000 | WAVE WASHER | ₹ 3 | 1 | ||
| 16 | 36LF45250000 | 36LF45250000 | ₹ 0 | 1 | ||
| 17 | 36LF45210000 | 36LF45210000 | ₹ 0 | 1 | ||
| 18 | 36LF45230000 | SEAL DISTBURTOR | ₹ 20 | 1 | ||
| 19 | 36LF45310000 | 36LF45310000 | ₹ 0 | 1 | ||
| 20 | 36LF45600000 | FILTER ASSY | ₹ 22 | 1 | ||
| 21 | 901570312200 | 901570312200 | ₹ 0 | 1 | ||
| 22 | 36LF45150000 | 36LF45150000 | ₹ 0 | 1 | ||
| 23 | 36LF45320100 | T-PACKING | ₹ 4 | 1 | ||
| 24 | 36LF4650V100 | CAP ASSY FUEL TANK | ₹ 351 | 1 | ||
| 25 | 36LF41621000 | EMBLEM 2 | ₹ 113 | 1 | ||
| 26 | 901520400600 | SCREW PAN HEAD | ₹ 10 | 2 | ||
| 27 | 36LF41621000 | EMBLEM 2 | ₹ 113 | 1 | ||
| 28 | 901520400600 | SCREW PAN HEAD | ₹ 10 | 2 | ||
| 29 | 904450905900 | HOSE | ₹ 4 | 1 | ||
| 30 | 904670800300 | CLIP OIL PIPE | ₹ 8 | 4 | ||
| 31 | 904450905900 | HOSE | ₹ 4 | 1 | ||
| 32 | 902020480100 | WASHER | ₹ 4 | 1 | ||
| 33 | 2YAF45680000 | BAND FILTER | ₹ 31 | 1 | ||
| 34 | 36LF45600100 | 36LF45600100 | ₹ 0 | 1 | ||
| 36 | 36LF4522V000 | 36LF4522V000 | ₹ 0 | 1 | ||
| 37 | 36LF45760000 | WASHER SPL. | ₹ 3 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Fuel delivery is the lifeblood of your Yamaha RX 100, and the fuel tank assembly is engineered for safety and maximum efficiency on every journey. This specialized catalog features the complete Fuel Tank Assy and the reliable Fuel Cock, ensuring a consistent flow of energy to your legendary engine. Within this selection, you will find the critical Seal Distributor and the T-Packing, which work together to prevent leaks and maintain a perfect seal. Every Hose and specialized Clip included in this assembly is manufactured to maintain a secure connection, even during the intense vibrations of high speed travel on the highway. The robust Damper Locating and specialized Washer Special provide a secure and vibration resistant mounting, protecting the tank from the stresses of the road. By choosing genuine Yamaha fuel system parts, you ensure the reliability and safety of your machine. Trust in original hardware to maintain the performance that defines your riding experience.
