FENDER
45S2
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

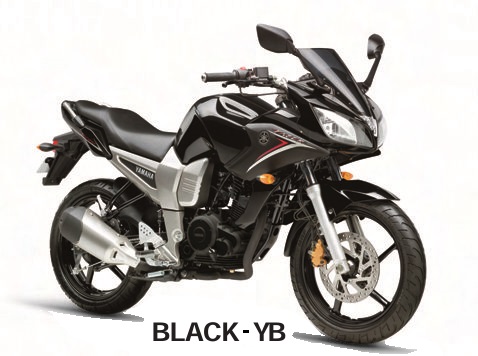

| 1A | 21CF1511000X | FENDER FRONT - YB | ₹ 797 | 1 | FOR YB | |

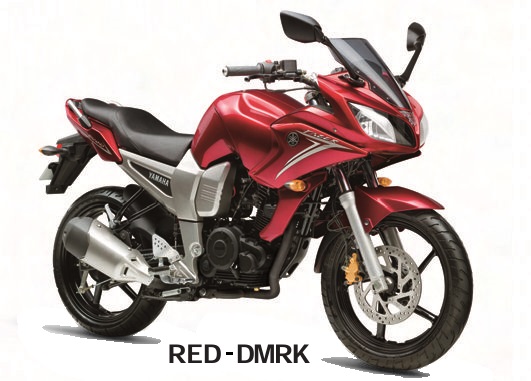

| 1B | 21CF1511001X | FENDER FRONT -DRMK (RED) | ₹ 1166 | 1 | FOR DRMK | |

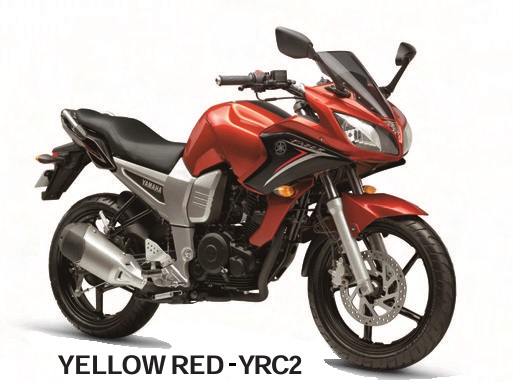

| 1C | 21CF1511002X | FENDER FRONT -YRC2 (ORANGE) | ₹ 788 | 1 | FOR YRC2 | |

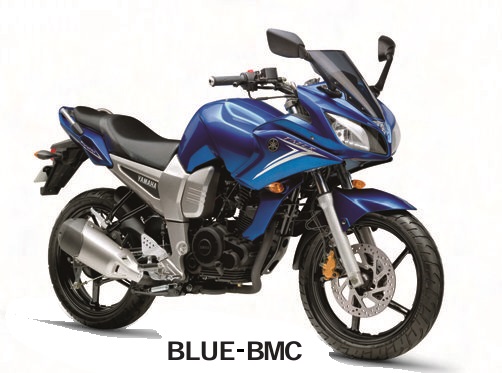

| 1D | 21CXF151505X | FR.FENDER -BLUE | ₹ 702 | 1 | FOR BMC | |
| 2 | 90387068C500 | COLLAR | ₹ 8 | 4 | ||
| 3 | 904800880100 | GROMMET | ₹ 10 | 4 | ||
| 4 | 9702N0602000 | BOLT FLANGE | ₹ 3 | 2 | ||
| 5 | 902010672600 | WASHER PLATE | ₹ 6 | 2 | ||
| 6 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 7 | 21CF16110100 | FENDER REAR | ₹ 483 | 1 | ||
| 8 | 21CF16510000 | COVER REAR FENDER | ₹ 48 | 1 | ||
| 9 | 970120601400 | BOLT | ₹ 5 | 4 | ||
| 10 | 903870604800 | COLLAR | ₹ 7 | 4 | ||
| 11 | 901830581800 | NUT SPRING | ₹ 9 | 2 | ||
| 12 | 21CF177G0000 | 21CF177G0000 | ₹ 0 | 1 | ||
| 13 | 21CF17170000 | DAMPER | ₹ 2 | 1 | ||
| 14 | 4LSF47410000 | PAD SEAT | ₹ 8 | 1 | ||
| 15 | 901190611700 | BOLT WITH WASHER | ₹ 23 | 2 | ||
| 16 | 21CF16690000 | SEAL | ₹ 35 | 2 | ||
| 17 | 21CF16A20000 | SEAL 2 | ₹ 14 | 1 | ||
| 18 | 21CF16810000 | PLATE LICENSE | ₹ 41 | 1 | ||
| 19 | 976070621400 | SCREW WITH WASHER | ₹ 6 | 2 | ||
| 20 | 9530N0660000 | NUT | ₹ 1 | 2 | ||
| 21 | 902010607800 | WASHER PLATE | ₹ 10 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Managing road spray and protecting the chassis from mud and debris is the primary role of the fender components on your Yamaha Fazer. This assembly features the fender front and a robust fender rear, both designed to integrate seamlessly with the motorcycles frame. These parts are secured using high quality bolt flange and collar fittings to ensure they remain stable and silent during travel. To enhance the look and safety of the machine, the setup includes a dedicated plate license and several reflector units. Every grommet and damper used in this setup is manufactured to resist the vibrations and environmental factors encountered during daily use. By using these genuine fenders, you ensure a perfect fit that complements the motorcycles style while providing essential protection for the engine and the rider in all weather conditions. These authentic parts provide the durability and fitment quality needed for several years of reliable service across various regional roads and highways through many seasons of adventurous travel.
