LEG SHIELD
45S4
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 45SF83810000 | WINDSHIELD | ₹ 483 | 1 | ||
| 2 | 901500502400 | SCREW ROUND HEAD | ₹ 59 | 6 | ||
| 3 | 901790580400 | NUT | ₹ 10 | 6 | ||

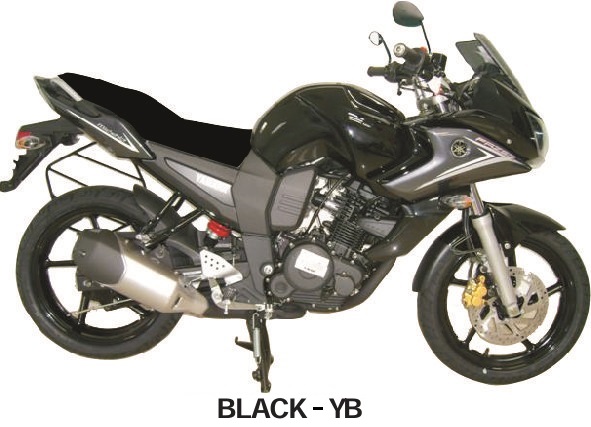

| 4A | 45SF835G0033 | BODY FRONT UPPER 1-YB | ₹ 709 | 1 | FOR YB | |

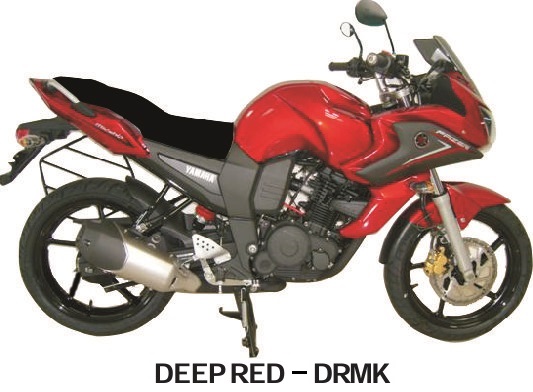

| 4B | 45SF835G00P0 | BODY FRONT UPPER 1-DRMK | ₹ 885 | 1 | FOR DRMK | |

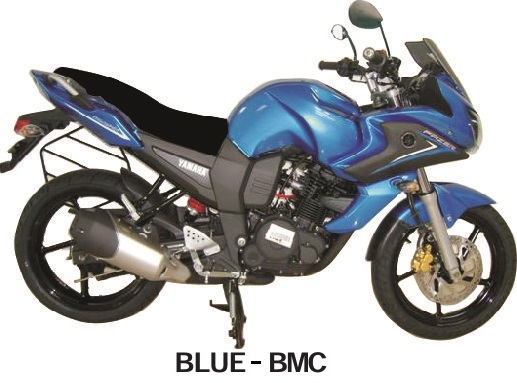

| 4C | 45SF835G00P1 | BODY FRONT UPPER 1-BMC | ₹ 758 | 1 | FOR BMC | |
| 5 | 45SF83560200 | STAY 1 | ₹ 2442 | 1 | ||
| 6 | 958170803500 | BOLT FLANGE | ₹ 12 | 2 | ||
| 7 | 45SF82130000 | PANEL BLIND 1 | ₹ 54 | 1 | ||
| 8 | 2WSF62800000 | REAR VIEW MIRROR ASSY (LEFT) | ₹ 425 | 1 | ||
| 9 | 2WSF62900000 | REAR VIEW MIRROR ASSY (RIGHT) | ₹ 425 | 1 | ||
| 10 | 45SF84830000 | PLATE RUBBER 1 | ₹ 10 | 1 | ||
| 11 | 45SF84840000 | PLATE RUBBER 2 | ₹ 8 | 1 | ||
| 12 | 45SF84850000 | PLATE RUBBER 3 | ₹ 12 | 2 | ||
| 13 | 90387068C200 | COLLAR | ₹ 7 | 4 | ||
| 14 | 913170603000 | BOLT | ₹ 15 | 4 | ||
| 15 | 20PF34690000 | CAP BOLT | ₹ 2 | 4 | ||
| 16 | 45SF16850000 | BRACKET LICENSE | ₹ 79 | 1 | ||
| 17 | 5USF34850000 | 5USF34850000 | ₹ 0 | 1 | ||
| 18 | 975070551200 | BOLT WITH WASHER | ₹ 7 | 2 | ||
| 19 | 45SF831T0000 | STAY SUPPORT 1 | ₹ 85 | 1 | ||
| 20 | 45SF832T0000 | STAY SUPPORT 2 | ₹ 82 | 1 | ||
| 21 | 958070601200 | BOLT FLANGE | ₹ 8 | 4 | ||
| 22A | 45SF117V0033 | COVER 7 - YB | ₹ 483 | 1 | FOR YB | |
| 22B | 45SF117V00P0 | COVER 7- DRMK(RED) | ₹ 382 | 1 | FOR DRMK | |
| 22C | 45SF117V00P1 | COVER 7-BMC | ₹ 436 | 1 | FOR BMC | |
| 23A | 45SF117W0033 | COVER 8 -YB | ₹ 424 | 1 | FOR YB | |
| 23B | 45SF117W00P0 | COVER 8- DRMK(RED) | ₹ 382 | 1 | FOR DRMK | |
| 23C | 45SF117W00P1 | COVER 8- BMC | ₹ 436 | 1 | FOR BMC | |
| 24 | 45SF17780000 | DAMPER LOCATING 1 | ₹ 8 | 4 | ||
| 25 | 901110500300 | BOLT HEX. SOCKET BUTTON | ₹ 30 | 4 | ||
| 26 | 902020518000 | WASHER PLATE | ₹ 28 | 4 | ||
| 27 | 90183050A700 | NUT SPRING | ₹ 22 | 4 | ||
| 28A | 45SXF83650P3 | PANEL COMP 1-DBNM8 | ₹ 468 | 1 | FOR YB | |
| 28B | 45SXF83660P0 | PANEL COMP 1-MBL2 | ₹ 468 | 1 | FOR DRMK | |
| 28C | 45SXF83670P0 | PANEL COMP 1-BMC | ₹ 468 | 1 | FOR BMC | |
| 29 | 5KAF413B0000 | TUNNING FORK | ₹ 85 | 1 | ||
| 30A | 45SXF83G50P3 | PANEL COMP 2-DBNM8 | ₹ 468 | 1 | FOR YB | |
| 30B | 45SXF83G60P0 | PANEL COMP 2-MBL2 | ₹ 468 | 1 | FOR DRMK | |
| 30C | 45SXF83G70P0 | PANEL COMP 2 - MBL2 | ₹ 468 | 1 | FOR BMC | |
| 31 | 5KAF413B0000 | TUNNING FORK | ₹ 85 | 1 | ||
| 32 | 977075001200 | SCREW TRUSS HD TAP | ₹ 5 | 6 | ||
| 33 | 901830581800 | NUT SPRING | ₹ 9 | 6 | ||
| 34 | 45SF837L0000 | PANEL CONSOLE 1 | ₹ 87 | 1 | ||
| 35 | 45SF837M0000 | PANEL CONSOLE 2 | ₹ 129 | 1 | ||
| 36 | 901110500200 | BOLT,HEX. SOCKET BUTTON | ₹ 18 | 4 | ||
| 37 | 90183050A700 | NUT SPRING | ₹ 22 | 4 | ||
| 38 | 902690681400 | RIVET | ₹ 8 | 2 | ||
| 39 | 902020600400 | WASHER PLATE | ₹ 3 | 2 | ||
| 40 | 904800155800 | GROMMET | ₹ 10 | 3 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The aggressive and muscular front profile of the Yamaha Fazer V1 is enhanced by these leg shield components, which combine aerodynamics with essential protection. The assembly features a stylish windshield and various panels, designed to divert wind blast away from the rider during high speed travel. Supporting these are robust stay support brackets and collar fittings that ensure every panel remains stable and vibration free. For essential visibility, the rear view mirror assy is integrated into this setup, providing a clear view of following traffic. Every nut spring and rivet is selected for its durability and ability to maintain a flush fit against the frame. Small details like the tuning fork mark signify the premium engineering heritage of the brand. By choosing these authentic body parts, you ensure that your motorcycle retains its factory fresh appearance and its aerodynamic efficiency for thousands of kilometers of riding through diverse environments across several regional highways.
