FENDER
54B3
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

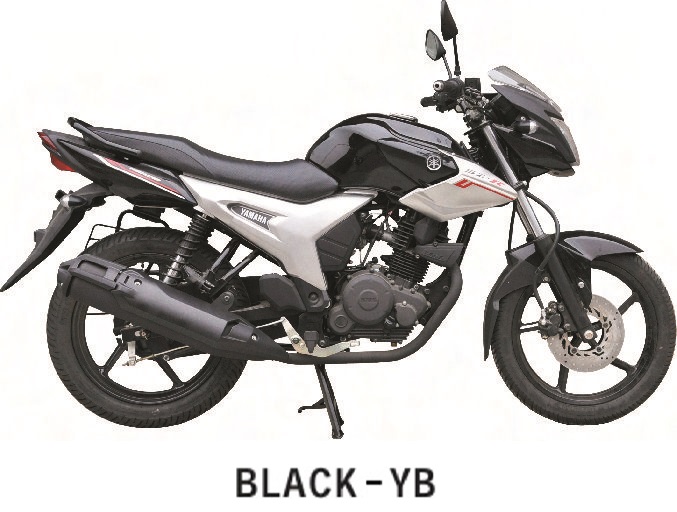

| 1A | 54BXF15A000X | FRONT FENDER ASSY-YB | ₹ 1097 | 1 | FOR YB | |

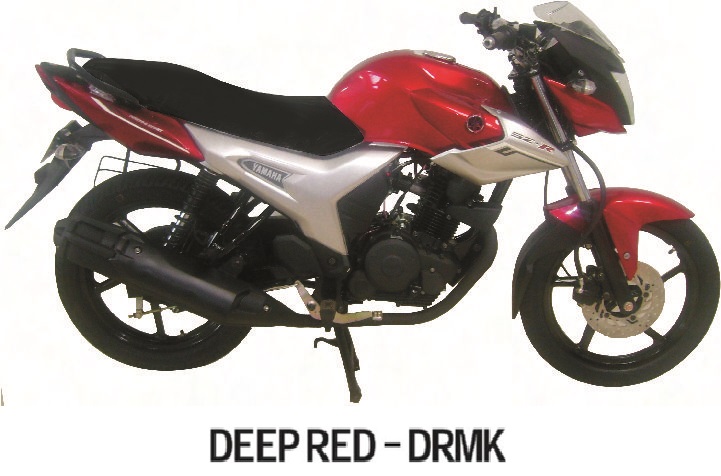

| 1B | 54BXF15A101X | FRONT FENDER ASSY - DRMK(RED) | ₹ 1184 | 1 | FOR DRMK | |

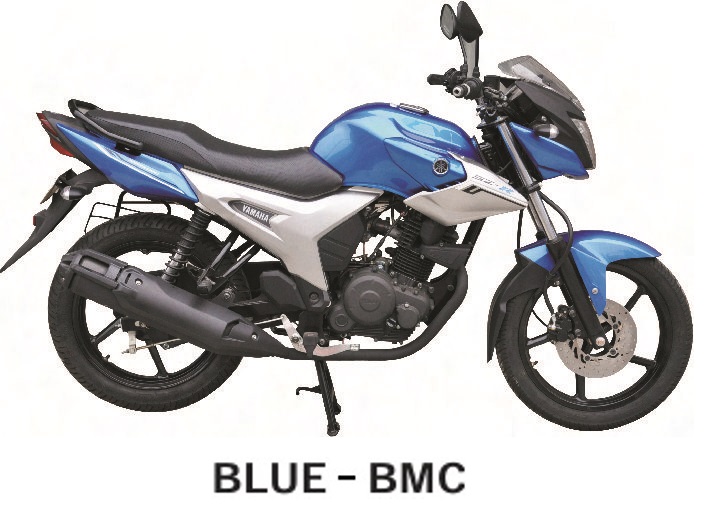

| 1C | 54BXF15A303X | FRONT FENDER ASSY-BMC(BLUE MET | ₹ 902 | 1 | FOR BMC | |
| 2 | 54BF15450000 | COLLAR 2 | ₹ 6 | 2 | ||
| 3 | 90387068C800 | COLLAR | ₹ 16 | 2 | ||
| 4 | 904801280500 | GROMMET | ₹ 8 | 4 | ||
| 5 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 6 | 958070602000 | BOLT FLANGE | ₹ 5 | 2 | ||
| 7 | 54BF15180000 | HOLDER CABLE | ₹ 10 | 1 | ||
| 8 | 54BF16110000 | FENDER REAR | ₹ 325 | 1 | ||
| 9 | 901830581800 | NUT SPRING | ₹ 9 | 6 | ||
| 10 | 90387068H300 | COLLAR | ₹ 11 | 3 | ||
| 11 | 970070601400 | BOLT | ₹ 5 | 3 | ||
| 12 | 21CF16810000 | PLATE LICENSE | ₹ 41 | 1 | ||
| 13 | 929070660000 | WASHER | ₹ 5 | 2 | ||
| 14 | 901590602100 | SCREW WITH WASHER | ₹ 9 | 2 | ||
| 15 | 9530N0660000 | NUT | ₹ 1 | 2 | ||
| 16 | 904641200100 | CLAMP | ₹ 74 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Fenders are essential for protecting both your Yamaha SZR V1 and other road users from dirt, water, and debris kicked up by your tires. A damaged or missing fender not only looks unsightly but can also expose your motorcycle to unnecessary wear. Our catalog features a comprehensive range of genuine fender components, including the Front Fender, the protective Flap, and all the necessary hardware like the Reflector Assy and Bolt Flange. These parts are built for durability and are designed to integrate seamlessly with the existing frame of your bike. Keep your motorcycle clean and compliant with safety standards by choosing our authentic replacement parts. Whether you are repairing a collision or simply refreshing the look of your ride, our inventory has the exact components you need to maintain your SZR V1 in pristine, roadworthy condition every single day.
