SIDE COVER
0
5KA8
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

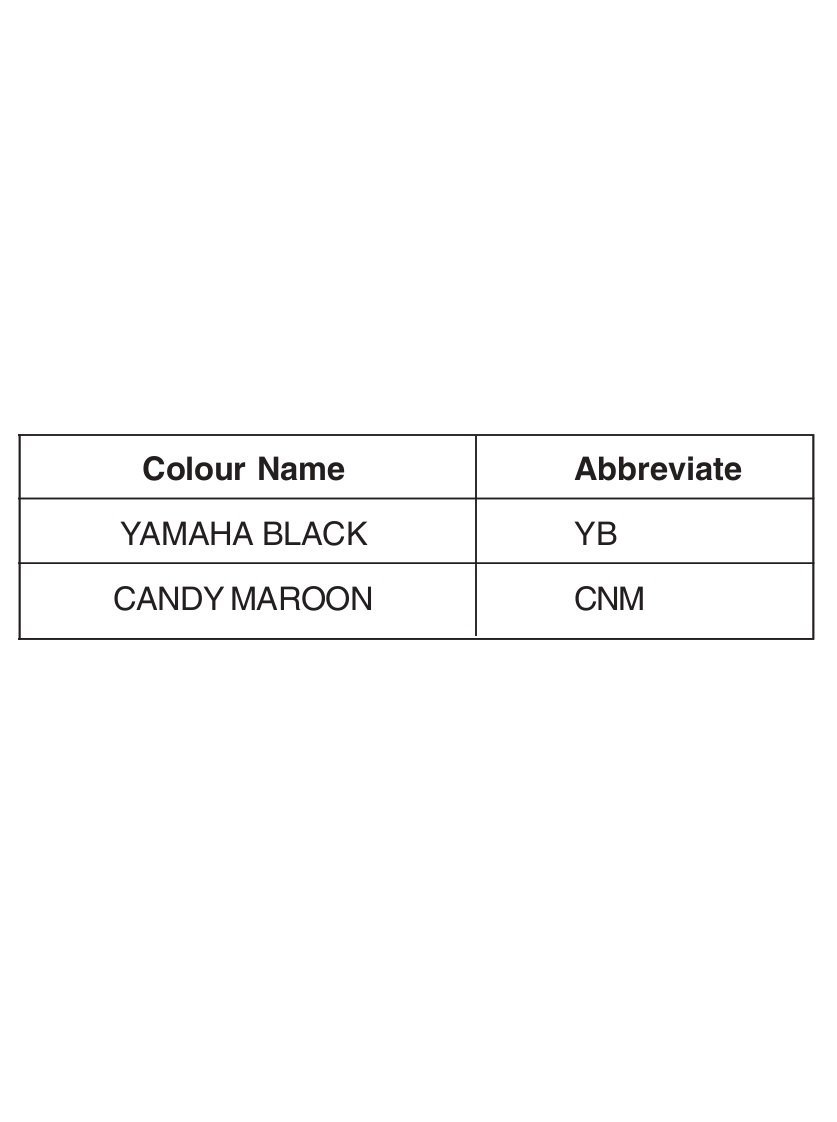

| 1A | 5KAXF171101X | SIDE COVER ASSY 1 (YB) | ₹ 638 | 1 | FOR YB | |
| 1B | 5KAXF171105X | SIDE COVER ASSY 1 (CNM) | ₹ 638 | 1 | FOR CNM | |
| 2A | 5KAXF172101X | SIDE COVER ASSY 2 (YB) | ₹ 638 | 1 | FOR YB | |
| 2B | 5KAXF172105X | SIDE COVER ASSY 2 (CNM) | ₹ 638 | 2 | FOR CNM | |
| 3 | 904801386100 | GROMMET | ₹ 8 | 2 | ||
| 4 | 5DGF17780000 | DAMPER LOCATING 1 | ₹ 2 | 2 | ||
| 5 | 2YAWF1780100 | LOCK WITH KEY( COVER SIDE 1-LH | ₹ 195 | 1 | ||
| 6 | 901792280000 | NUT | ₹ 9 | 1 | ||
| 7 | 904802418600 | GROMMET | ₹ 8 | 1 | ||
| 8 | 90201225A400 | WASHER PLAIN | ₹ 3 | 1 | ||
| 9 | 901590606700 | SCREW WITH WASHER | ₹ 10 | 1 | ||
| 10 | 5DGF177G0000 | BOX BATTERY | ₹ 58 | 1 | ||
| 11 | 5DGF177E0000 | LID SIDE COVER | ₹ 51 | 1 | ||
| 12 | 5KAF179E1100 | 5KAF179E1100 | ₹ 0 | 1 | ||
| 13 | 5KAF17170000 | DAMPER SIDE COVER | ₹ 2 | 2 | ||
| 14 | 901190610800 | BOLT WITH WASHER | ₹ 6 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 5KA8 CRUX Series SIDE COVER
