FUEL TANK
0
5KAA
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

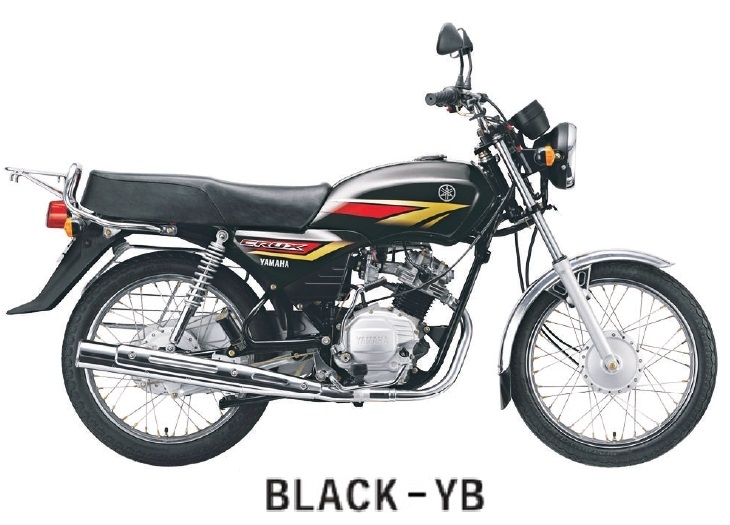

| 1A | 5KAXF41A2033 | 5KAXF41A2033 | ₹ 0 | 1 | FOR YB | |

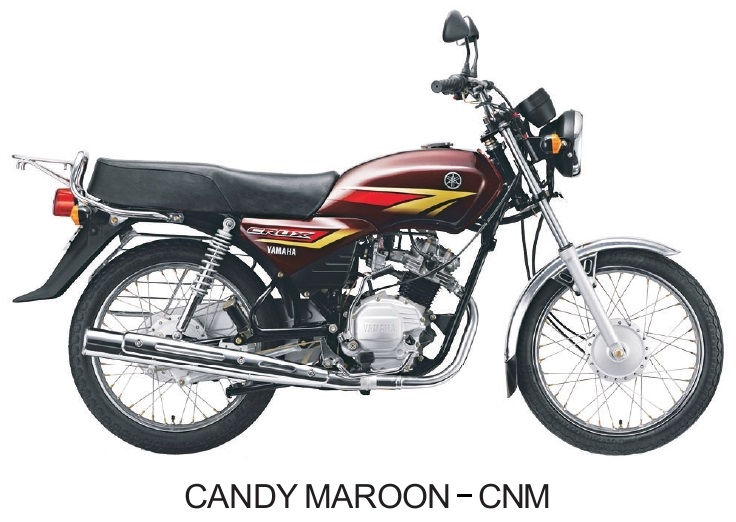

| 1B | 5KAXF41A20H6 | 5KAXF41A20H6 | ₹ 0 | 1 | FOR CNM | |
| 2 | 5KAF413B0000 | TUNNING FORK | ₹ 48 | 2 | ||
| 3 | 4UUF41810100 | DAMPER LOCATING 1 | ₹ 12 | 2 | ||
| 4 | 4LSF41830000 | DAMPER LOCATING 3 | ₹ 17 | 1 | ||
| 5 | 4UUF41830100 | DAMPER LOCATING 3 | ₹ 7 | 1 | ||
| 6 | 4UUF41860000 | WASHER SPECIAL | ₹ 4 | 1 | ||
| 7 | 9700N0803000 | BOLT | ₹ 4 | 1 | ||
| 8 | 4LSF45000900 | FUEL COCK ASSY 1 | ₹ 272 | 1 | ||
| 9 | 4UUF45340000 | SEAL COCK LEVER | ₹ 13 | 1 | ||
| 10 | 985070300800 | 985070300800 | ₹ 0 | 2 | ||
| 11 | 4UUF45210000 | BOWL | ₹ 12 | 1 | ||
| 12 | 4UUF45650000 | 4UUF45650000 | ₹ 0 | 1 | ||
| 13 | 4UUF45150000 | NET FILTER-2 | ₹ 18 | 1 | ||
| 14 | 4UUF45120000 | GASKET | ₹ 8 | 1 | ||
| 15 | 901490424200 | SCREW | ₹ 2 | 1 | ||
| 16 | 4UUF45240000 | LEVER COCK | ₹ 11 | 1 | ||
| 17 | 4UUF45230000 | VALVE | ₹ 18 | 1 | ||
| 18 | 901570680100 | SCREW PAN HEAD | ₹ 2 | 2 | ||
| 19 | 902020518700 | WASHER PLATE | ₹ 10 | 2 | ||
| 20 | 4UUF46500100 | CAP ASSY | ₹ 375 | 1 | ||
| 21 | 9850N0501000 | SCREW PAN HEAD | ₹ 2 | 2 | ||
| 22 | 9X4451080600 | PIPE FUEL WITH TWO CLIPS | ₹ 13 | 1 | ||
| 23 | 904670900600 | CLIP | ₹ 5 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 5KAA CRUX Series FUEL TANK
