FRONT FENDER
0
5TM1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

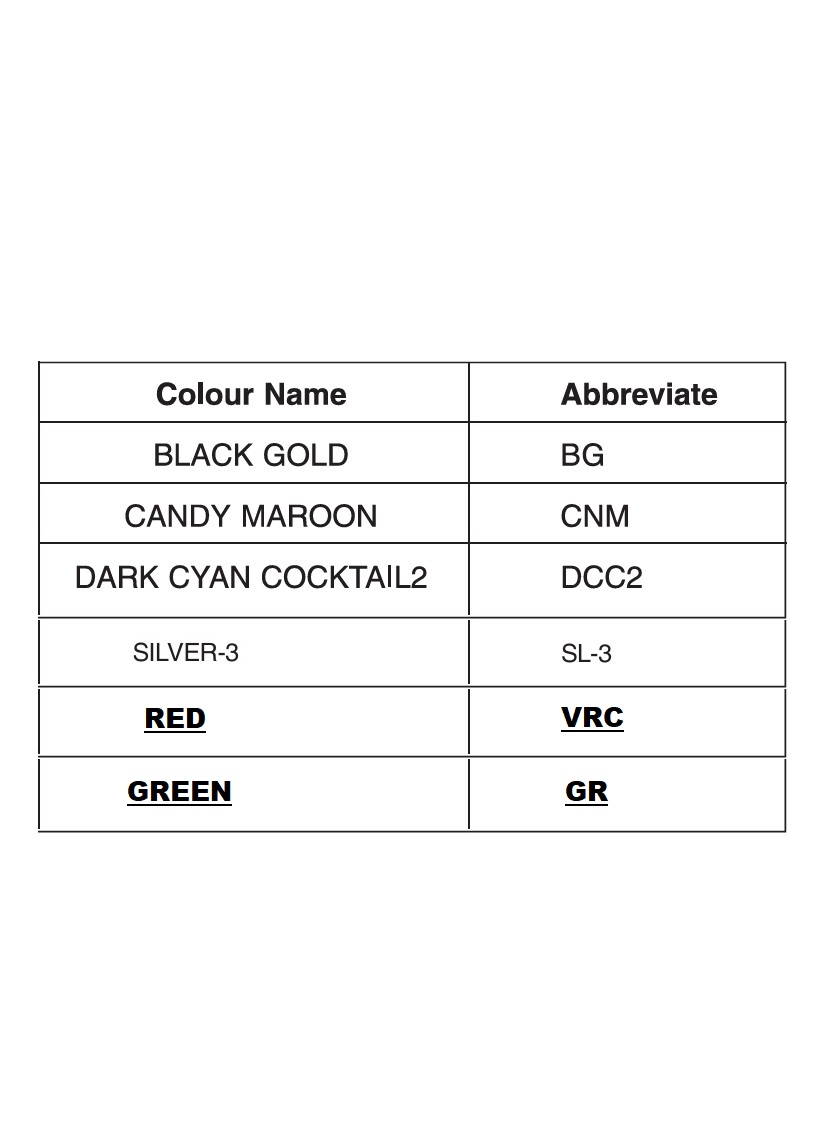

| 1A | 5DGF151000H9 | FRONT FENDER COMP. (BG) | ₹ 871 | 1 | BG | |
| 1B | 4UUF1510C0P0 | FRONT FENDER COMP. (S3) | ₹ 1289 | 1 | SL3 | |
| 1C | 5TMF151010P0 | FRONT FENDER COMP. (DCM8) | ₹ 1351 | 1 | DCC2 | |
| 1D | 4UUXF151C0P0 | FR.FENDER ASSY(VRC7) | ₹ 1513 | 1 | VRC | |
| 1E | 4UUF1510C0H6 | FRONT FENDER COMP. (CNM) | ₹ 1289 | 1 | CNM | |
| 2 | 958020601600 | BOLT FLANGE | ₹ 19 | 1 | ||
| 3 | 5KAF15180000 | HOLDER WIRE | ₹ 6 | 1 | ||
| 4 | 5DG161100000 | 5DG161100000 | ₹ 0 | 1 | ||
| 5 | 904641082900 | CLAMP | ₹ 6 | 2 | ||
| 6 | 901190610800 | BOLT WITH WASHER | ₹ 6 | 2 | ||
| 7 | 5TSF16850000 | BRACKET LICENCE | ₹ 66 | 1 | ||
| 8 | 901190610800 | BOLT WITH WASHER | ₹ 6 | 3 | ||
| 9 | 5DGF177F0000 | 5DGF177F0000 | ₹ 0 | 1 | ||
| 10 | 5DGF16210000 | FLAP | ₹ 47 | 1 | ||
| 11 | 5UCF16810000 | 5UCF16810000 | ₹ 0 | 1 | ||
| 12 | 4LSF16490000 | RUBBER PAD | ₹ 5 | 1 | ||
| 13 | 950220601600 | BOLT, FLANGE | ₹ 11 | 2 | ||
| 14 | 929070620000 | WASHER | ₹ 5 | 2 | ||
| 15 | 9290N0810000 | SPRING WASHER | ₹ 2 | 2 | ||
| 16 | 9530N0660000 | NUT | ₹ 1 | 2 | ||
| 17 | 4LSF15210000 | FLAP | ₹ 90 | 1 | ||
| 18 | 976060521400 | 976060521400 | ₹ 0 | 6 | ||
| 19 | 9530N0560000 | NUT HEX | ₹ 2 | 6 | ||
| 20 | 902010572500 | WASHER PLAIN | ₹ 40 | 6 | ||
| 21 | 5DGF15750000 | 5DGF15750000 | ₹ 0 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 5TM1 CRUX R Series FRONT FENDER
