FENDER
5TS5
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

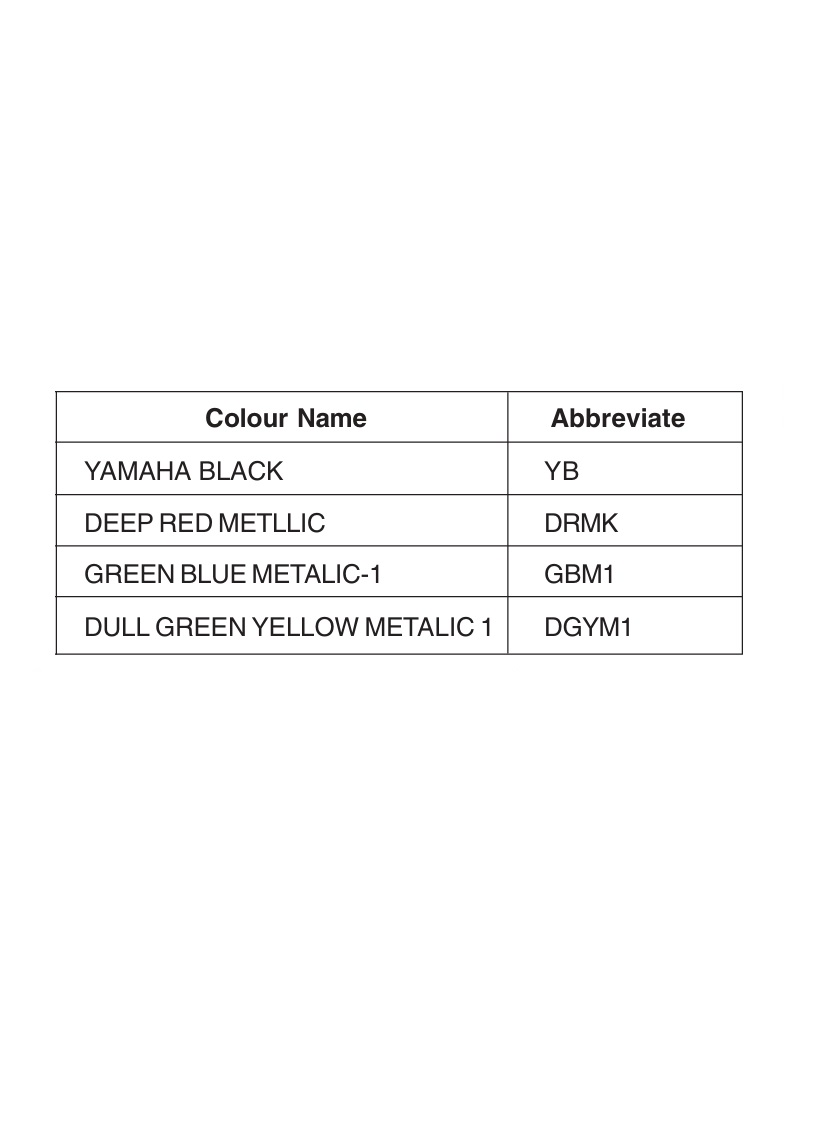

| 1A | 5TSF1510611X | FRONT FENDER COMP.YAMAHA BLACK | ₹ 885 | 1 | FOR YB | |
| 1B | 5TSWF151A000 | FRONT FENDER (DRMK) | ₹ 885 | 1 | FOR DRMK | |
| 1C | 5TSWF151B000 | FRONT FENDER (DPBMC) | ₹ 885 | 1 | FOR GBM1 | |
| 1D | 5TSWF151G000 | 5TSWF151G000 | ₹ 0 | 1 | FOR DGYM1 | |
| 2 | 958270601600 | BOLT FLANGE | ₹ 5 | 4 | ||
| 3 | 5TSF15180100 | HOLDER, CABLE | ₹ 23 | 1 | ||
| 4 | 5TSF16110000 | REAR FENDER | ₹ 239 | 1 | ||
| 5 | 904641082900 | CLAMP | ₹ 6 | 2 | ||
| 6 | 901190160800 | 901190160800 | ₹ 0 | 3 | ||
| 7 | 901190610800 | BOLT WITH WASHER | ₹ 6 | 2 | ||
| 8 | 5TSF16210100 | FLAP | ₹ 80 | 1 | ||
| 9 | 5TSF16850000 | BRACKET LICENCE | ₹ 60 | 1 | ||
| 10 | 9850N0601200 | SCREW PAN HEAD | ₹ 2 | 2 | ||
| 11 | 5USH51100100 | REFLECTOR ASSY | ₹ 14 | 1 | ||
| 12 | 5TSF16911000 | FLAP 5TS3 | ₹ 20 | 1 | ||
| 13 | 9530N0560000 | NUT HEX | ₹ 2 | 2 | ||
| 14 | 902010572500 | WASHER PLAIN | ₹ 40 | 2 | ||
| 15 | 9760N0521200 | PAN HEAD SCREW | ₹ 5 | 2 | ||
| 16 | 5USF16812000 | 5USF16812000 | ₹ 0 | 1 | ||
| 17 | 9850N0601200 | SCREW PAN HEAD | ₹ 2 | 2 | ||
| 18 | 9290N0610000 | WASHER, SPRING | ₹ 1 | 2 | ||
| 19 | 957010550000 | FLANGE NUT | ₹ 1 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protecting the rider and the bike from road debris is the main job of the Yamaha Libero LX mudguards and plates. As you navigate the dusty or muddy conditions of India, the Front Fender and the Rear Fender provide the necessary coverage. This assembly includes technical items like the mud flap and various clamps that hold the cables and fenders in place. The catalog also features the license plate brackets and reflectors required for vehicle visibility and legal compliance on public roads. Sturdy bolts and washers ensure that these parts remain firmly attached even during high speed travel or over rough surfaces. High quality materials are used to ensure that these components do not warp or corrode when exposed to the elements. Whether you are commuting in the city or traveling to rural areas, these genuine fenders keep your motorcycle cleaner and protect the engine. Ensure your bike stays looking great and remains road legal with these original replacement parts.
