FENDER
5TS8
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

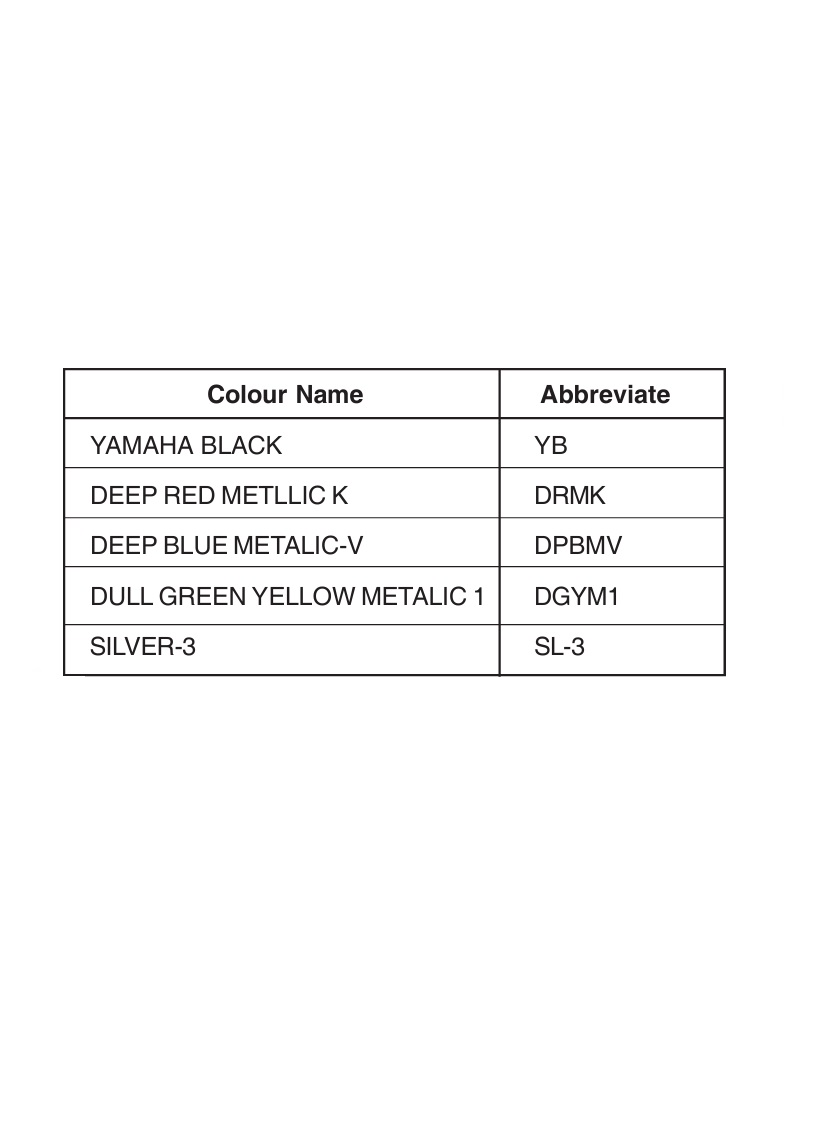

| 1A | 5TSF1510611X | FRONT FENDER COMP.YAMAHA BLACK | ₹ 885 | 1 | FOR YB | |
| 1B | 5TSWF151A002 | FRT.FENDER (DRMK1) | ₹ 885 | 1 | FOR DRMK | |
| 1C | 5TSF1510612X | FRONT FENDER COMP. (DPBMV) | ₹ 885 | 1 | FOR DPBMV | |
| 1D | 5TSF1510615X | FRONT FENDER COMP. (DGYM1) | ₹ 675 | 1 | FOR DGYM1 | |
| 1E | 5TSWF1517002 | FR.FENDER(SILVER) | ₹ 885 | 1 | FOR SL3 | |
| 2 | 958270601600 | BOLT FLANGE | ₹ 5 | 4 | ||
| 3 | 5TSF15180100 | HOLDER, CABLE | ₹ 23 | 1 | ||
| 4 | 5TSF16110000 | REAR FENDER | ₹ 239 | 1 | ||
| 5 | 904641082900 | CLAMP | ₹ 6 | 2 | ||
| 6 | 901190160800 | 901190160800 | ₹ 0 | 3 | ||
| 7 | 901190610800 | BOLT WITH WASHER | ₹ 6 | 2 | ||
| 8 | 5TSF16210100 | FLAP | ₹ 80 | 1 | ||
| 9 | 5TSF16850000 | BRACKET LICENCE | ₹ 60 | 1 | ||
| 10 | 9850N0601200 | SCREW PAN HEAD | ₹ 2 | 2 | ||
| 11 | 5USH51100100 | REFLECTOR ASSY | ₹ 14 | 1 | ||
| 12 | 5TSF16911000 | FLAP 5TS3 | ₹ 20 | 1 | ||
| 13 | 9530N0560000 | NUT HEX | ₹ 2 | 2 | ||
| 14 | 902010572500 | WASHER PLAIN | ₹ 40 | 2 | ||
| 15 | 9760N0521200 | PAN HEAD SCREW | ₹ 5 | 2 | ||
| 16 | 957010550000 | FLANGE NUT | ₹ 1 | 1 | ||
| 17 | 21CF16810000 | PLATE LICENSE | ₹ 41 | 1 | ||
| 18 | 9850N0601200 | SCREW PAN HEAD | ₹ 2 | 2 | ||
| 19 | 9290N0610000 | WASHER, SPRING | ₹ 1 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protecting the rider and the bike from road debris is the main job of the Yamaha Libero mudguards and plates. As you navigate the dusty or muddy conditions of India, the Front Fender and the Rear Fender provide the necessary coverage. This assembly includes technical items like the mud guard and various clamps that keep the cables and fenders in place. The catalog also features the license plate brackets and reflectors required for vehicle visibility and legal compliance on public roads. Sturdy bolts and washers ensure that these parts remain firmly attached even during high speed travel or over rough surfaces. High quality materials are used to ensure that these components do not warp or corrode when exposed to the elements. Whether you are commuting in the city or traveling to rural areas, these genuine fenders keep your motorcycle cleaner and protect the engine. Ensure your bike stays looking great and remains road legal with these original replacement parts from our factory list.
