FENDER
5YY5
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1A | 5YYF15101033 | FRONT FENDER COMP.YB | ₹ 1106 | 1 | FOR YB | |
| 1B | 5YYF151010P0 | FRONT FENDER COMP.( DRMK ) RED | ₹ 1106 | 1 | FOR DRMK | |
| 2 | 958270601600 | BOLT FLANGE | ₹ 5 | 4 | ||
| 3 | 5TSF15180100 | HOLDER, CABLE | ₹ 23 | 1 | ||
| 4 | 5YYF16110100 | FENDER REAR | ₹ 215 | 1 | ||
| 5 | 901190610800 | BOLT WITH WASHER | ₹ 6 | 3 | ||
| 6 | 5TSF16850000 | BRACKET LICENCE | ₹ 60 | 1 | ||
| 7 | 901190610800 | BOLT WITH WASHER | ₹ 6 | 2 | ||
| 8 | 904641082900 | CLAMP | ₹ 6 | 1 | ||
| 9 | 5USH51100100 | REFLECTOR ASSY | ₹ 14 | 1 | ||
| 10 | 957070550000 | NUT FLANGE | ₹ 1 | 1 | ||
| 11 | 5YYF16910000 | FLAP REAR FENDER | ₹ 10 | 1 | ||
| 12 | 9850N0501200 | SCREW PAN HEAD | ₹ 2 | 2 | ||
| 13 | 902010572500 | WASHER PLAIN | ₹ 40 | 2 | ||
| 14 | 9530N0560000 | NUT HEX | ₹ 2 | 2 |

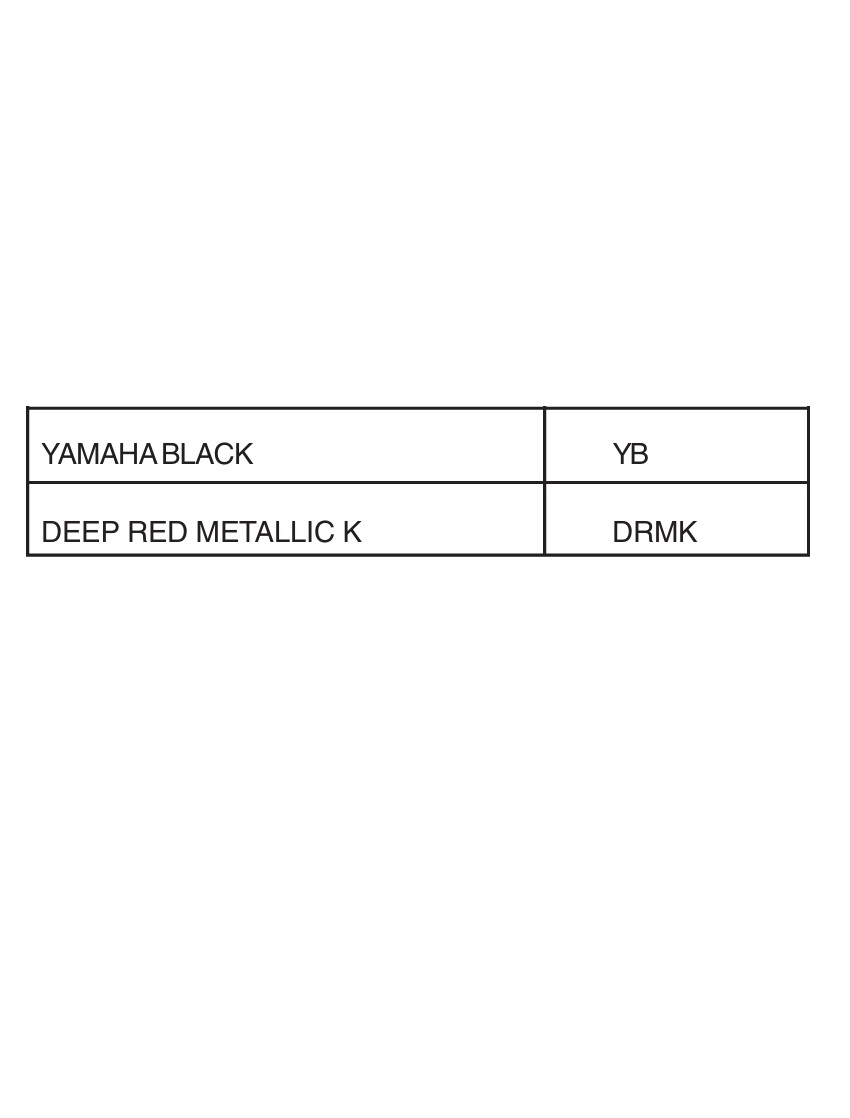

Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protecting the rider and the bike from road debris is the main job of the Yamaha Fazer LX fender components. As you navigate the dusty or muddy conditions of India, the Front Fender and the Rear Fender provide the necessary coverage. This assembly includes technical items like the cable holder and various clamps that hold the cables and fenders in place. The catalog also features the Bracket Licence and reflectors required for vehicle visibility and legal compliance on public roads. Sturdy bolts and washers ensure that these parts remain firmly attached even during high speed travel or over rough surfaces. High quality materials are used to ensure that these components do not warp or corrode when exposed to the elements. Whether you are commuting in the city or traveling to rural areas, these genuine fenders keep your motorcycle cleaner and protect the engine. Ensure your bike stays looking great and remains road legal through all weather conditions and terrains during all your travels.
