WINDSHIELD
B0T1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BK7F83810000 | WINDSHIELD (SMOKE COLOR) | ₹ 322 | 1 | ||
| 2 | 901790580400 | NUT | ₹ 10 | 4 | ||
| 3A | BK7XF83510P2 | PANEL ASSY DPBMY | ₹ 1141 | 1 | FOR DPBMY | |

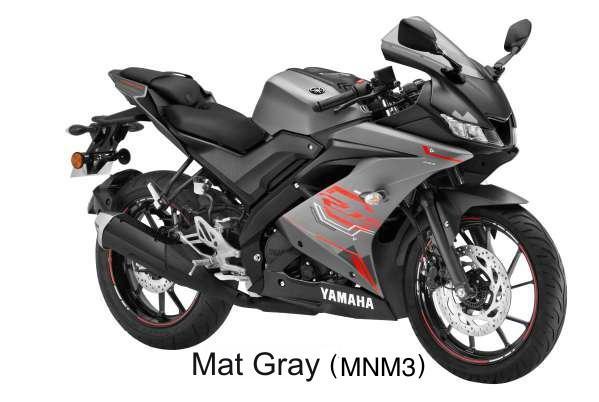

| 3B | BK7XF83500P3 | PANEL ASSY MBL2 | ₹ 1027 | 1 | FOR MNM3 | |
| 4A | B0TF841G0000 | GRAPHIC 1 | ₹ 37 | 1 | FOR DPBMY | |
| 4B | B0TF841G1000 | GRAPHIC 1 | ₹ 63 | 1 | FOR MNM3 | |
| 5 | B0TF842G1000 | GRAPHIC 2 | ₹ 18 | 1 | FOR MNM3 | |
| 6 | 905200283800 | SEAT PIPE | ₹ 8 | 2 | ||
| 7 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 8 | 901500502400 | SCREW ROUND HEAD | ₹ 59 | 4 | ||
| 9 | BK7F835G0000 | BODY FRONT UPPER 1 - (BLACK) | ₹ 253 | 1 | ||
| 10 | 905201083900 | SEAT PIPE | ₹ 8 | 2 | ||
| 11 | 905201084700 | DAMPER PLATE | ₹ 9 | 4 | ||
| 12 | 905201081100 | DAMPER PLATE | ₹ 14 | 4 | ||
| 13 | 904801339800 | GROMMET | ₹ 10 | 1 | ||
| 14 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 15 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 16A | BK7F172G00P0 | PANEL 3 -DPBMY(DEEPPURPLEBLUE) | ₹ 280 | 1 | FOR DPBMY | |
| 16B | BK7F172G00P2 | PANEL 3 MBL2 | ₹ 280 | 1 | FOR MNM3 | |
| 17 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 18A | BK7F172H00P0 | PANEL 4 DPBMY(DEEPPURPLEBLUE) | ₹ 280 | 1 | FOR DPBMY | |
| 18B | BK7F172H00P2 | PANEL 4 MBL2 | ₹ 280 | 1 | FOR MNM3 | |
| 19 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 20 | BK7F83560000 | STAY 1 | ₹ 590 | 1 | ||
| 21 | 901050800200 | BOLT WASHER BASED | ₹ 8 | 2 | ||
| 22 | B9EF83650000 | COVER | ₹ 68 | 1 | ||
| 23 | BK7F62800000 | REAR VIEW MIRROR ASSY (LEFT) | ₹ 455 | 1 | ||
| 24 | BK7F62900000 | REAR VIEW MIRROR ASSY (RIGHT) | ₹ 455 | 1 | ||
| 25 | BK7F84830000 | PLATE RUBBER 1 | ₹ 15 | 2 | ||
| 26 | BK7F84840000 | PLATE RUBBER 2 | ₹ 86 | 1 | ||
| 27 | 913170603000 | BOLT | ₹ 15 | 4 | ||
| 28 | 903870613100 | COLLAR | ₹ 11 | 4 | ||
| 29 | BK7F16850000 | BRACKET LICENSE | ₹ 102 | 1 | ||
| 30 | 20PF34690000 | CAP BOLT | ₹ 2 | 4 | ||
| 31 | BK7F117V0000 | COVER 7 (BLACK) | ₹ 142 | 1 | ||
| 32 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 33 | 904801280800 | GROMMET | ₹ 10 | 2 | ||
| 34 | 903870689900 | COLLAR | ₹ 30 | 2 | ||
| 35 | 903870615800 | COLLAR | ₹ 98 | 1 | ||
| 36 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 37 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 38 | 902690681200 | RIVET | ₹ 20 | 1 | ||
| 39 | BK7F837V0000 | GRILL AIR OUTLET 1 - (BLACK P | ₹ 119 | 1 | ||
| 40 | 977025001600 | SCREW TAPPING | ₹ 10 | 1 | ||
| 41 | 901830506700 | NUT SPRING | ₹ 8 | 5 | ||
| 42 | BK7F117W0000 | COVER 8 (BLACK) | ₹ 142 | 1 | ||
| 43 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 44 | 904801280800 | GROMMET | ₹ 10 | 2 | ||
| 45 | 903870689900 | COLLAR | ₹ 30 | 2 | ||
| 46 | 903870615800 | COLLAR | ₹ 98 | 1 | ||
| 47 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 48 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 49 | 902690681200 | RIVET | ₹ 20 | 1 | ||
| 50 | BK7F837W0000 | GRILL AIR OUTLET 2 - (BLACK | ₹ 119 | 1 | ||
| 51 | 977025001600 | SCREW TAPPING | ₹ 10 | 1 | ||
| 52 | 901830506700 | NUT SPRING | ₹ 8 | 5 | ||
| 53 | BK7F12781000 | MOLD | ₹ 7 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Aerodynamic perfection is the goal of the Yamaha R15 V3, plus the Windshield assembly is a key component in achieving a smooth ride. This unit features the high quality Windshield which provides excellent wind protection, alongside the Panel Assy that defines the front aesthetics. It is decorated with various Graphic elements that highlight the aggressive lines of the motorcycle. The structure is supported by the Stay plus various Grommet plus Nut Spring units for a vibration free fitment at high speeds. Functional features like the Rear View Mirror Assy plus the Plate Rubber are included to provide clear rearward visibility plus reduce mirror shake on Indian roads. Every Bolt plus Collar is engineered for a precise fit, ensuring that the windshield remains secure even under high air pressure. Genuine Yamaha parts ensure that your Yamaha R15 V3 retains its aerodynamic efficiency plus the premium finish.
