FENDER
0
B0Y1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1A | B9XXF15A00P3 | FRONT FENDER ASSY | ₹ 1059 | 1 | ||
| 1B | B9XXF15A00P4 | FRONT FENDER ASSY | ₹ 1059 | 1 | ||
| 1C | B9XXF15A00P2 | FRONT FENDER ASSY | ₹ 920 | 1 | ||
| 2 | B9EF843G0000 | GRAPHIC 3 | ₹ 12 | 2 | ||
| 3 | 904800880100 | GROMMET | ₹ 10 | 4 | ||
| 4 | 90387068C500 | COLLAR | ₹ 9 | 4 | ||
| 5 | 958220602000 | BOLT FLANGE | ₹ 5 | 2 | ||
| 6 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 7 | B97F16110100 | FENDER REAR | ₹ 225 | 1 | ||
| 8 | 905200780600 | DAMPER PLATE | ₹ 8 | 1 | ||
| 9 | 20PF83710000 | DAMPER | ₹ 3 | 3 | ||
| 10 | 970120601400 | BOLT | ₹ 5 | 2 | ||
| 11 | 903870604800 | COLLAR | ₹ 8 | 2 | ||
| 12 | 956020620000 | NUT, SELF-LOCKING | ₹ 0 | 4 | ||
| 13 | 90387068H800 | COLLAR | ₹ 6 | 4 | ||
| 14 | B97F16400000 | REAR STAY COMP. | ₹ 207 | 1 | ||
| 15 | 901110685900 | BOLT HEX. SOCKET BUTTON | ₹ 7 | 1 | ||
| 16 | B97F16290000 | GUARD MUD | ₹ 85 | 1 | ||
| 17 | 21CF17170000 | DAMPER | ₹ 2 | 1 | ||
| 18 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 19 | B97F163A0000 | COVER REAR FENDER 1 | ₹ 60 | 1 | ||
| 20 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 21 | 977075001200 | SCREW TRUSS HD TAP | ₹ 5 | 2 | ||
| 22 | 902690681300 | RIVET | ₹ 8 | 2 | ||
| 23 | B97F81000000 | TOOL SET | ₹ 74 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.

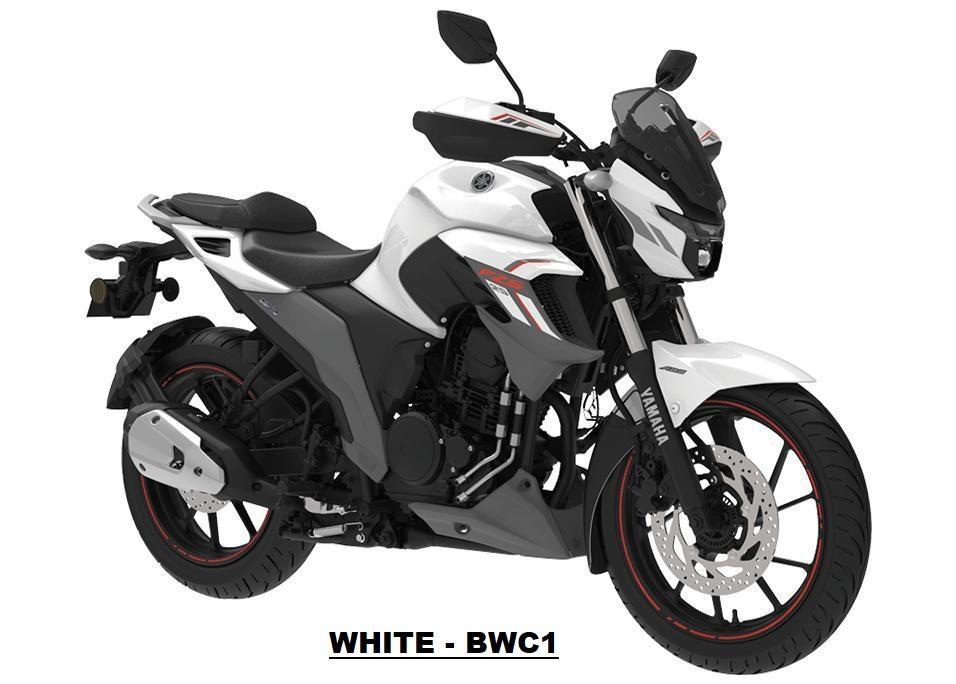

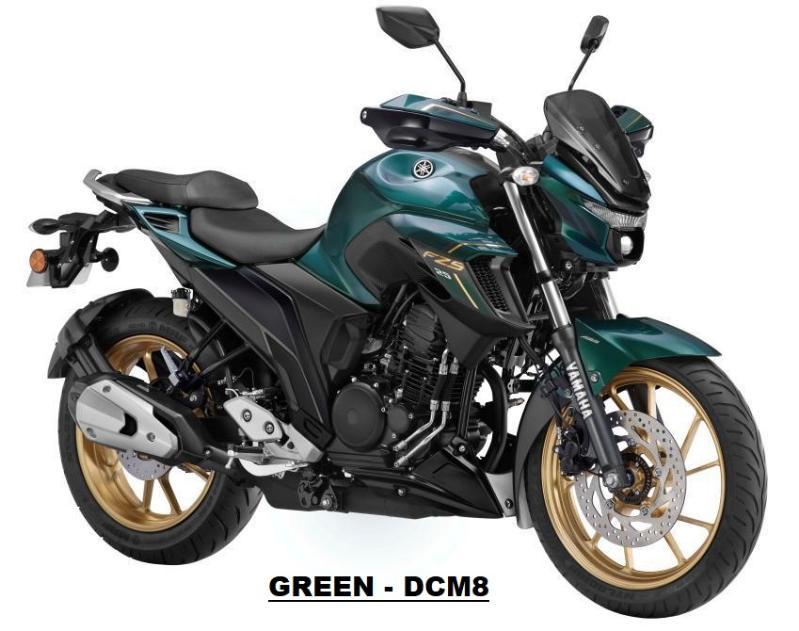

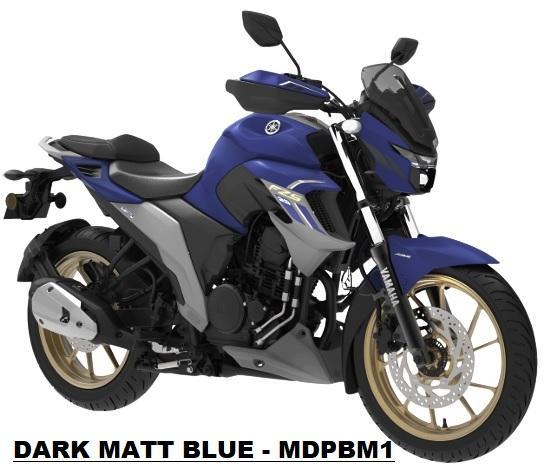

Description: - YAMAHA B0Y1 FZS 25 Series FENDER
