STEERING HANDLE & CABLE
B0Y1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B9XF61100000 | HANDLE COMP. | ₹ 636 | 1 | ||
| 2 | 21CF62410100 | GRIP | ₹ 46 | 1 | ||
| 3 | B97F62400100 | GRIP ASSY | ₹ 46 | 1 | ||
| 4 | B0YF62460000 | END GRIP | ₹ 80 | 2 | ||
| 5 | 902010605500 | WASHER PLATE | ₹ 3 | 2 | ||
| 6 | 901110687200 | BOLT,HEX. SOCKET BUTTON | ₹ 22 | 2 | ||
| 7 | B97F62810000 | CAP GRIP UPPER | ₹ 12 | 1 | ||
| 8 | B97F62820000 | CAP GRIP LOWER | ₹ 12 | 1 | ||
| 9 | 985070504000 | SCREW PAN HEAD | ₹ 6 | 2 | ||
| 10 | B97F63020000 | THROTTLE CABLE ASSY | ₹ 438 | 1 | ||
| 11 | B97F63351000 | CABLE CLUTCH | ₹ 149 | 1 | ||
| 12 | 5TSF63720100 | COVER, HANDLE LEVER 1 | ₹ 18 | 1 | ||
| 13 | 901230804600 | BOLT WIRE ADUSTING | ₹ 15 | 1 | ||
| 14 | 901790814800 | NUT WIRE ADJUSTING | ₹ 7 | 1 | ||
| 15 | B0YF61410000 | GUARD BRUSH 1 | ₹ 156 | 1 | ||

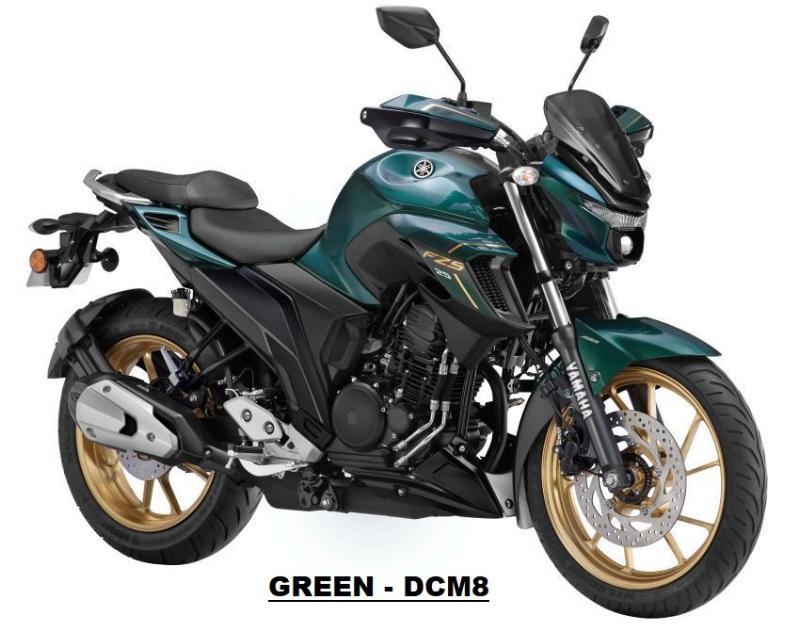

| 16A | B0YXF61400P0 | COVER HANDLE UPPER | ₹ 335 | 1 | FOR DCM8 | |

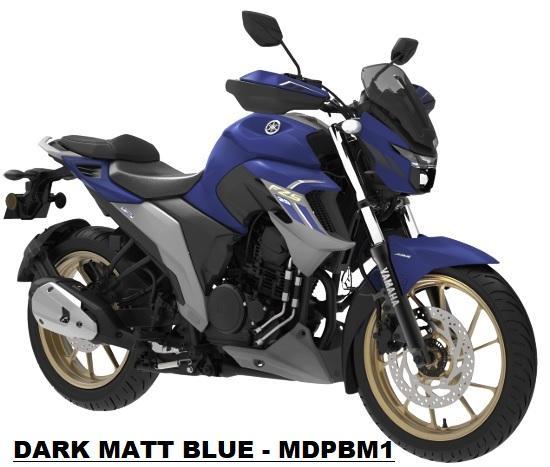

| 16B | B0YXF61400P1 | COVER HANDLE UPPER | ₹ 335 | 1 | FOR MDPBM1 | |

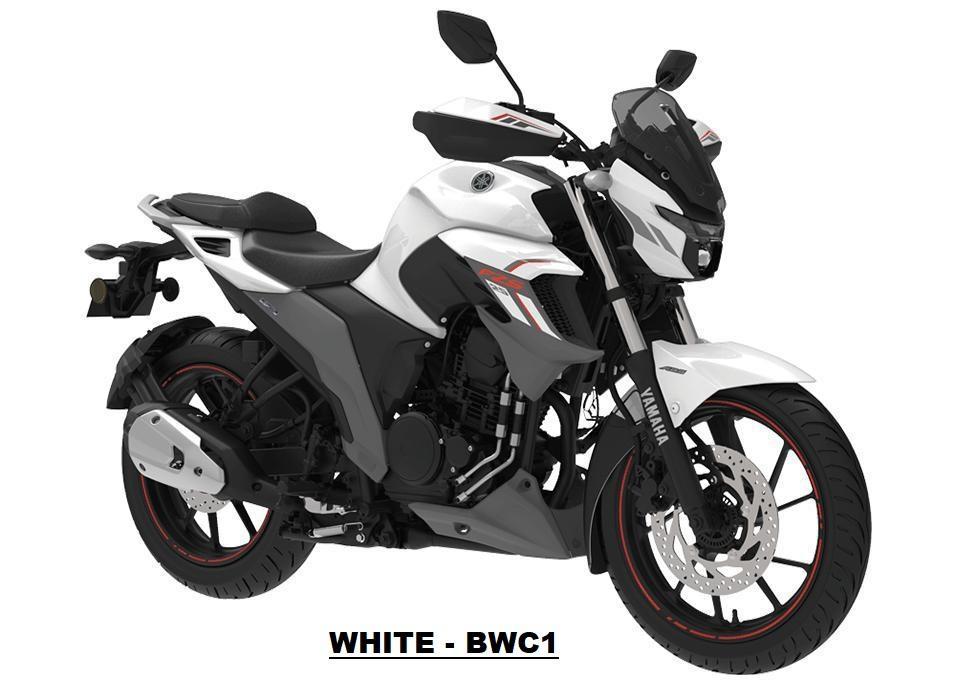

| 16C | B0YXF61400P2 | COVER HANDLE UPPER | ₹ 335 | 1 | FOR BWC1 | |
| 17A | B0YF622M0000 | GRAPHIC 3 | ₹ 127 | 1 | FOR DCM8 | |
| 17B | B0YF622M1000 | GRAPHIC 3 | ₹ 127 | 1 | FOR MDPBM1 | |
| 17C | B0YF622M2000 | GRAPHIC 3 | ₹ 127 | 1 | FOR BWC1 | |
| 18 | 977075001200 | SCREW TRUSS HD TAP | ₹ 5 | 2 | ||
| 19 | 901830581800 | NUT SPRING | ₹ 9 | 2 | ||
| 20 | B0YF61420000 | GUARD BRUSH 2 | ₹ 156 | 1 | ||
| 21A | B0YXF61C00P0 | COVER HANDLE UPPER | ₹ 335 | 1 | FOR DCM8 | |
| 21B | B0YXF61C00P1 | COVER HANDLE UPPER | ₹ 335 | 1 | FOR MDPBM1 | |
| 21C | B0YXF61C00P2 | COVER HANDLE UPPER | ₹ 335 | 1 | FOR BWC1 | |
| 22A | B0YF622N0000 | GRAPHIC 1 | ₹ 127 | 1 | FOR DCM8 | |
| 22B | B0YF622N1000 | GRAPHIC 1 | ₹ 127 | 1 | FOR MDPBM1 | |
| 22C | B0YF622N2000 | GRAPHIC 1 | ₹ 127 | 1 | FOR BWC1 | |
| 23 | 977075001200 | SCREW TRUSS HD TAP | ₹ 5 | 2 | ||
| 24 | 901830581800 | NUT SPRING | ₹ 9 | 2 | ||
| 25 | B0YF62230000 | BRACKET HANDLE 1 | ₹ 95 | 1 | ||
| 26 | 90109068B300 | BOLT | ₹ 19 | 2 | ||
| 27 | B0YF62240000 | BRACKET HANDLE 2 | ₹ 95 | 1 | ||
| 28 | 90109068B300 | BOLT | ₹ 19 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The command center of the Yamaha FZ 25 is the handlebar assembly, which provides the rider with direct control over the motorcycle. This system includes the structural handle comp and the various cables that connect inputs to the engine and clutch. The throttle cable assy ensures instant engine response, while the cable clutch allows for smooth gear transitions during heavy Indian traffic. For a secure and comfortable grip, the grip assy provides a non slip surface that reduces hand strain during long tours. This assembly also integrates brush guards to protect the rider hands from wind and debris. Durable outer jackets protect the internal wires from moisture and dust, preventing any fraying or sticking. Every component, from the wire adjusting nuts to the end grips, contributes to a refined feel at the handlebars. Maintaining these cables ensures the motorcycle remains responsive, allowing the pilot to stay in direct touch with the engine and transmission on every single journey across the subcontinent.
