FENDER
B0Y2
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

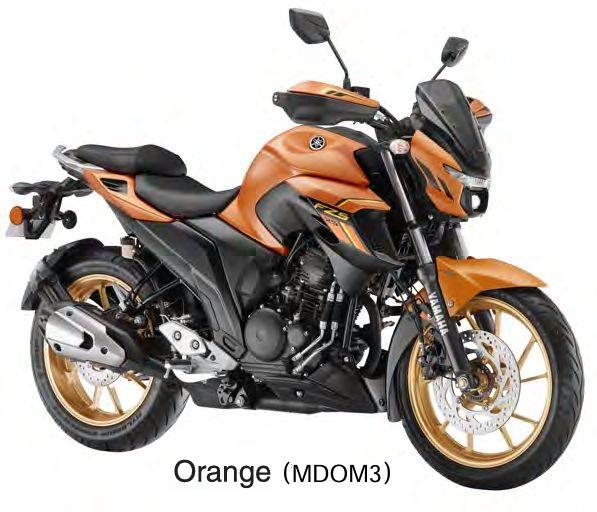

| 1A | B9XXF15100P5 | FENDER FRONT | ₹ 991 | 1 | FOR MDOM3 | |

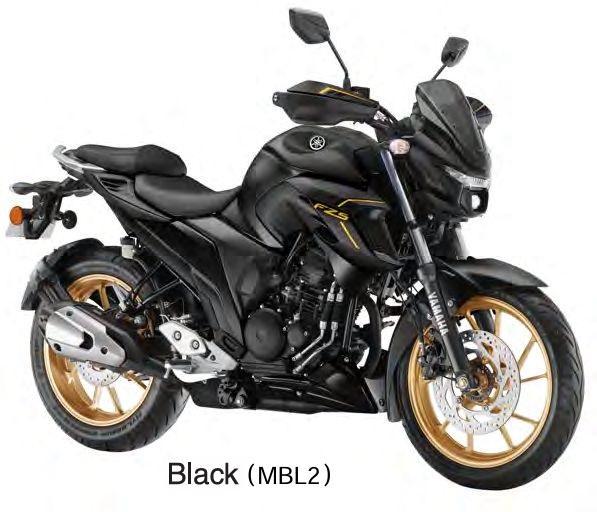

| 1B | B9XXF15100P6 | FENDER FRONT | ₹ 991 | 1 | FOR MBL2 | |
| 2 | B9EF843G0000 | GRAPHIC 3 | ₹ 12 | 2 | ||
| 3 | 90387068C500 | COLLAR | ₹ 8 | 4 | ||
| 4 | 904800880100 | GROMMET | ₹ 10 | 4 | ||
| 5 | 958220602000 | BOLT FLANGE | ₹ 5 | 2 | ||
| 6 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 7 | B97F16110100 | FENDER REAR | ₹ 207 | 1 | ||
| 8 | 905200780600 | DAMPER PLATE | ₹ 8 | 1 | ||
| 9 | 20PF83710000 | DAMPER | ₹ 3 | 3 | ||
| 10 | 970120601400 | BOLT | ₹ 5 | 2 | ||
| 11 | 903870604800 | COLLAR | ₹ 7 | 2 | ||
| 12 | 956020620000 | NUT, SELF-LOCKING | ₹ 0 | 4 | ||
| 13 | 90387068H800 | COLLAR | ₹ 5 | 4 | ||
| 14 | B97F16400000 | REAR STAY COMP. | ₹ 190 | 1 | ||
| 15 | 901110685900 | BOLT HEX. SOCKET BUTTON | ₹ 7 | 1 | ||
| 16 | B97F16290000 | GUARD MUD | ₹ 78 | 1 | ||
| 17 | 21CF17170000 | DAMPER | ₹ 2 | 1 | ||
| 18 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 19 | B97F163A0000 | COVER REAR FENDER 1 | ₹ 55 | 1 | ||
| 20 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 21 | 977075001200 | SCREW TRUSS HD TAP | ₹ 5 | 2 | ||
| 22 | 902690681300 | RIVET | ₹ 8 | 2 | ||
| 23 | B9XF81000000 | TOOL KIT | ₹ 74 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protection from road spray and debris is the primary duty of the fender system on the Yamaha FZ 25, ensuring the rider and the machine stay clean. The fender front is positioned close to the tire to deflect mud and water away from the engine, while the fender rear shields the tail light and passenger. This is especially important during the heavy rains of the Indian monsoon season. Every collar, grommet, and bolt flange is designed to provide a stable mounting that resists vibrations on uneven roads. The assembly also includes a guard mud and cover rear fender to reinforce the structure. High impact materials ensure the fenders remain durable and maintain their shape despite constant use. Maintaining these parts is essential for keeping the motorcycle clean and preventing damage to sensitive components. The design complements the aggressive styling of the street fighter, ensuring it looks ready for action in all weather conditions on every single journey across the country.
