FUEL TANK 2
B2N1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

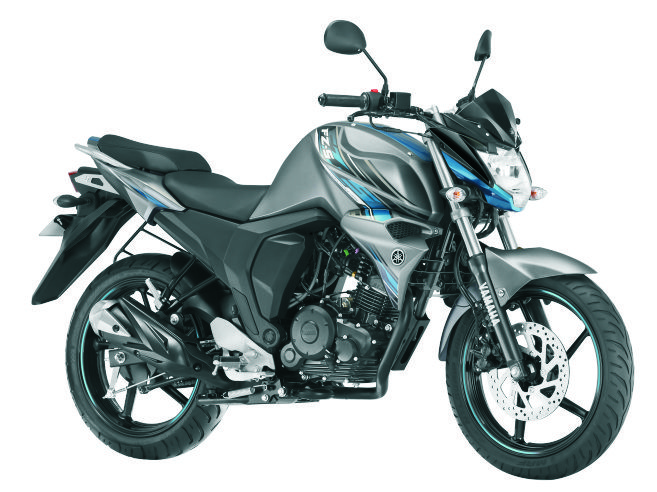

| 1A | 2GSXF412D0P5 | TANK SIDE COVER 1 -MNM3(MAT GR | ₹ 1283 | 1 | FOR MNM3 | |

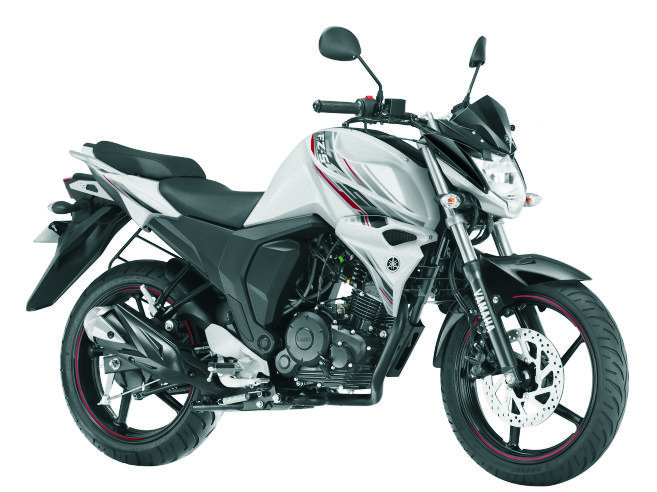

| 1B | 2GSXF412E0P1 | TANK SIDE COVER 1-BWC1(WHITE) | ₹ 1283 | 1 | FOR BWC1 | |

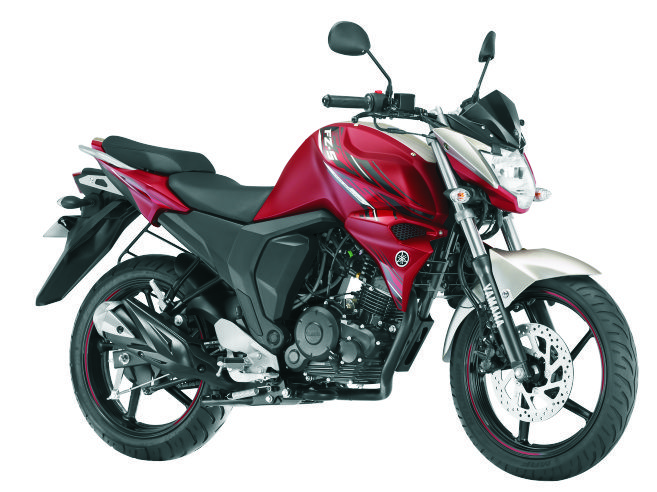

| 1C | 2GSXF412F0P6 | TANK SIDE COVER 1-MDRM4(DULL R | ₹ 1283 | 1 | FOR MDRM4 | |

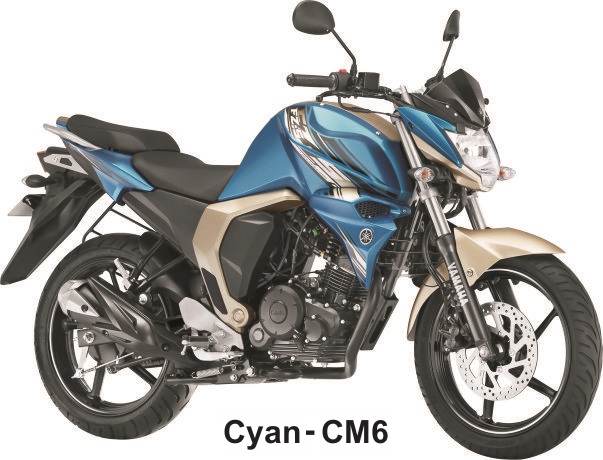

| 1D | 2GSXF412G0P7 | TANK SIDE COVER 1 -CM6(CYAN ME | ₹ 1283 | 1 | FOR CM6 | |
| 2A | 2GSXF413D0P5 | TANK SIDE COVER 2 -MNM3(MAT GR | ₹ 1283 | 1 | FOR MNM3 | |
| 2B | 2GSXF413E0P1 | TANK SIDE COVER 2-BWC1(WHITE) | ₹ 1283 | 1 | FOR BWC1 | |
| 2C | 2GSXF413F0P6 | TANK SIDE COVER 2-MDRM4(DULL R | ₹ 1283 | 1 | FOR MDRM4 | |
| 2D | 2GSXF413G0P7 | TANK SIDE COVER 2 -CM6(CYAN ME | ₹ 1283 | 1 | FOR CM6 | |
| 3 | 904801339800 | GROMMET | ₹ 10 | 2 | ||
| 4 | 904800155900 | GROMMET | ₹ 10 | 2 | ||
| 5 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 8 | ||
| 6 | 902020518000 | WASHER PLATE | ₹ 28 | 8 | ||
| 7 | 901830581800 | NUT SPRING | ₹ 9 | 8 | ||
| 8 | 45SF411G0000 | HOOK SIDE COVER 1 | ₹ 15 | 1 | ||
| 9 | 45SF411H0000 | HOOK SIDE COVER 2 | ₹ 20 | 1 | ||
| 10 | 45SF411J0000 | DAMPER SIDE COVER | ₹ 9 | 2 | ||
| 11 | 958070601200 | BOLT FLANGE | ₹ 8 | 2 | ||
| 12 | 2GSF41240000 | AIR SHROUD | ₹ 124 | 1 | ||
| 13 | 903870604800 | COLLAR | ₹ 7 | 2 | ||
| 14 | 958270601400 | BOLT FLANGE | ₹ 18 | 2 | ||
| 15A | 2GSXF13F50P5 | GUIDE AIR 1-MNM3(MAT GREY) | ₹ 678 | 1 | FOR MNM3 | |
| 15B | 2GSXF13F60P4 | GUIDE AIR 1 -BWC1(WHITE) | ₹ 678 | 1 | FOR BWC1 | |
| 15C | 2GSXF13F70P6 | GUIDE AIR 1 -MDRM4(DULL RED) | ₹ 678 | 1 | FOR MDRM4 | |
| 15D | 2GSXF13F80P1 | GUIDE AIR 1-CM6(CYAN METALLIC | ₹ 678 | 1 | FOR CM6 | |
| 16 | 5YYF413B0000 | TUNNING FORK | ₹ 50 | 1 | ||
| 17A | 2GSXF13J50P5 | GUIDE AIR 2-MNM3(MAT GREY) | ₹ 678 | 1 | FOR MNM3 | |
| 17B | 2GSXF13J60P4 | GUIDE AIR 2 -BWC1(WHITE) | ₹ 678 | 1 | FOR BWC1 | |
| 17C | 2GSXF13J70P6 | GUIDE AIR 2 -MDRM4(DULL RED) | ₹ 678 | 1 | FOR MDRM4 | |
| 17D | 2GSXF13J80P1 | GUIDE AIR 2-CM6(CYAN METALLIC | ₹ 678 | 1 | FOR CM6 | |
| 18 | 5YYF413B0000 | TUNNING FORK | ₹ 50 | 1 | ||
| 19 | 977025001200 | SCREW TAPPING | ₹ 11 | 6 | ||
| 20 | 901830580700 | NUT SPRING | ₹ 9 | 6 | ||
| 21 | 901830506700 | NUT SPRING | ₹ 8 | 4 | ||
| 22 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The aggressive personality of the Yamaha FZS V2 is highlighted by the Fuel Tank Two assembly which features the outer body panels. These components include the Tank side cover plus the Guide air which give the bike its muscular shoulder look. The assembly is adorned with the iconic Tuning fork emblem for a factory finish. Every Nut spring plus Bolt flange ensures that the covers remain rattle free during high speed operation. The Air shroud plus Guide air panels are designed to channel cool air toward the engine to assist in heat dissipation. These panels are secured using specialized Screw round tapping plus resilient Grommet hardware. The stay plus collar components ensure that the bodywork remains perfectly aligned with the frame. Using genuine covers ensures a perfect color match plus impact resistance. This assembly represents the outer skin that defines the streetfighter aesthetic of the motorcycle. It protects the internal fuel reservoir while enhancing style.
