SIDE COVER

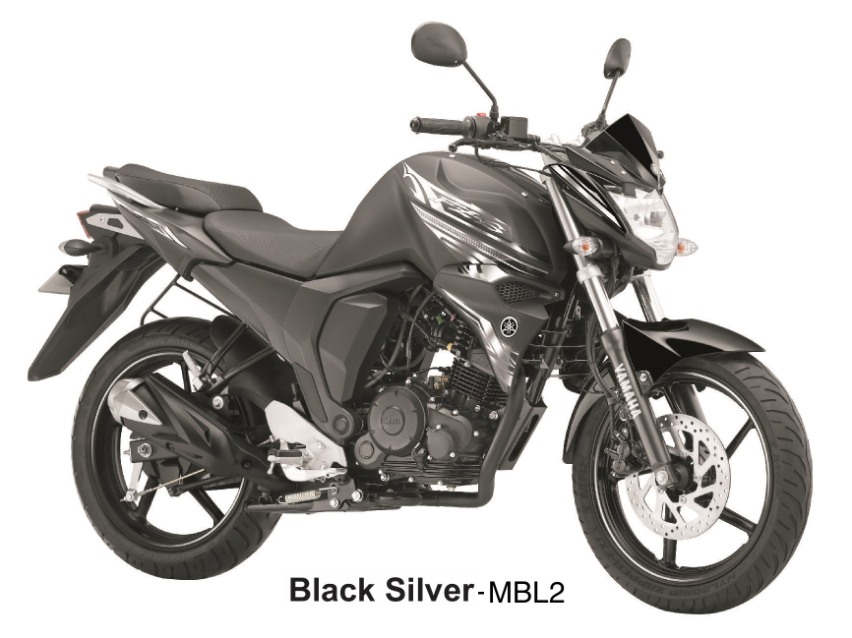

B2N3/B2N4
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2GSF17110000 | COVER SIDE 1 | ₹ 165 | 1 | ||
| 2 | 2GSF172A01P1 | PANEL 1 | ₹ 377 | 1 | FOR MBL2 | |
| 3 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 4 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 5 | 2GSF17210000 | COVER SIDE 2 | ₹ 198 | 1 | ||
| 6 | 2GSF172F01P1 | PANEL 2-MBL2 | ₹ 377 | 1 | FOR MBL2 | |
| 7 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 8 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 9 | 21CF17170000 | DAMPER | ₹ 2 | 2 | ||
| 10 | 2GSXF17390P4 | COVER SIDE 3 -MBL2(MAT BLACK) | ₹ 451 | 1 | FOR MBL2 | |
| 11 | 2GSXF17490P4 | COVER SIDE 4 -MBL2(MAT BLACK) | ₹ 451 | 1 | FOR MBL2 | |
| 12 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 13 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 14 | 902690681400 | RIVET | ₹ 8 | 2 | ||
| 15 | 2GSXF17C00P6 | COVER SIDE 5 - SMX(BLACK METAL | ₹ 267 | 1 | FOR MBL2 | |
| 16 | 2SPF836B0000 | TUNING FORK MARK | ₹ 20 | 1 | ||
| 17 | 902690681400 | RIVET | ₹ 8 | 2 | ||
| 18 | 901190613700 | BOLT WITH WASHER | ₹ 9 | 4 | ||
| 19 | 985070601400 | SCREW PAN HEAD | ₹ 9 | 2 | ||
| 20 | 902010605500 | WASHER PLATE | ₹ 3 | 2 | ||
| 21 | 904800155800 | GROMMET | ₹ 10 | 2 | ||
| 22 | 2GSF171L0000 | MOLE SIDE COVER 1 | ₹ 23 | 1 | ||
| 23 | 2GSF171M0000 | MOLE SIDE COVER 2 | ₹ 23 | 1 | ||
| 24 | 901830506700 | NUT SPRING | ₹ 8 | 2 | ||
| 25 | 2GSF17320000 | SEAL 1 | ₹ 2 | 1 | ||
| 26 | 2GSF17350000 | SEAL 2 | ₹ 2 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The streamlined profile of the Yamaha FZS V2 is achieved through the sleek Side Cover assembly. These panels include the Cover side together with the Panel which enclose the internal electrical components. Every cover is secured using specialized Nut spring and Screw tapping hardware for a perfect fit. The use of resilient Damper and Grommet components prevents unwanted rattling or vibration during the ride. These panels are also adorned with high quality rivets to ensure a factory finish. The assembly also includes the Mole side cover together with the Tuning fork mark for branding. Every Bolt with washer and specialized Seal ensures that the panels stay aligned with the frame. Using genuine side covers ensures that the impact resistant materials protect the internal parts from dust and moisture. These components are painted to match the aggressive color schemes perfectly, providing a finished look that stands out on the road during every single commute.
