B2U9
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

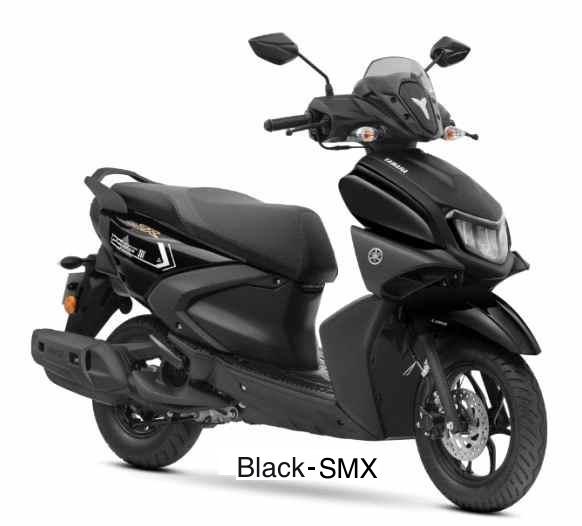

| 1A | B2UXF15110P1 | FENDER FRONT | ₹ 691 | 1 | FOR SMX | |

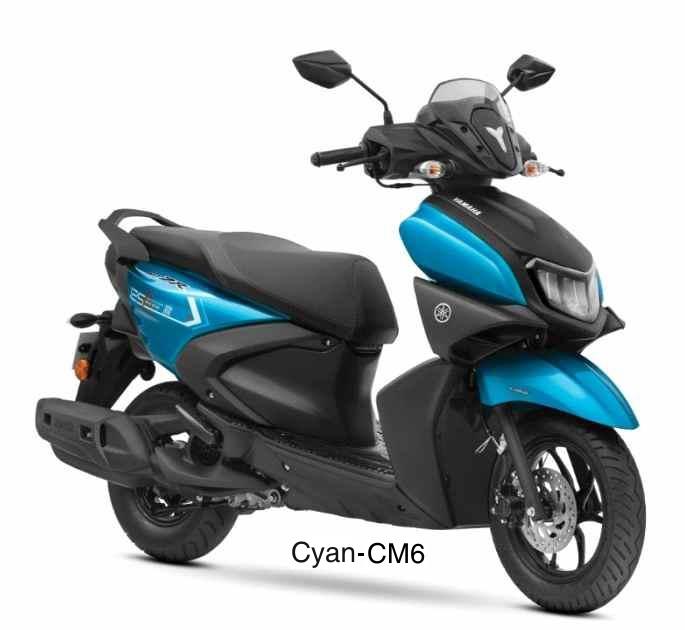

| 1B | B2UXF15110P2 | FENDER FRONT | ₹ 691 | 1 | FOR CM6 | |

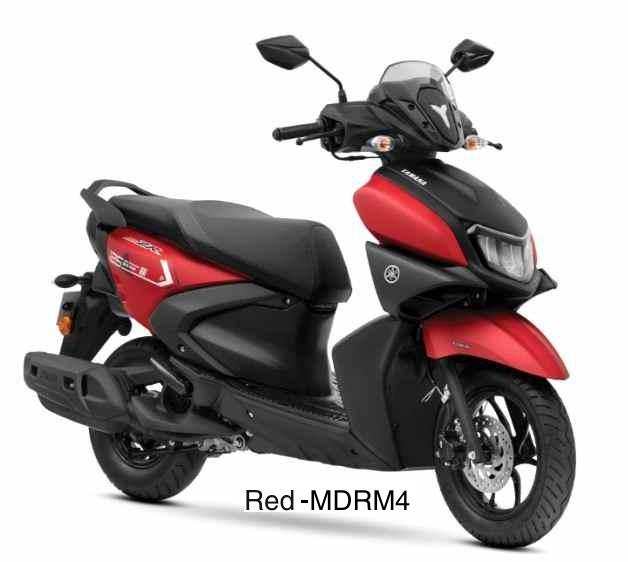

| 1C | B2UXF15110P3 | FENDER FRONT | ₹ 691 | 1 | FOR MDRM4 | |

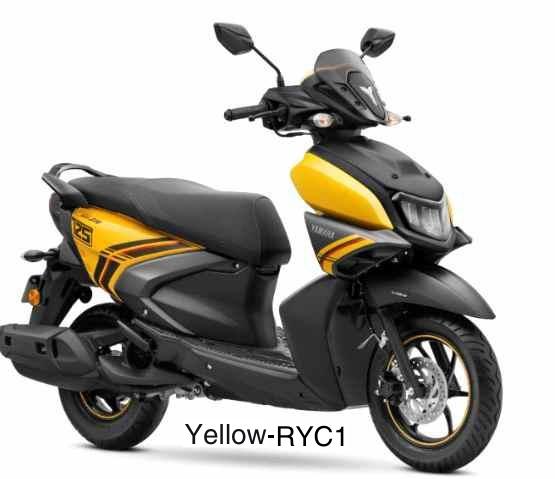

| 1D | B2UXF15110P4 | FENDER FRONT | ₹ 691 | 1 | FOR RYC | |

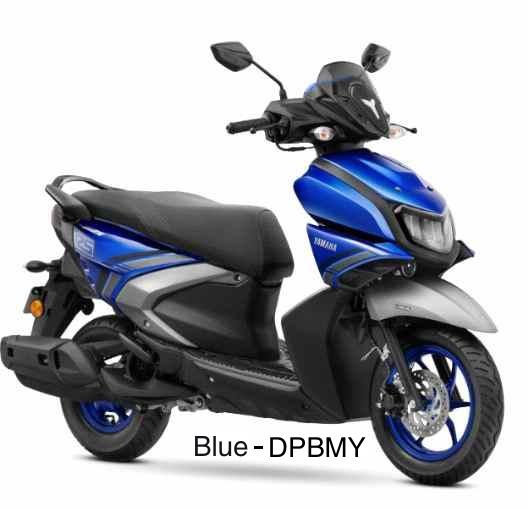

| 1E | B2UXF15110P7 | FR.FENDER SUB ASSY | ₹ 691 | 1 | FOR DPBMY | |
| 2 | B7JF15410000 | DAMPER 1 | ₹ 10 | 1 | ||
| 3 | B7JF15693000 | GRAPHIC 1 | ₹ 10 | 2 | ||
| 4 | 90387068T800 | COLLAR | ₹ 16 | 3 | ||
| 5 | 958120601600 | BOLT FLANGE | ₹ 3 | 3 | ||
| 6 | B2UF16110000 | FENDER REAR | ₹ 317 | 1 | ||
| 7 | 90387068S100 | COLLAR | ₹ 12 | 4 | ||
| 8 | 958120601400 | BOLT FLANGE | ₹ 5 | 4 | ||
| 9 | B7JF16210100 | FLAP | ₹ 25 | 1 | ||
| 10 | B7JF16910100 | FLAP | ₹ 32 | 1 | ||
| 11 | 901830506700 | NUT SPRING | ₹ 8 | 1 | ||
| 12 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 13 | 2FCH51110000 | REFLECTOR FRONT 1 | ₹ 23 | 2 | ||
| 14 | 957070550000 | NUT FLANGE | ₹ 1 | 2 | ||
| 15 | B2UF16510000 | COVER REAR FENDER | ₹ 42 | 1 | ||
| 16 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Shield your RayZR from the elements with the B2U9 Fender assembly, designed for ultimate coverage and durability. This kit features the Fender Front and the specialized FR.FENDER SUB ASSY, alongside the Fender Rear for complete road spray protection. Each piece is reinforced with high-strength Bolt Flanges and Collars to maintain structural rigidity at all speeds. Styling is enhanced by a genuine Graphic 1 decal and the essential Reflector Front 1 for 24-hour safety. Functional defense is provided by the Flap and Cover Rear Fender, which work together to divert mud away from the rider and mechanical components. Every Nut Spring, GROMMET, and Screw Tapping is engineered to create a secure, vibration-proof mount. By using genuine Yamaha high-impact plastics, you ensure that your fenders will not sag or crack over time. This is a technical storyteller of protection, providing you with the purchase confidence and clarity of an OEM bodywork system that fits perfectly and performs brilliantly, keeping your scooter clean.
