LEG SHIELD
0
B2V2
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B62F83110000 | LEG SHIELD 1 -BLACK | ₹ 430 | 1 | ||
| 2 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 3 | 903870782600 | COLLAR | ₹ 12 | 2 | ||
| 4 | 958120601400 | BOLT, FLANGE | ₹ 5 | 2 | ||

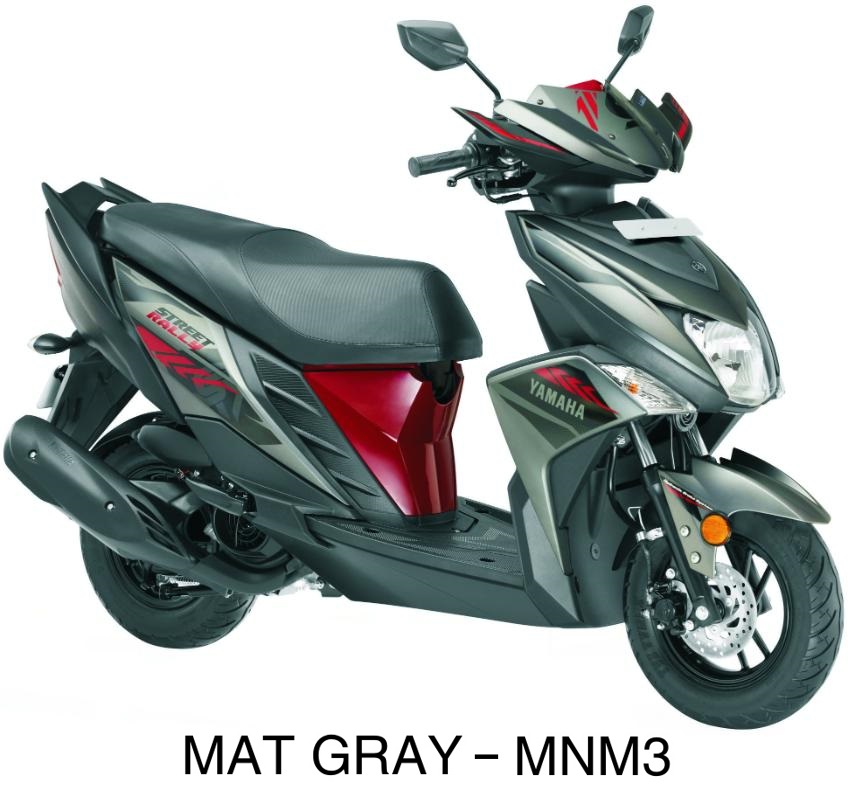

| 5A | B62XF33910P2 | PANEL FRONT SUB ASSY MNM3 | ₹ 670 | 1 | FOR MNM3 | |

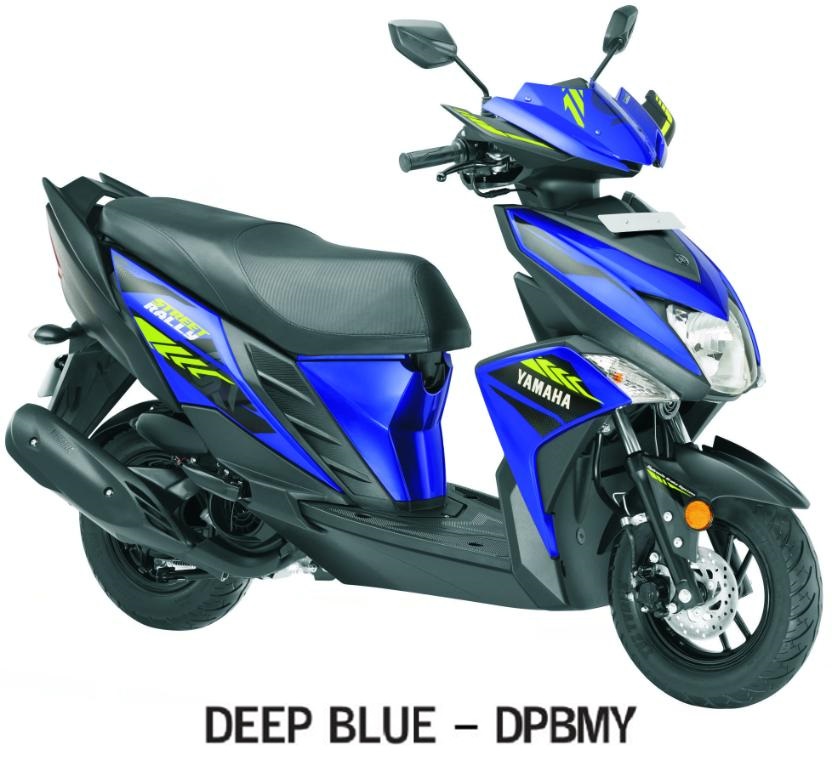

| 5B | B62XF33900P5 | PANEL FRONT SUB ASSY DPBMY | ₹ 670 | 1 | FOR DPBMY | |
| 6 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 7A | B2VF83930000 | GRAPHIC 3 | ₹ 74 | 3 | FOR MNM3 | |
| 7B | B2VF83931000 | GRAPHIC 3 | ₹ 74 | 3 | FOR DPBMY | |
| 8A | B2VF83940000 | GRAPHIC 4 | ₹ 74 | 4 | FOR MNM3 | |
| 8B | B2VF83941000 | GRAPHIC 4 | ₹ 74 | 4 | FOR DPBMY | |
| 9 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 10 | B62F839R0000 | PANEL ACCESSORY -BLACK | ₹ 140 | 1 | ||
| 11 | 904801481900 | GROMMET | ₹ 8 | 2 | ||
| 12A | B62XF83H00P5 | PANEL COMP 1 MNM3 | ₹ 670 | 1 | FOR MNM3 | |
| 12B | B62XF83H00P6 | PANEL COMP 1 DPBMY | ₹ 670 | 1 | FOR DPBMY | |
| 13 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 14A | B2VF83910000 | GRAPHIC 1 | ₹ 156 | 1 | FOR MNM3 | |
| 14B | B2VF83911000 | GRAPHIC 1 | ₹ 156 | 1 | FOR DPBMY | |
| 15 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 16A | B62XF83J00P5 | PANEL COMP 2 MNM3 | ₹ 670 | 1 | FOR MNM3 | |
| 16B | B62XF83J00P6 | PANEL COMP 2 DPBMY | ₹ 670 | 1 | FOR DPBMY | |
| 17 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 18A | B2VF83920000 | GRAPHIC 2 | ₹ 156 | 2 | FOR MNM3 | |
| 18B | B2VF83921000 | GRAPHIC 2 | ₹ 156 | 2 | FOR DPBMY | |
| 19 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 20 | B62F83120000 | LEG SHIELD 2 -BLACK | ₹ 515 | 1 | ||
| 21 | 977025001600 | SCREW TAPPING | ₹ 10 | 15 | ||
| 22 | 901090620200 | BOLT | ₹ 13 | 1 | ||
| 23 | 1GCF61990100 | PLUG, BLIND | ₹ 25 | 1 | ||
| 24 | B62F836K0000 | PANEL, INNER 1 -BLACK | ₹ 158 | 1 | ||
| 25 | B62F83850000 | COVER, UNDER -BLACK | ₹ 287 | 1 | ||
| 26 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 27 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 28 | B62F15520000 | FENDER INNER | ₹ 320 | 1 | ||
| 29 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 30 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 31 | 1GCF34870000 | STAY PLATE | ₹ 35 | 1 | ||
| 32 | 958070602000 | BOLT FLANGE | ₹ 5 | 2 | ||
| 33 | 90387066J900 | COLLAR | ₹ 8 | 2 | ||
| 34 | 902010607800 | WASHER PLATE | ₹ 10 | 2 | ||
| 35 | 9570N0650000 | NUT FLANGE | ₹ 2 | 2 | ||
| 36 | 5TSF836B0200 | TUNING FORK MARK | ₹ 23 | 1 | ||
| 37 | 2SPF15680000 | LABEL WARNING | ₹ 6 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA B2V2 STREET RALLY Series LEG SHIELD
