FUEL TANK 2
B3N4
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2GSXF412H0P2 | TANK SIDE COVER 1- MBL2(MAT BL | ₹ 1283 | 1 | FOR MBL2 | |
| 2 | 2GSXF413H0P2 | TANK SIDE COVER 2- MBL2(MAT B | ₹ 1283 | 1 | FOR MBL2 | |
| 3 | 904801339800 | GROMMET | ₹ 10 | 2 | ||
| 4 | 904800155900 | GROMMET | ₹ 10 | 2 | ||
| 5 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 8 | ||
| 6 | 902020518000 | WASHER PLATE | ₹ 28 | 8 | ||
| 7 | 901830581800 | NUT SPRING | ₹ 9 | 8 | ||
| 8 | 45SF411G0000 | HOOK SIDE COVER 1 | ₹ 15 | 1 | ||
| 9 | 45SF411H0000 | HOOK SIDE COVER 2 | ₹ 20 | 1 | ||
| 10 | 45SF411J0000 | DAMPER SIDE COVER | ₹ 9 | 2 | ||
| 11 | 958070601200 | BOLT FLANGE | ₹ 8 | 2 | ||
| 12 | 2GSF41240000 | AIR SHROUD | ₹ 124 | 1 | ||
| 13 | 903870604800 | COLLAR | ₹ 7 | 2 | ||
| 14 | 958270601400 | BOLT FLANGE | ₹ 18 | 2 | ||
| 15 | 2GSXF13F90P7 | GUIDE AIR 1-MBL2(MAT BLACK) | ₹ 795 | 1 | FOR MBL2 | |
| 16 | 5YYF413B0000 | TUNNING FORK | ₹ 50 | 1 | FOR MBL2 | |
| 17 | 2GSXF13J90P7 | GUIDE AIR 2 -MBL2(MAT BLACK) | ₹ 795 | 1 | ||
| 18 | 5YYF413B0000 | TUNNING FORK | ₹ 50 | 1 | ||
| 19 | 977025001200 | SCREW TAPPING | ₹ 11 | 6 | ||
| 20 | 901830580700 | NUT SPRING | ₹ 9 | 6 | ||
| 21 | 901830506700 | NUT SPRING | ₹ 8 | 4 | ||
| 22 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.

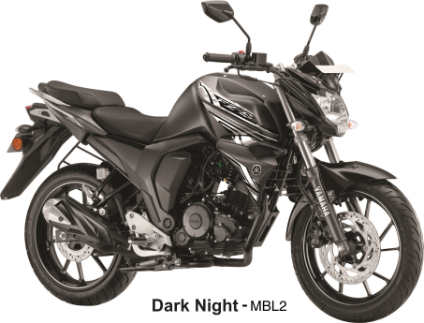

Description: - The aggressive streetfighter look of the Yamaha FZS Version Two is achieved through the Fuel Tank Two assembly. This collection includes the outer body panels like the Tank side cover together with the Guide air which give the bike its muscular shoulder presence. The assembly is adorned with the iconic Tuning fork emblem for a factory finish. Every Nut spring plus Bolt flange ensures the covers remain rattle free during high speed operation. The Air shroud is designed to channel cool air toward the engine head to assist in thermal management. These panels are secured using specialized screw round tapping together with resilient Grommet hardware. The collar components ensure that the bodywork remains perfectly aligned with the frame. Using genuine covers ensures a perfect color match plus impact resistance, protecting the internal fuel reservoir while enhancing the aesthetic style. It represents the outer skin that defines the modern character of the motorcycle.
