FENDER
0
B623
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

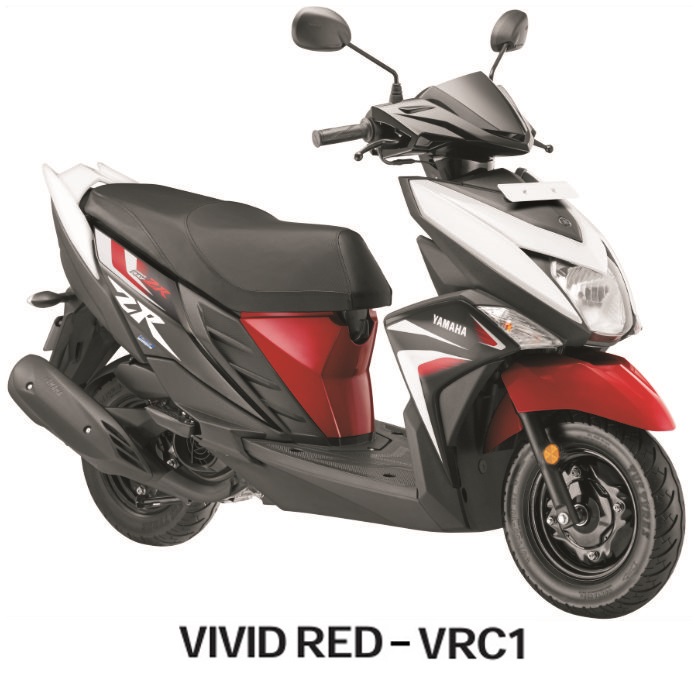

| 1A | B62F151100P0 | FENDER FRONT | ₹ 700 | 1 | FOR VRC1 | |

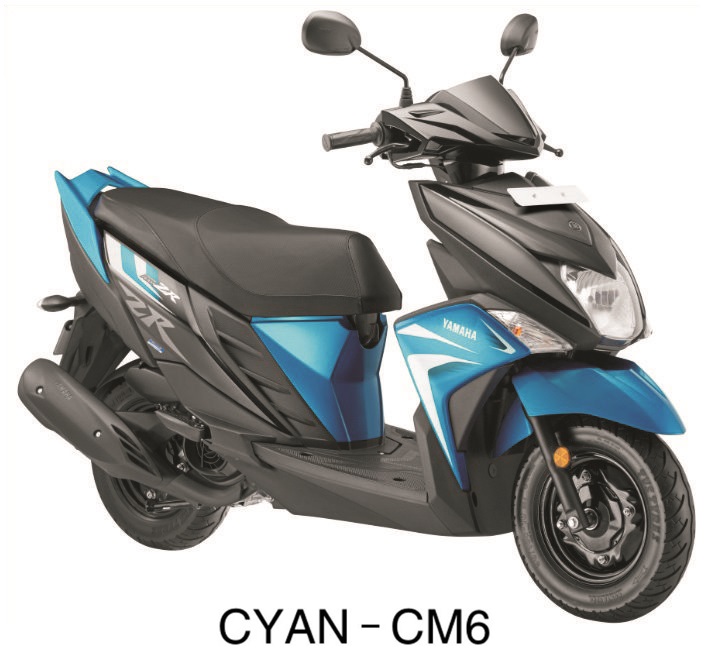

| 1B | B62F151100P1 | FENDER FRONT -CM6(CYAN METALL | ₹ 700 | 1 | FOR CM6 | |
| 2 | 90387068S100 | COLLAR | ₹ 14 | 3 | ||
| 3 | 958120601400 | BOLT, FLANGE | ₹ 5 | 3 | ||
| 4 | 1GCF16110000 | FENDER, REAR | ₹ 139 | 1 | ||
| 5 | 901090620200 | BOLT | ₹ 13 | 3 | ||
| 6 | 90387068M600 | COLLAR | ₹ 12 | 1 | ||
| 7 | 901190620900 | BOLT WITH WASHER | ₹ 17 | 1 | ||
| 8 | 1GCF16120000 | BRACKET REAR FENDER | ₹ 22 | 1 | ||
| 9 | 958120601400 | BOLT, FLANGE | ₹ 5 | 1 | ||
| 10 | B62F16290000 | GUARD MUD | ₹ 303 | 1 | ||
| 11 | 901090620200 | BOLT | ₹ 13 | 2 | ||
| 12 | 901190613700 | BOLT WITH WASHER | ₹ 9 | 2 | ||
| 13 | 2FSF16210000 | FLAP | ₹ 20 | 1 | ||
| 14 | 904641082900 | CLAMP | ₹ 6 | 1 | ||
| 15 | B62F163A0000 | COVER 1 (BLACK) | ₹ 27 | 1 | ||
| 16 | 5USH51100100 | REFLECTOR ASSY | ₹ 16 | 1 | ||
| 17 | 957020550000 | NUT FLANGE | ₹ 2 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA B623 RAYZR 110 Series FENDER
