STEERING HANDLE & CABLE
0
B625
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B62F61100000 | HANDLE COMP. -BLACK | ₹ 630 | 1 | ||
| 2 | 901051028300 | BOLT FLANGE | ₹ 24 | 1 | ||
| 3 | 956021020000 | NUT U FLANGE | ₹ 32 | 1 | ||
| 4 | 977025001600 | SCREW TAPPING | ₹ 10 | 3 | ||

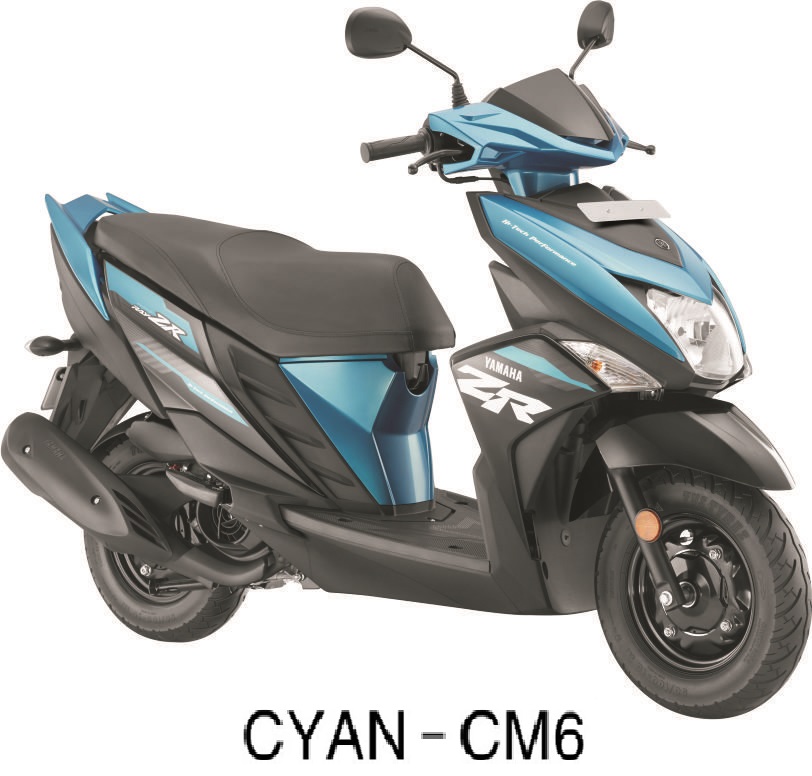

| 5A | B62XF61420P0 | COVER HANDLE UPPER CM6 | ₹ 610 | 1 | FOR CM6 | |

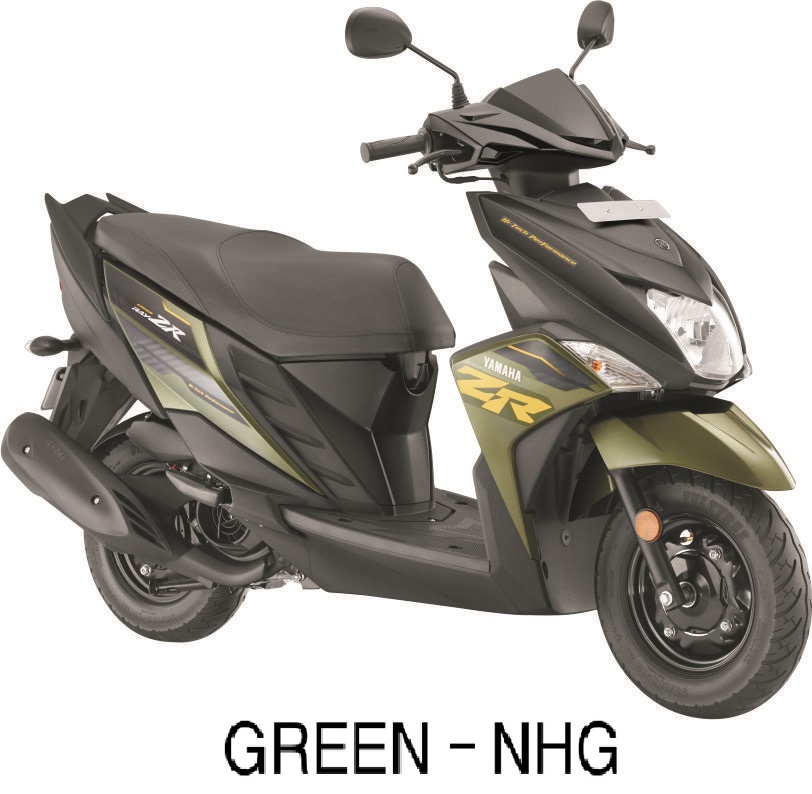

| 5B | B62XF61420P1 | COVER HANDLE UPPER MBL2 | ₹ 610 | 1 | FOR NHG,BWC1 | |
| 6 | B4GF45490000 | EMBLEM | ₹ 20 | 1 | ||
| 7 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 8 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 9 | B62F61451000 | COVER, HANDLEBAR UPPER 2 | ₹ 161 | 1 | ||
| 10 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 11 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 12 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 13 | B62H355900P0 | COVER METER -SMX(BLACK META | ₹ 140 | 1 | ||
| 14 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 15 | 2FSF62400000 | GRIP ASSY | ₹ 44 | 1 | ||
| 16 | 2FSF62810000 | CAP GRIP UPPER | ₹ 15 | 1 | ||
| 17 | 2FSF62820000 | CAP, GRIP UNDER | ₹ 15 | 1 | ||
| 18 | 985020502500 | SCREW PAN HEAD | ₹ 4 | 2 | ||
| 19 | 54BF62410000 | GRIP | ₹ 38 | 1 | ||
| 20 | B62F62800000 | REAR VIEW MIRROR ASSY 1 -LH | ₹ 205 | 1 | ||
| 21 | B62F62900000 | REAR VIEW MIRROR A | ₹ 185 | 1 | ||
| 22 | B2VF63110100 | CABLE THROTTLE 1 | ₹ 385 | 1 | ||
| 23 | 985020502000 | SCREW PAN HEAD | ₹ 4 | 1 | ||
| 24 | 904642480200 | CLAMP | ₹ 13 | 1 | ||
| 25 | BP1F63410000 | CABLE, BRAKE | ₹ 205 | 1 | ||
| 26 | 905011081700 | SPRING COMPRESSION | ₹ 8 | 1 | ||
| 27 | 901790686300 | NUT | ₹ 35 | 1 | ||
| 28 | 902491200800 | PIN | ₹ 20 | 1 | ||
| 29 | BP1F63510000 | CABLE BRAKE | ₹ 315 | 1 | ||
| 30 | 905011480000 | SPRING COMPRESSION | ₹ 8 | 1 | ||
| 31 | 901790680600 | NUT BRAKE | ₹ 17 | 1 | ||
| 32 | 902491200800 | PIN | ₹ 20 | 1 | ||
| 33 | 904643680000 | CLAMP | ₹ 8 | 1 | ||
| 34 | 1GCF637G0000 | HOLDER, WIRE | ₹ 18 | 1 | ||
| 35 | 1GCF62570000 | STOPPER | ₹ 5 | 1 | ||
| 36 | 950220604000 | BOLT FLANGE | ₹ 18 | 1 | ||
| 37 | 950220601000 | BOLT FLANGE | ₹ 15 | 1 | ||
| 38 | 2FSF63310000 | CABLE STARTER 1 | ₹ 185 | 1 | ||
| 39 | 1GCF63530000 | NUT ADJUSTING | ₹ 15 | 1 | ||
| 40 | 2FSF62790000 | GUIDE CABLE | ₹ 25 | 1 | ||
| 41 | 950220601200 | BOLT FLANGE | ₹ 8 | 2 | ||
| 42 | 2FSF637G0000 | HOLDER, WIRE | ₹ 15 | 1 | ||
| 43 | BP1F63610000 | CABLE BRAKE | ₹ 215 | 1 | ||
| 44 | 905011081700 | SPRING COMPRESSION | ₹ 8 | 1 | ||
| 45 | 901790686300 | NUT | ₹ 35 | 1 | ||
| 46 | 902491200800 | PIN | ₹ 20 | 1 | ||
| 47 | BP1F63720000 | COVER HANDLE LEVER 1 | ₹ 15 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA B625 RAYZR 110 DRUM Series STEERING HANDLE & CABLE
