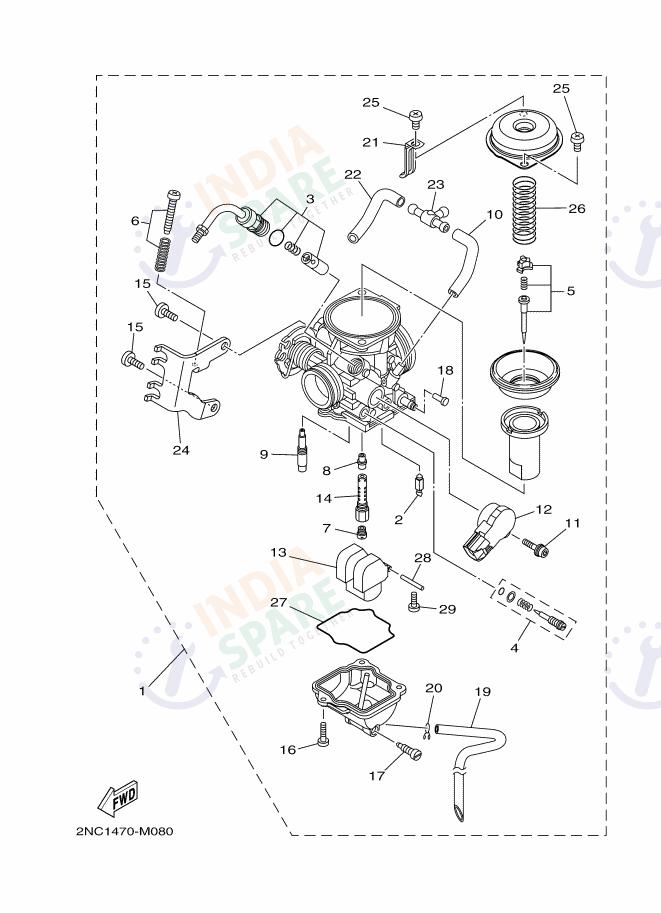

B627
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2RBE49011000 | CARBURETOR ASSY 1 | ₹ 4332 | 1 | ||
| 2 | 5LW141500000 | NEEDLE ASSY | ₹ 216 | 1 | ||
| 3 | 1GC1410A0100 | STARTER SET | ₹ 364 | 1 | ||
| 4 | 5P0141050000 | PILOT SCREW SET | ₹ 75 | 1 | ||
| 5 | 2RBE490J0000 | NEEDLE SET | ₹ 355 | 1 | ||
| 6 | 5LW141030000 | THROTTLE SCREW SET | ₹ 44 | 1 | ||
| 7 | 3G2E423E4500 | JET MAIN # 113.8 | ₹ 0 | 1 | ||
| 8 | 5P0141411300 | NOZZLE MAIN | ₹ 264 | 1 | ||
| 9 | 1GC141421200 | JET PILOT (# 12.5 | ₹ 356 | 1 | ||
| 10 | 1GCE41972000 | PIPE | ₹ 45 | 1 | ||
| 11 | 1PM142160000 | SCREW | ₹ 19 | 1 | ||
| 12 | 1PMH58850000 | THROTTLE SENSOR ASSY | ₹ 1105 | 1 | ||
| 13 | 5HK149850000 | FLOAT ASSY | ₹ 320 | 1 | ||
| 14 | 1GCE496A0000 | HOLDER NEEDEL JET | ₹ 99 | 1 | ||
| 15 | 985020501000 | SCREW PAN HEAD | ₹ 2 | 2 | ||
| 16 | 985800401400 | SCREW PAN HEAD | ₹ 60 | 3 | ||
| 17 | 1PM141910000 | PLUG DRAIN | ₹ 110 | 1 | ||
| 18 | 5LW149940000 | NET, FILTER | ₹ 205 | 1 | ||
| 19 | 1GCE41961000 | PIPE OVER FLOW 1 | ₹ 45 | 1 | ||
| 20 | 22F141390000 | CLIP PIPE(DRAIN HOSE) | ₹ 36 | 1 | ||
| 21 | 1GC141460000 | PLATE | ₹ 32 | 1 | ||
| 22 | 2RBE41970000 | PIPE | ₹ 0 | 1 | ||
| 23 | 1GCE42510000 | NIPPLE | ₹ 32 | 1 | ||
| 24 | 2SPE45710000 | BRACKET THROTTLE | ₹ 129 | 1 | ||
| 25 | 985020500800 | SCREW PAN HEAD | ₹ 15 | 2 | ||
| 26 | 1GCE45890000 | SPRING | ₹ 35 | 1 | ||
| 27 | 5HK141470000 | O.RING | ₹ 80 | 1 | ||
| 28 | 353141860000 | FLOAT PIN | ₹ 36 | 1 | ||
| 29 | 985020400800 | SCREW PAN HEAD | ₹ 5 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Master your machines fuel mixture with the B627 Carburetor assembly, specifically designed for the mechanical precision of the Yamaha RayZR. This kit features the high-performance Carburetor Assy 1 and a comprehensive Needle Assy and Needle Set for fine-tuning. Mechanical synchronization is managed via the Throttle Sensor Assy, Starter Set, and Float Assy. The kit includes all internal calibration parts: Jet Main # 113.8, Nozzle Main, and Jet Pilot (# 12.5). Every hardware detail is included, from the Screw Pan Head and Float Pin to the specialized Bracket Throttle and Nipple. Protection is bolstered by a high-fidelity Net Filter, while moisture management is handled by the Pipe Over Flow 1 and Clip Pipe. The assembly features an O.RING for a total seal and specialized Spring and Pilot Screw Set for smooth idling. These genuine parts offer the technical clarity and purchase confidence needed for a perfectly tuned engine. As a storyteller, you know performance starts with the right mixture; ensure yours is factory-perfect.
