B629
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

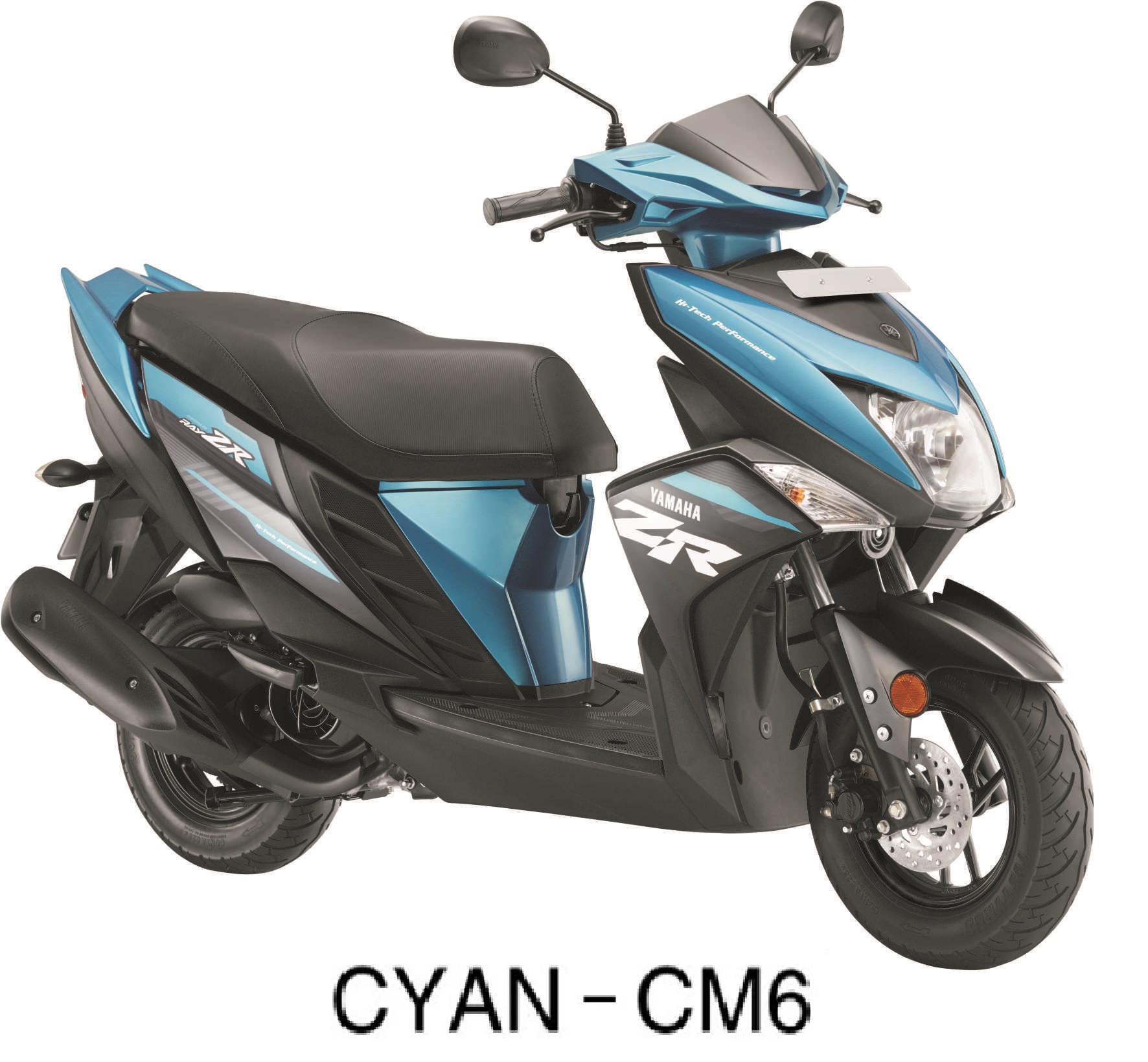

| 1A | B62F151120P2 | FENDER FRONT | ₹ 534 | 1 | FOR CM6 | |

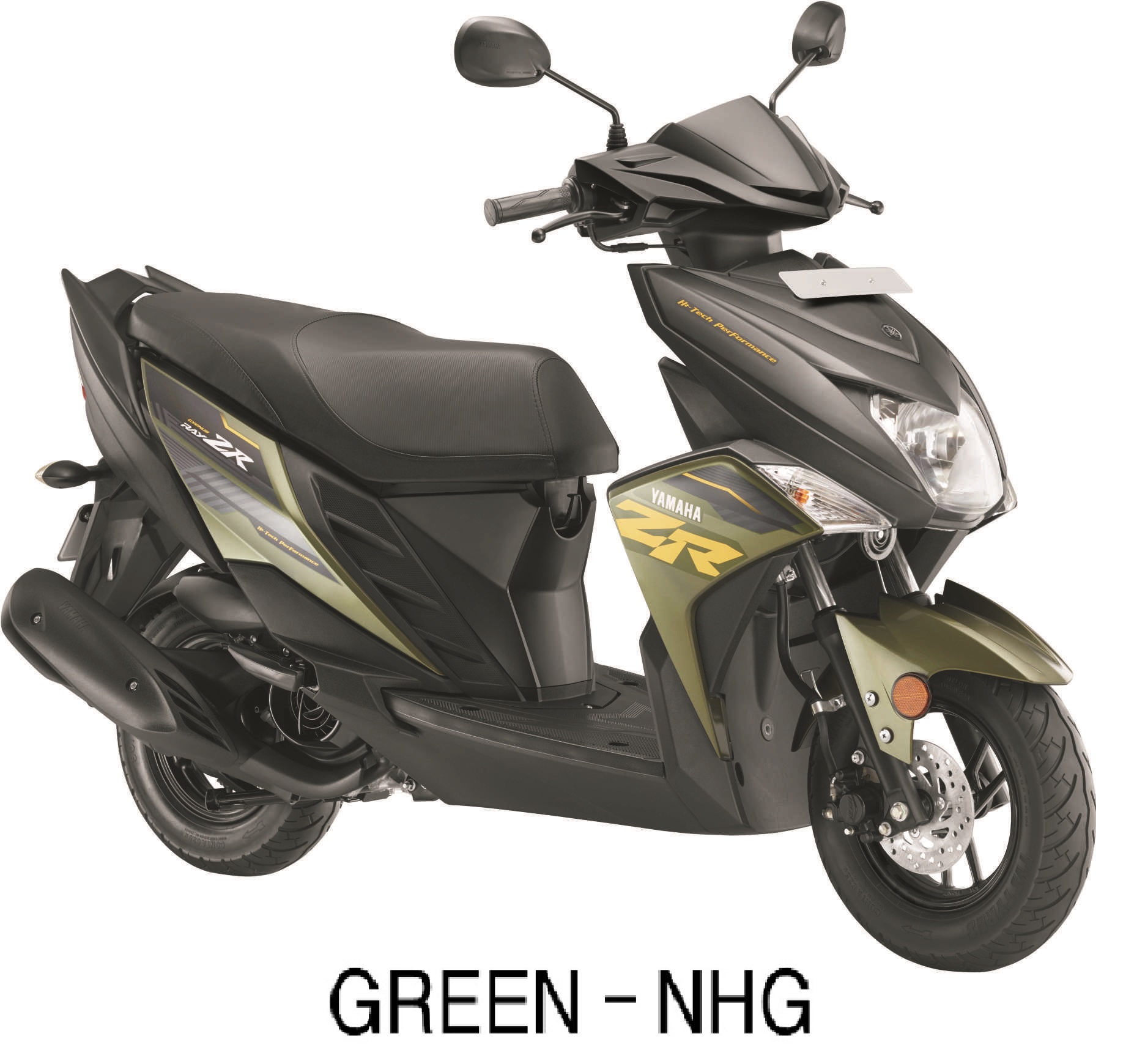

| 1B | B62F151120V9 | FENDER FRONT-NHG(NEW SPARKLE | ₹ 534 | 1 | FOR NHG | |

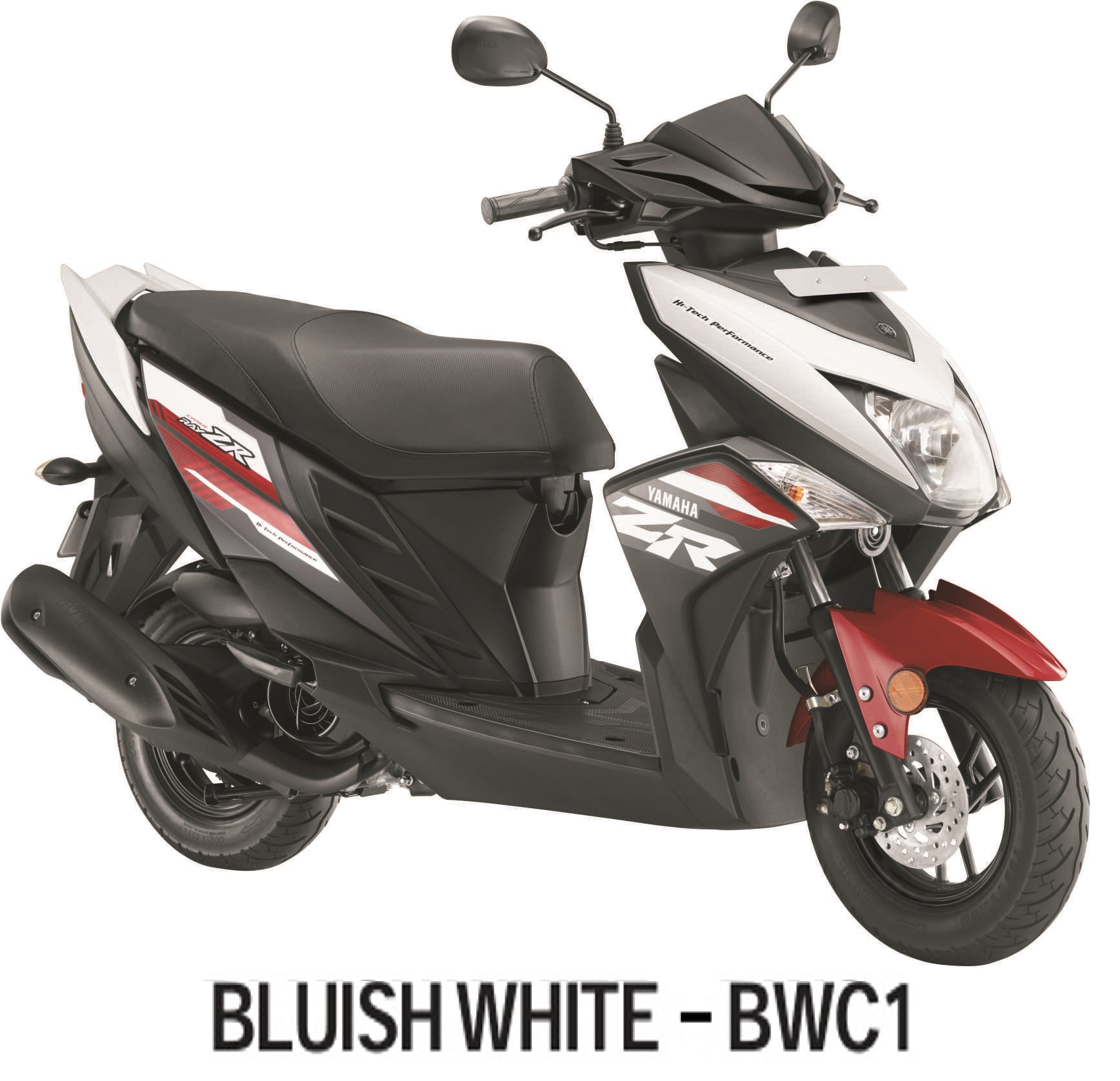

| 1C | B62F151120P3 | FENDER FRONT -VRC1(VIVID RED | ₹ 645 | 1 | FOR BWC1 | |

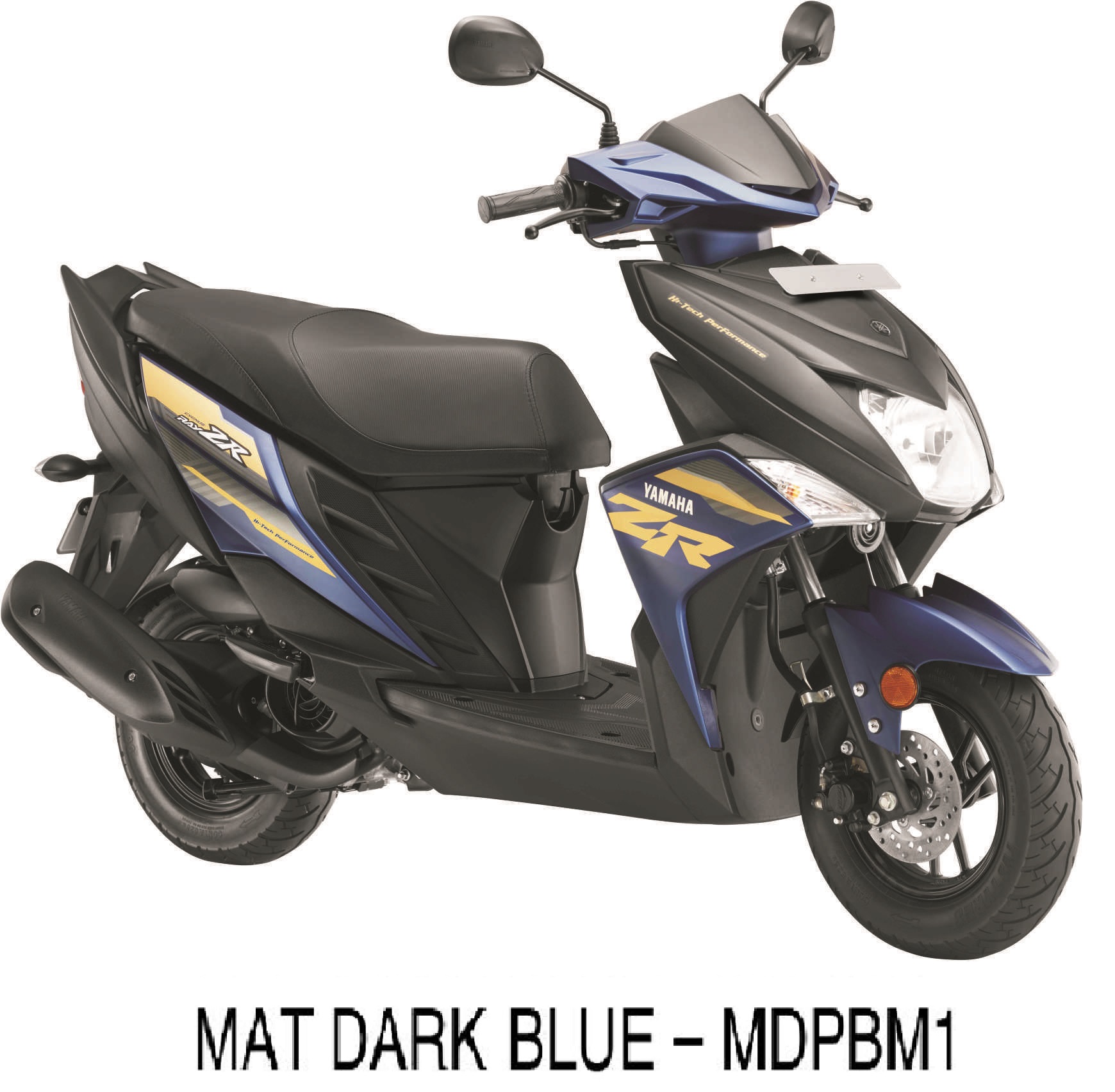

| 1D | B62F151120P4 | FENDER FRONT | ₹ 645 | 1 | FOR MDPBM1 | |
| 2 | 90387068C800 | COLLAR | ₹ 16 | 4 | ||
| 3 | 904801280500 | GROMMET | ₹ 8 | 4 | ||
| 4 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 4 | ||
| 5 | 2FCH51110000 | REFLECTOR FRONT 1 | ₹ 23 | 2 | ||
| 6 | 957070550000 | NUT FLANGE | ₹ 1 | 2 | ||
| 7 | 1GCF16110000 | FENDER REAR | ₹ 128 | 1 | ||
| 8 | 901090620200 | BOLT | ₹ 13 | 3 | ||
| 9 | 90387068M600 | COLLAR | ₹ 11 | 1 | ||
| 10 | 901190620900 | BOLT WITH WASHER | ₹ 17 | 1 | ||
| 11 | 1GCF16120000 | BRACKET REAR FENDER | ₹ 20 | 1 | ||
| 12 | 958120601400 | BOLT FLANGE | ₹ 5 | 1 | ||
| 13 | B62F16290000 | GUARD MUD | ₹ 279 | 1 | ||
| 14 | 901090620200 | BOLT | ₹ 13 | 2 | ||
| 15 | 901190613700 | BOLT WITH WASHER | ₹ 9 | 2 | ||
| 16 | 2FSF16210000 | FLAP | ₹ 18 | 1 | ||
| 17 | 904641082900 | CLAMP | ₹ 6 | 1 | ||
| 18 | B62F163A0000 | COVER 1 (BLACK) | ₹ 24 | 1 | ||
| 19 | 5USH51100100 | REFLECTOR ASSY | ₹ 14 | 1 | ||
| 20 | 957020550000 | NUT FLANGE | ₹ 2 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protect your Yamaha RayZR and maintain its clean lines with the B629 Fender assembly. This kit features multiple Fender Front options in SMX, NHG, and VRC1 finishes, all adorned with Graphic 1. The Fender Rear provides excellent coverage against road debris, supported by the Bracket Rear Fender and Guard Mud for total rear-end protection. Technical integrity is maintained with the specialized Collar, GROMMET, and Bolt Hex. Socket Button hardware. For safety and visibility, the kit includes the Reflector Front 1, Reflector Assy, and their respective Nut Flange hardware. Aesthetics and durability are bolstered by the Flap and Cover 1 (Black), secured with high-quality Bolt Flange and Bolt With Washer units. The assembly is rounded out with a specialized Clamp and Screw Tapping units for a secure installation. These genuine parts offer the technical clarity of perfect fitment and the purchase confidence of knowing your machine is protected by high-impact resistant materials. Keep your machine looking new and functioning perfectly.
