B62C
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B62F83110000 | LEG SHIELD 1 -BLACK | ₹ 396 | 1 | ||
| 2 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 3 | 903870782600 | COLLAR | ₹ 11 | 2 | ||
| 4 | 958120601400 | BOLT FLANGE | ₹ 5 | 2 | ||

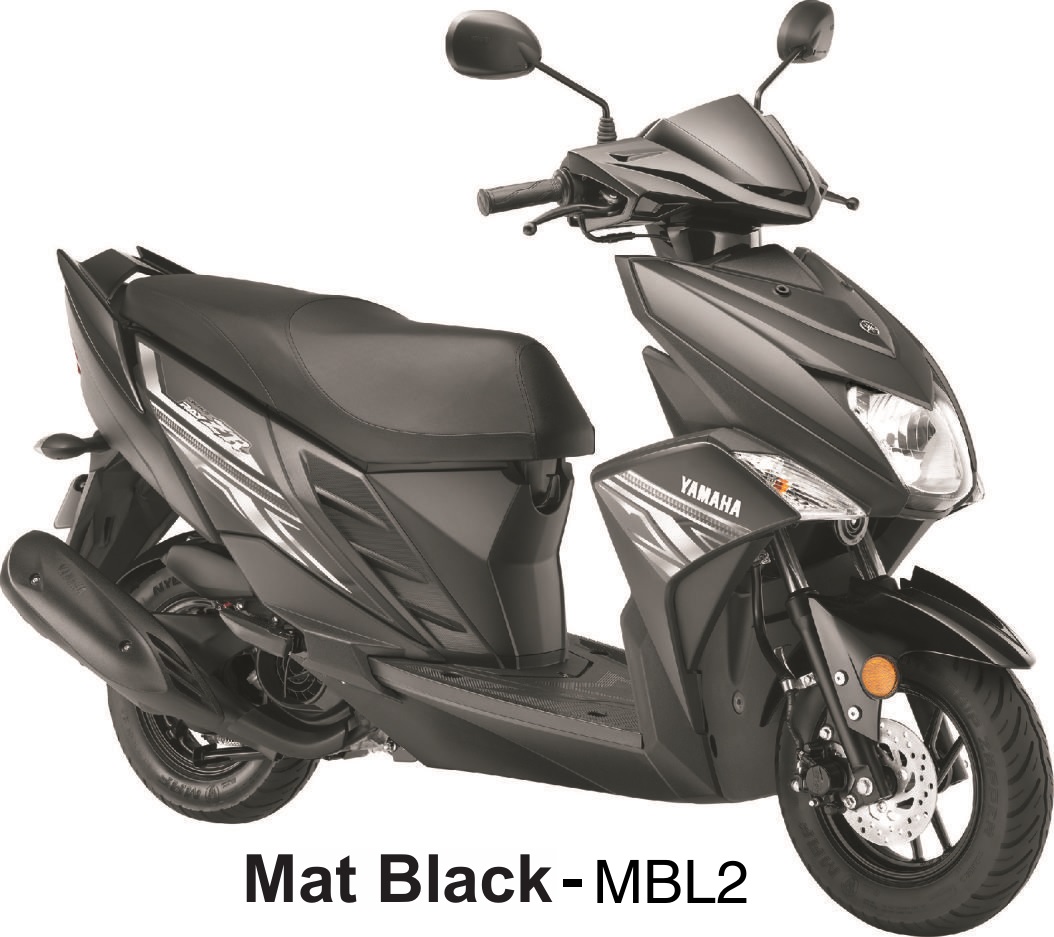

| 5 | B62F339100P3 | PANEL FRONT -MBL2(MAT BLACK) | ₹ 617 | 1 | FOR MBL2 | |
| 6 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 7 | B62F839R0000 | PANEL ACCESSORY -BLACK | ₹ 129 | 1 | ||
| 8 | 904801481900 | GROMMET | ₹ 8 | 2 | ||
| 9 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 10 | B62XF83H00P3 | PANEL COMP 1 | ₹ 617 | 1 | FOR MBL2 | |
| 11 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 12 | B62F83932000 | GRAPHIC 3 | ₹ 99 | 1 | ||
| 13 | B62F83G42000 | GRAPHIC 1 | ₹ 636 | 1 | ||
| 14 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 15 | B62XF83J00P3 | PANEL COMP 2-MBL2(MAT BLACK) | ₹ 617 | 2 | FOR MBL2 | |
| 16 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 17 | B62F83942000 | GRAPHIC 4 | ₹ 99 | 1 | ||
| 18 | B62F83G52000 | GRAPHIC 2 | ₹ 636 | 1 | ||
| 19 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 20 | B62F83120000 | LEG SHIELD 2 -BLACK | ₹ 474 | 2 | ||
| 21 | 905200284800 | DAMPER PLATE | ₹ 6 | 6 | ||
| 22 | 905200284700 | DAMPER PLATE | ₹ 6 | 4 | ||
| 23 | 977025001600 | SCREW TAPPING | ₹ 10 | 15 | ||
| 24 | 901090620200 | BOLT | ₹ 13 | 1 | ||
| 25 | 1GCF61990100 | PLUG, BLIND | ₹ 23 | 1 | ||
| 26 | B62F836K0000 | PANEL INNER 1 -BLACK | ₹ 145 | 1 | ||
| 27 | B62F83850000 | COVER UNDER -BLACK | ₹ 264 | 1 | ||
| 28 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 29 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 30 | B62F15520000 | FENDER INNER | ₹ 295 | 1 | ||
| 31 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 32 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 33 | 1GCF34870000 | STAY PLATE | ₹ 32 | 1 | ||
| 34 | 958070602000 | BOLT FLANGE | ₹ 5 | 2 | ||
| 35 | 90387066J900 | COLLAR | ₹ 7 | 2 | ||
| 36 | 902010607800 | WASHER PLATE | ₹ 10 | 2 | ||
| 37 | 9570N0650000 | NUT FLANGE | ₹ 2 | 2 | ||
| 38 | 5TSF836B0200 | TUNING FORK MARK | ₹ 23 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The B62C Leg Shield assembly is where personality and protection converge for your Yamaha RayZR. This extensive kit features a complex array of panels, including Leg Shield 1 and 2, Panel Front (MBL2), and the Inner Panel 1. Aesthetic flair is maintained through the Panel Accessory (Black), Panel Comp 1, and Panel Comp 2, all adorned with Graphics 1 through 4 and the prestigious Tuning Fork Mark. Every component is secured with specialized Nut Spring, Bolt Flange, and high-tensile Bolt hardware. To isolate vibrations, we provide high-quality GROMMET, Collar, and Washer Plate sets. The kit also includes the Fender Inner, Stay Plate, and specialized Plug Blind and Cover Under units for a finished look. Moisture protection is prioritized via the specialized Seat Pipe and various Nut Flange units. This assembly provides the technical clarity of a flawless fit and the purchase confidence of using high-impact resistant materials. Refresh your scooter’s profile and protect your engine components with these genuine Yamaha panels.
