B7J3
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

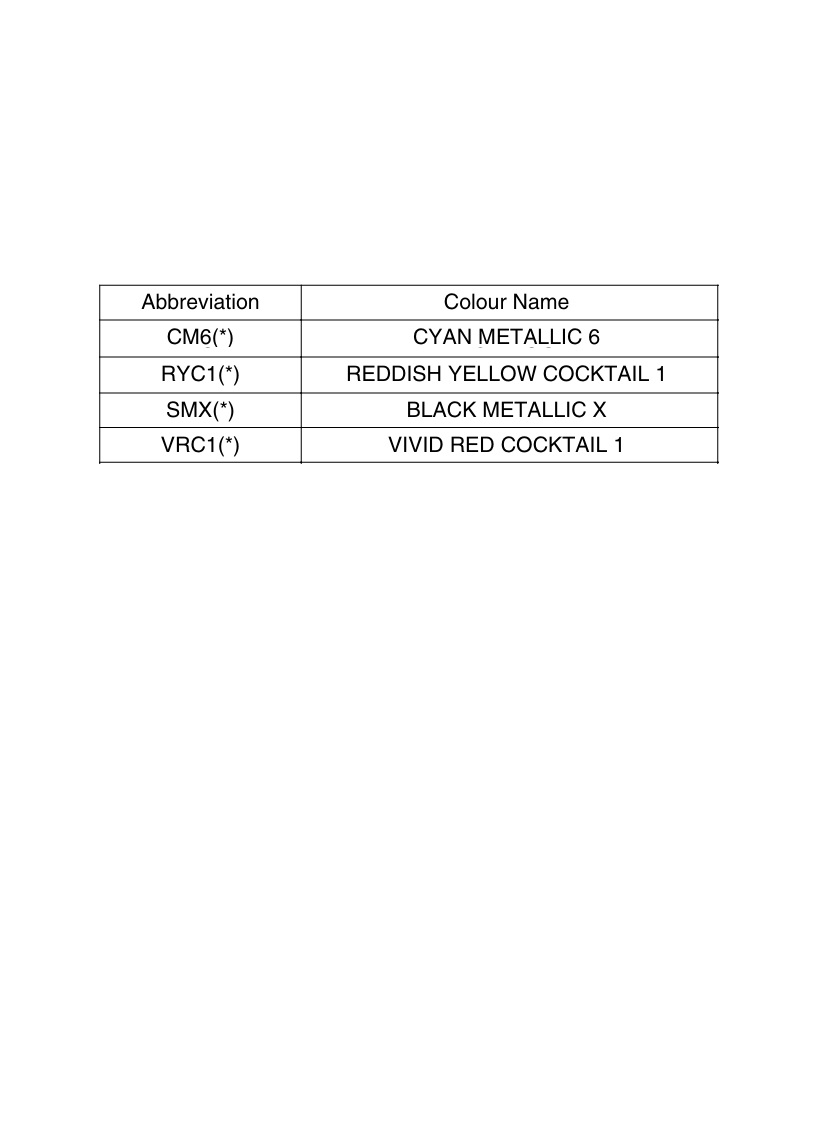

| 1A | B7JXF15120P0 | FENDER FRONT | ₹ 2007 | 1 | FOR SMX | |
| 1B | B7JXF15120P1 | FENDER FRONT | ₹ 2007 | 1 | FOR CM6 | |
| 1C | B7JXF15130P5 | FENDER FRONT | ₹ 2007 | 1 | FOR VRC1 | |
| 1D | B7JXF15120P6 | FENDER FRONT | ₹ 2007 | 1 | FOR RYC1 | |
| 2 | B7JF15693000 | GRAPHIC 1 | ₹ 10 | 2 | ||
| 5 | 901110685600 | BOLT,HEX. SOCKET BUTTON | ₹ 8 | 2 | ||
| 6 | B7JF15410000 | DAMPER 1 | ₹ 10 | 1 | ||
| 7 | B7JF15530000 | FENDER INNER 2 | ₹ 55 | 1 | ||
| 8 | 90387068S100 | COLLAR | ₹ 12 | 2 | ||
| 9 | 958120601600 | BOLT FLANGE | ₹ 3 | 3 | ||
| 10 | B7JF16110000 | FENDER REAR | ₹ 298 | 1 | ||
| 11 | 90387068S100 | COLLAR | ₹ 12 | 4 | ||
| 12 | 958120601400 | BOLT FLANGE | ₹ 5 | 4 | ||
| 13 | B7JF16210100 | FLAP | ₹ 25 | 1 | ||
| 14 | B7JF16910100 | FLAP | ₹ 32 | 1 | ||
| 15 | 901830506700 | NUT SPRING | ₹ 8 | 1 | ||
| 16 | B7JF162J0100 | FLAP 4 | ₹ 23 | 1 | ||
| 17 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 18 | 5USH51100100 | REFLECTOR ASSY | ₹ 14 | 1 | ||
| 19 | 957070550000 | NUT FLANGE | ₹ 1 | 1 | ||
| 20 | B7JF16410000 | BRACKET REFLECTOR | ₹ 15 | 2 | ||
| 21 | 950220601200 | BOLT FLANGE | ₹ 8 | 2 | ||
| 22 | 9570N0650000 | NUT FLANGE | ₹ 2 | 2 | ||
| 23 | 2FCH51110000 | REFLECTOR FRONT 1 | ₹ 23 | 2 | ||
| 24 | 957070550000 | NUT FLANGE | ₹ 1 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protect your bike with the Yamaha Fascino Fender assembly. This set includes the Front Fender and Rear Fender with integrated mud flaps. Featuring genuine Yamaha reflectors and mounting collars, this assembly ensures safety and durability. Each part is finished with factory-grade paint and high-strength plastics to withstand debris and spray. Buy from IndiaSpare.
