B7J5
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JF83110000 | LEG SHIELD 1 | ₹ 1060 | 1 | ||
| 2 | 977025001200 | SCREW TAPPING | ₹ 11 | 6 | ||
| 3 | 904640400500 | CLAMP | ₹ 6 | 1 | ||

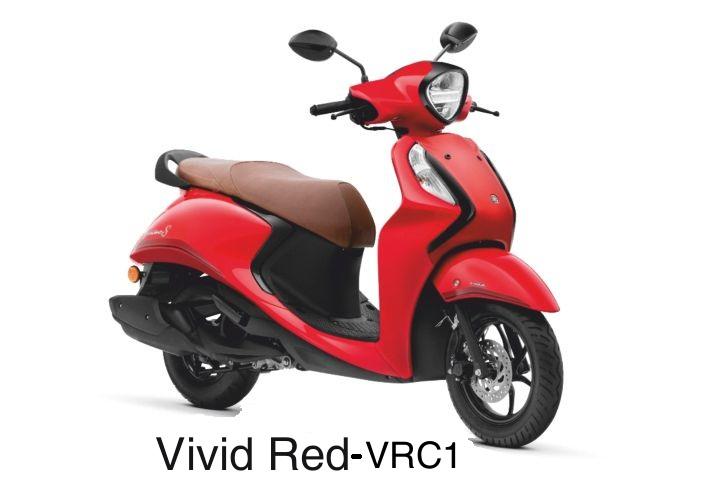

| 4A | B7JF835U00P5 | PANEL 1 | ₹ 1026 | 1 | FOR VRC1 | |

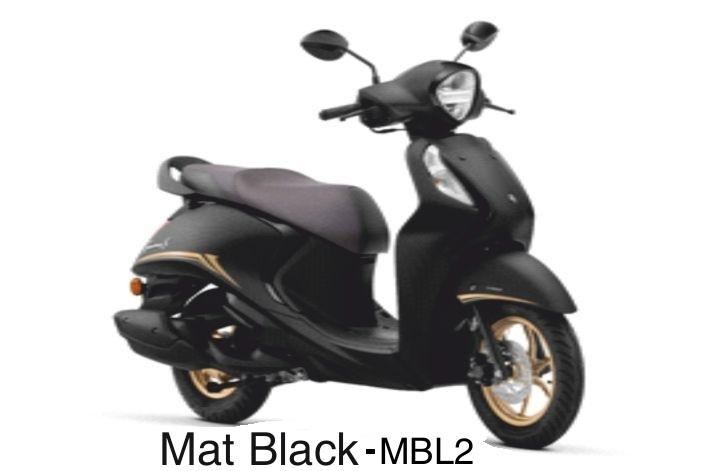

| 4B | B7JF835U00P8 | PANEL 1 | ₹ 892 | 1 | FOR MBL2 | |
| 6 | 901830580700 | NUT SPRING | ₹ 9 | 5 | ||
| 7 | 958120601600 | BOLT FLANGE | ₹ 3 | 1 | ||
| 8 | 90387068S100 | COLLAR | ₹ 12 | 1 | ||
| 9 | 977025001600 | SCREW TAPPING | ₹ 10 | 5 | ||
| 10 | B7JF834610P0 | MOLE 2 SMX | ₹ 400 | 1 | ||
| 11 | 901830580700 | NUT SPRING | ₹ 9 | 3 | ||
| 12A | B7JF835V00P5 | PANEL 2 | ₹ 1026 | 1 | FOR VRC1 | |
| 12B | B7JF835V00P8 | PANEL 2 | ₹ 892 | 1 | FOR MBL2 | |
| 14 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 15 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 16 | 977025001600 | SCREW TAPPING | ₹ 10 | 5 | ||
| 17 | 958120601600 | BOLT FLANGE | ₹ 3 | 1 | ||
| 18 | 90387068S100 | COLLAR | ₹ 12 | 1 | ||
| 19 | B7JF834710P0 | MOLE 3 SMX | ₹ 400 | 1 | ||
| 20 | 901830580700 | NUT SPRING | ₹ 9 | 3 | ||
| 21 | B7JF45950000 | PROTECTOR SEAL | ₹ 2 | 2 | ||
| 22A | B7JXF83U00P5 | MOLE SUB ASSY | ₹ 604 | 1 | FOR VRC1 | |
| 22B | B7JXF83U00P0 | MOLE SUB ASSY MBL2 | ₹ 645 | 1 | FOR MBL2 | |
| 23 | 2SPF836B0000 | TUNING FORK MARK | ₹ 20 | 1 | ||
| 24 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 25 | 904640701800 | CLAMP | ₹ 6 | 2 | ||
| 26 | B7JF83850000 | COVER LOWER | ₹ 295 | 1 | ||
| 27 | 977025001200 | SCREW TAPPING | ₹ 11 | 4 | ||
| 28 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 29 | 90387068S100 | COLLAR | ₹ 12 | 2 | ||
| 30 | 970120601400 | BOLT | ₹ 5 | 2 | ||
| 31 | B7JF15520000 | FENDER INNER | ₹ 672 | 1 | ||
| 32 | 977025001200 | SCREW TAPPING | ₹ 11 | 4 | ||
| 33 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 34 | B7JF34870000 | STAY PLATE | ₹ 21 | 1 | ||
| 35 | 958070602000 | BOLT FLANGE | ₹ 5 | 2 | ||
| 36 | 904801481900 | GROMMET | ₹ 8 | 2 | ||
| 37 | 90387066J900 | COLLAR | ₹ 7 | 2 | ||
| 38 | 902010607800 | WASHER PLATE | ₹ 10 | 2 | ||
| 39 | 9570N0650000 | NUT FLANGE | ₹ 2 | 2 | ||
| 40 | B7JF83790000 | HOOK | ₹ 81 | 1 | ||
| 41 | 90109068C800 | BOLT | ₹ 18 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The Leg Shield 1 and Panel 1 assembly define the Yamaha Fascino's elegant profile while providing essential rider protection. This extensive bodywork kit features the Panel 2, Mole 2 SMX, and Mole 3 SMX, all secured via Screw Tapping, Nut Spring, Bolt Flange, and Collar hardware. Structural integrity is reinforced by the Stay, Plate, and a series of specialized fasteners like the Washer Plate and Nut Flange. Additional defense comes from the Protector Seal and Mole Sub Assy (including MBL2), while the iconic Tuning Fork Mark signifies genuine Yamaha quality. The assembly is completed with the Cover Lower, Fender Inner, and a utility Hook, all mounted with vibration-resistant Grommet and Bolt units. Replacing damaged panels with these factory-original parts ensures a perfect fit, aerodynamic efficiency, and purchase confidence. Restore your scooter’s showroom shine while maintaining the precise tolerances and premium finish that make the Fascino a standout on every city street.
