B812
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1A | 1GCXF15130P8 | FENDER FRONT -CM6(CYAN METALL | ₹ 709 | 1 | FOR MBL2 | |
| 1B | 1GCXF15130P9 | FENDER FRONT-MBL2(MAT BLACK) | ₹ 709 | 1 | FOR BWC1 | |

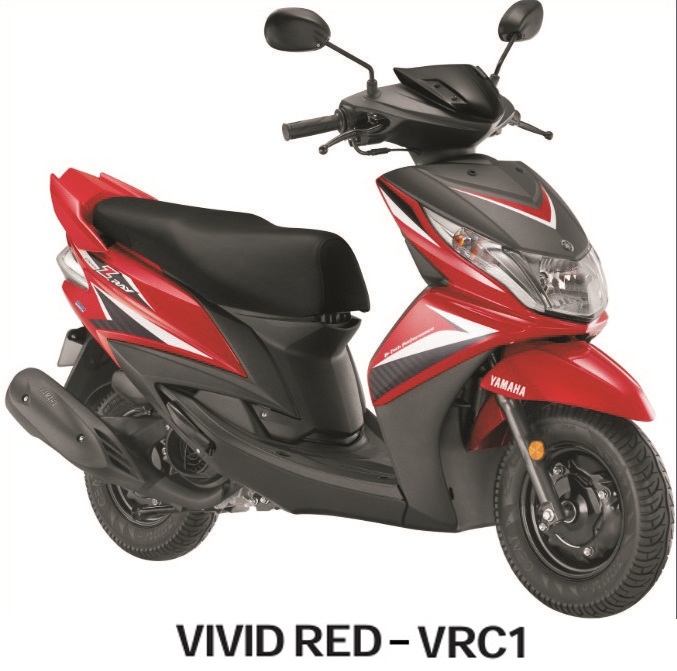

| 1C | 1GCXF15130P4 | FENDER FRONT -VRC1(VIVID RED) | ₹ 709 | 1 | FOR VRC1 | |

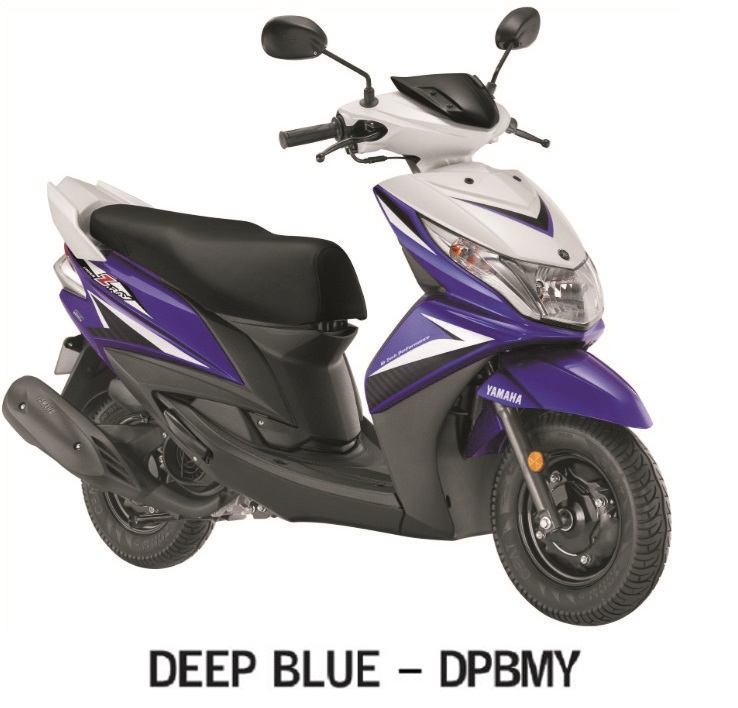

| 1D | 1GCXF15130P5 | FENDER FRONT -DPBMY(PURPLE B | ₹ 709 | 1 | FOR DPBMY | |
| 2 | 90387068S100 | COLLAR | ₹ 12 | 3 | ||
| 3 | 958120601400 | BOLT FLANGE | ₹ 5 | 3 | ||
| 4 | 1GCF16110000 | FENDER REAR | ₹ 128 | 1 | ||
| 5 | 901090620200 | BOLT | ₹ 13 | 3 | ||
| 6 | 90387068M600 | COLLAR | ₹ 11 | 1 | ||
| 7 | 901190620900 | BOLT WITH WASHER | ₹ 17 | 1 | ||
| 8 | 1GCF16120000 | BRACKET REAR FENDER | ₹ 20 | 1 | ||
| 9 | 958120601400 | BOLT FLANGE | ₹ 5 | 1 | ||
| 10 | 2FSF16290000 | GUARD MUD | ₹ 279 | 1 | ||
| 11 | 901090620200 | BOLT | ₹ 13 | 2 | ||
| 12 | 901190613700 | BOLT WITH WASHER | ₹ 9 | 2 | ||
| 13 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 14 | 2FSF16210000 | FLAP | ₹ 18 | 1 | ||
| 15 | 5USH51100100 | REFLECTOR ASSY | ₹ 14 | 1 | ||
| 16 | 957020550000 | NUT FLANGE | ₹ 2 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Guard your Yamaha RayZR against the elements with our durable Fender components, designed for maximum protection and style. The Fender Front is available in Cyan Metallic, Mat Black, Vivid Red, and Purple Blue finishes, secured by the high-strength Bolt Flange and Collar hardware. For the rear, the Fender Rear and Bracket Rear Fender provide a robust shield against mud and water spray, supported by the Guard Mud and protective Flap. Every mounting point is reinforced with the Bolt with Washer and Nut Spring to ensure a secure, rattle-free fitment. Safety is prioritized with the Reflector Assy and Nut Flange, ensuring you remain visible from all angles in low-light conditions. These parts offer the technical clarity and purchase confidence required for a clean and safe ride in any weather. By choosing genuine fenders, you protect your engine and electrical components from road spray, ensuring that your vehicle stays cleaner and its internal parts last longer. Trust original equipment for the ultimate protection on your Yamaha RayZR.
