STEERING HANDLE & CABLE
0
B823
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2SPF61100000 | HANDLE COMP. | ₹ 805 | 1 | ||
| 2 | 901051028300 | BOLT FLANGE | ₹ 24 | 1 | ||
| 3 | 956021020000 | NUT U FLANGE | ₹ 32 | 1 | ||

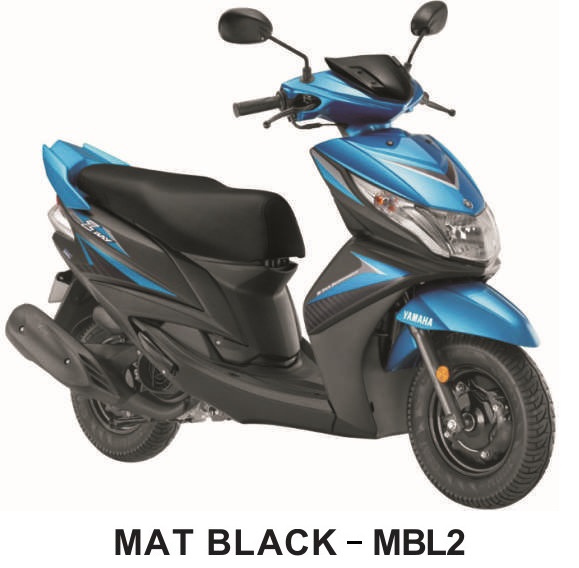

| 4A | B81F614300P0 | COVER HANDLEBAR UPPER 1 CM6 | ₹ 732 | 1 | FOR MBL2 | |

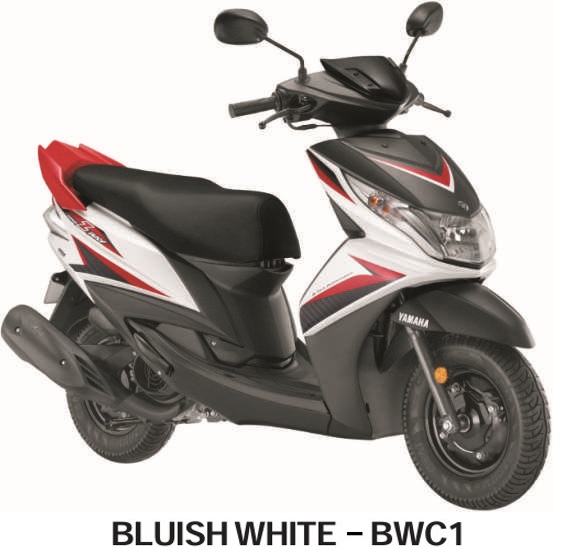

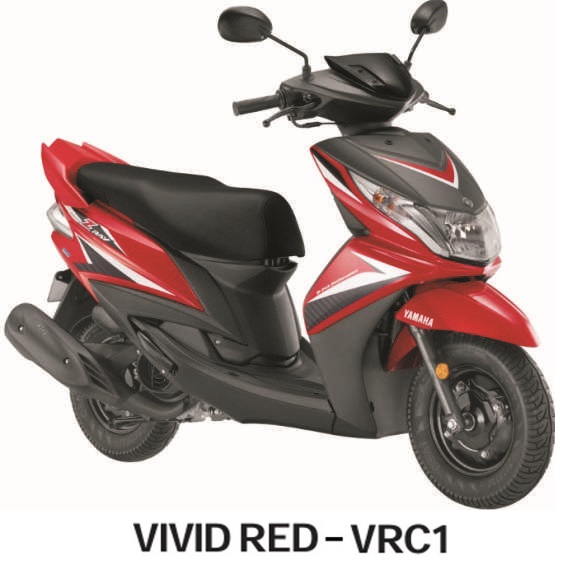

| 4B | B81F614300P1 | COVER HANDLEBAR UPPER 1 MBL2 | ₹ 732 | 1 | FOR BWC1,VRC1 | |

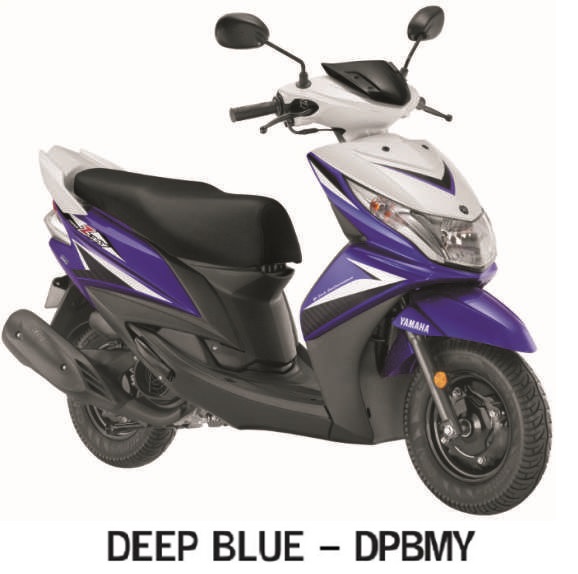

| 4C | B81F614300P2 | COVER HANDLEBAR UPPER 1 BWC1 | ₹ 732 | 1 | FOR DPBMY | |
| 5 | 1GCF61450000 | COVER, HANDLEBAR UPPER 2 | ₹ 210 | 1 | ||
| 6 | 901830580700 | NUT SPRING | ₹ 9 | 6 | ||
| 7 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 8 | 977025001600 | SCREW TAPPING | ₹ 10 | 11 | ||
| 9 | BP1F59160000 | PLUG | ₹ 5 | 1 | ||
| 10 | 2FSF62400000 | GRIP ASSY | ₹ 44 | 1 | ||
| 11 | 2FSF62810000 | CAP GRIP UPPER | ₹ 15 | 1 | ||
| 12 | 2FSF62820000 | CAP, GRIP UNDER | ₹ 15 | 1 | ||
| 13 | 985020502500 | SCREW PAN HEAD | ₹ 4 | 2 | ||
| 14 | 54BF62410000 | GRIP | ₹ 38 | 1 | ||
| 15 | 2FSF62800000 | REAR VIEW MIRROR ASSY (LEFT) | ₹ 178 | 1 | ||
| 16 | 2FSF62900000 | REAR VIEW MIRROR ASSY (RIGHT) | ₹ 178 | 1 | ||
| 17 | B2VF63110100 | CABLE THROTTLE 1 | ₹ 385 | 1 | ||
| 18 | 985020502000 | SCREW PAN HEAD | ₹ 4 | 1 | ||
| 19 | 904642480200 | CLAMP | ₹ 13 | 1 | ||
| 20 | BP1F63410000 | CABLE, BRAKE | ₹ 205 | 1 | ||
| 21 | 905011081700 | SPRING COMPRESSION | ₹ 8 | 1 | ||
| 22 | 901790686300 | NUT | ₹ 35 | 1 | ||
| 23 | 902491200800 | PIN | ₹ 20 | 1 | ||
| 24 | BP1F63510000 | CABLE BRAKE | ₹ 315 | 1 | ||
| 25 | 905011480000 | SPRING COMPRESSION | ₹ 8 | 1 | ||
| 26 | 901790680600 | NUT BRAKE | ₹ 17 | 1 | ||
| 27 | 902491200800 | PIN | ₹ 20 | 1 | ||
| 28 | 1GCF637G0000 | HOLDER, WIRE | ₹ 18 | 1 | ||
| 29 | 1GCF62570000 | STOPPER | ₹ 5 | 1 | ||
| 30 | 950220604000 | BOLT FLANGE | ₹ 18 | 1 | ||
| 31 | 950220601000 | BOLT FLANGE | ₹ 15 | 1 | ||
| 32 | 904643680000 | CLAMP | ₹ 8 | 1 | ||
| 33 | 2FSF63310000 | CABLE STARTER 1 | ₹ 185 | 1 | ||
| 34 | 1GCF63530000 | NUT ADJUSTING | ₹ 15 | 1 | ||
| 35 | 2FSF62790000 | GUIDE CABLE | ₹ 25 | 1 | ||
| 36 | 950220601200 | BOLT FLANGE | ₹ 8 | 2 | ||
| 37 | 2FSF637G0000 | HOLDER, WIRE | ₹ 15 | 1 | ||
| 38 | 2NCF83810000 | WINDSHIELD | ₹ 140 | 1 | ||
| 39 | 977075001200 | SCREW TRUSS HD TAP | ₹ 5 | 4 | ||
| 40 | 2NCF62920000 | STAY | ₹ 30 | 1 | ||
| 41 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 42 | 989020502000 | SCREW BIND | ₹ 5 | 4 | ||
| 43 | 901790580400 | NUT | ₹ 10 | 4 | ||
| 44 | BP1F63610000 | CABLE BRAKE | ₹ 215 | 1 | ||
| 45 | 905011081700 | SPRING COMPRESSION | ₹ 8 | 1 | ||
| 46 | 901790686300 | NUT | ₹ 35 | 1 | ||
| 47 | 902491200800 | PIN | ₹ 20 | 1 | ||
| 48 | BP1F63720000 | COVER HANDLE LEVER 1 | ₹ 15 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA B823 RAYZ Series STEERING HANDLE & CABLE
