HEADLIGHT
B8T1/B4G1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B4GH43000000 | HEADLIGHT ASSY | ₹ 3222 | 1 | ||
| 2 | 2LPH43470000 | BULB ( 12V-5W ) | ₹ 23 | 1 | ||
| 3 | B4GH43120000 | HOLDER SOCKET | ₹ 145 | 1 | ||
| 4 | 904801410100 | GROMMET | ₹ 10 | 2 | ||
| 5 | 90387068D400 | COLLAR | ₹ 7 | 2 | ||
| 6 | 958270602500 | BOLT FLANGE | ₹ 6 | 2 | ||
| 7 | 901830606900 | NUT SPRING | ₹ 159 | 2 | ||
| 8 | B4GF31750000 | BRACKET HEADLIGHT STAY 1 | ₹ 79 | 1 | ||
| 9 | 901830606900 | NUT SPRING | ₹ 159 | 2 | ||
| 10 | 958270801600 | BOLT FLANGE | ₹ 10 | 2 | ||
| 11 | B4GF31210000 | COVER UPPER 1 | ₹ 82 | 1 | ||
| 12 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 13 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 14 | 958270801600 | BOLT FLANGE | ₹ 10 | 1 | ||
| 15 | 90387068N200 | COLLAR | ₹ 11 | 1 | ||

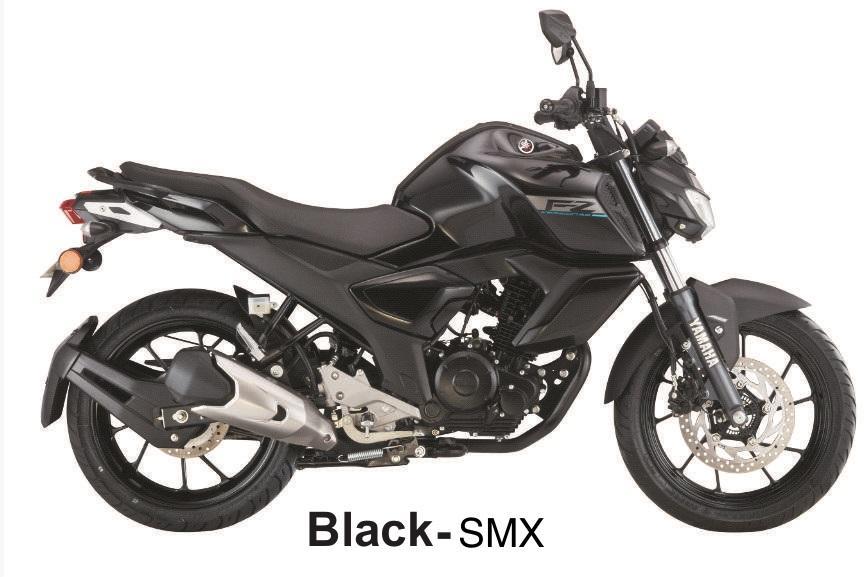

| 16A | B4GF312200P0 | COVER OUTER 1 SMX | ₹ 132 | 1 | FOR SMX | |

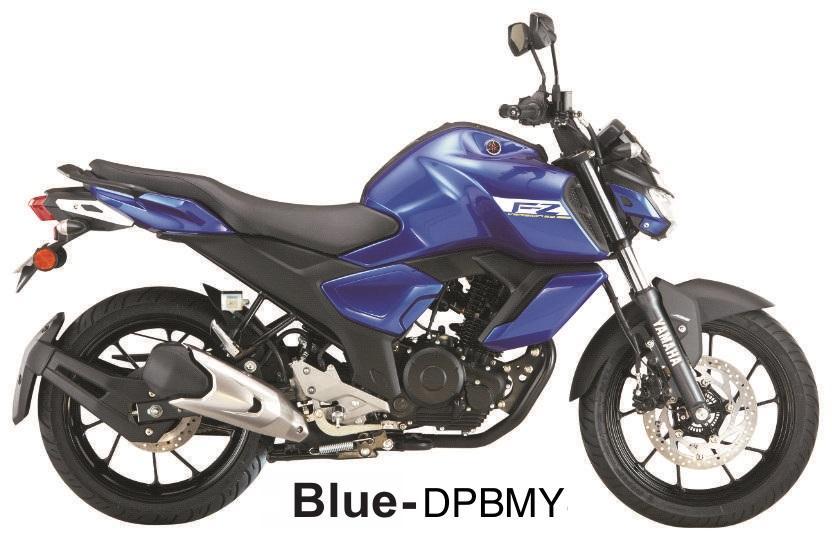

| 16B | B4GF312200P1 | COVER OUTER 1 DPBMY | ₹ 132 | 1 | FOR DPBMY | |
| 17 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 1 | ||
| 18 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 19A | B4GF313200P0 | COVER OUTER 2 SMX | ₹ 132 | 1 | FOR SMX | |
| 19B | B4GF313200P1 | COVER OUTER 2 DPBMY | ₹ 132 | 1 | FOR DPBMY | |
| 20 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 1 | ||
| 21 | 901830580700 | NUT SPRING | ₹ 9 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Piercing through the darkness becomes an effortless task when your Yamaha FZ V3 is equipped with its signature Headlight assembly. This crucial component defines the face of the motorcycle while providing a powerful beam to illuminate the diverse obstacles of Indian roads. The Headlight Assy works with high efficiency to ensure you remain visible to oncoming traffic even in low light conditions. Specialized hardware like the Bracket Headlight Stay one plus various Nut Spring pieces keep the entire structure secure against high speed wind resistance. The Cover Upper one plus specialized GROMMET protect the sensitive electronics housed within the front cowl from dust plus debris. Every Screw Tapping plus specialized Collar included in this assembly contributes to the rattle free experience that Yamaha FZ V3 owners truly appreciate. Investing in authentic lighting components preserves the aesthetic appeal plus functional excellence of your street naked machine for all nocturnal adventures.
