STEERING HANDLE & CABLE
0
B9C1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2SPF61100000 | HANDLE COMP. | ₹ 805 | 1 | ||
| 2 | 901051028300 | BOLT FLANGE | ₹ 24 | 1 | ||
| 3 | 956021020000 | NUT U FLANGE | ₹ 32 | 1 | ||
| 4 | 977025001600 | SCREW TAPPING | ₹ 10 | 3 | ||

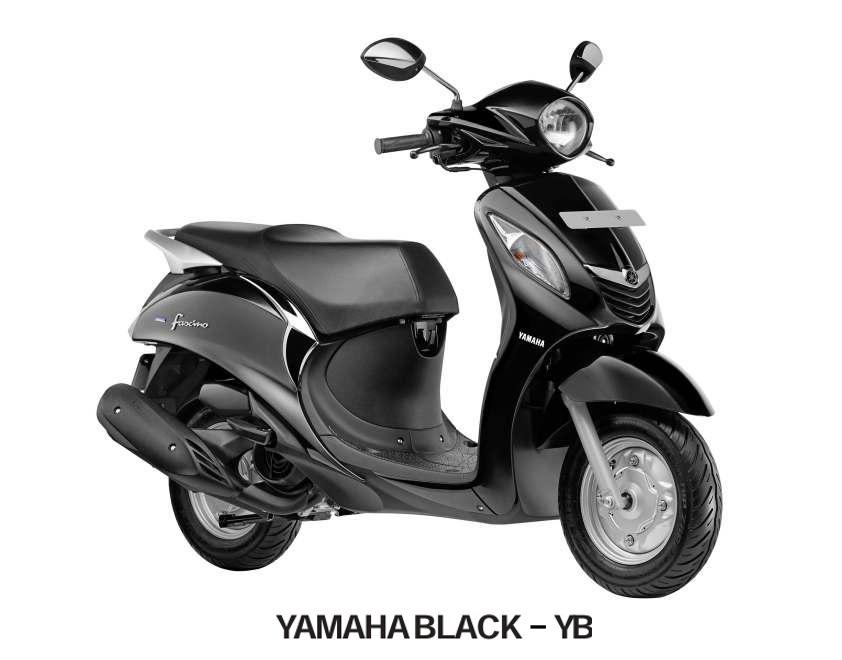

| 5A | 2SPF61430133 | COVER HANDLEBAR UPPER 1 (YB) | ₹ 730 | 1 | FOR YB | |

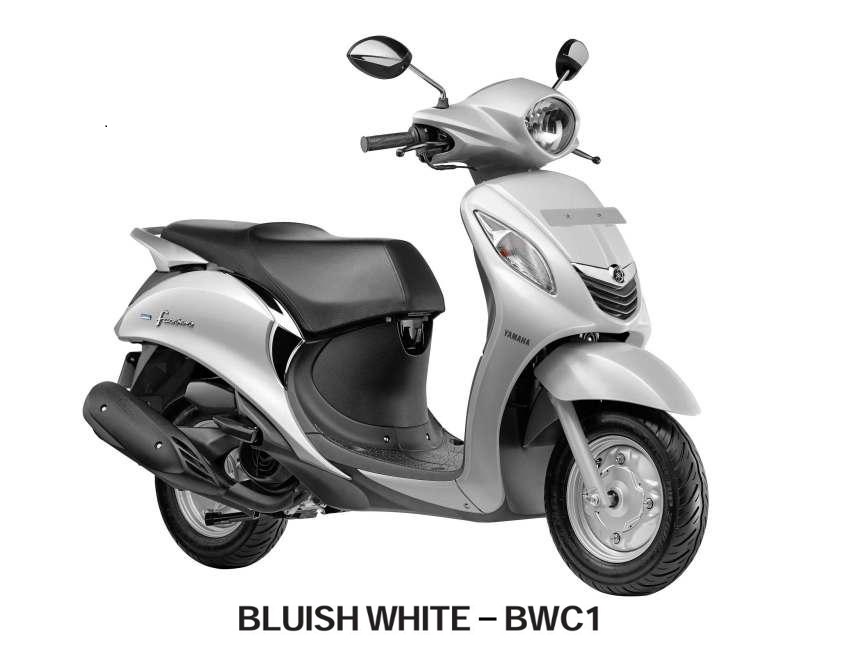

| 5B | 2SPF614301P0 | COVER HANDLEBAR UPPER 1 | ₹ 730 | 1 | FOR BWC1 | |

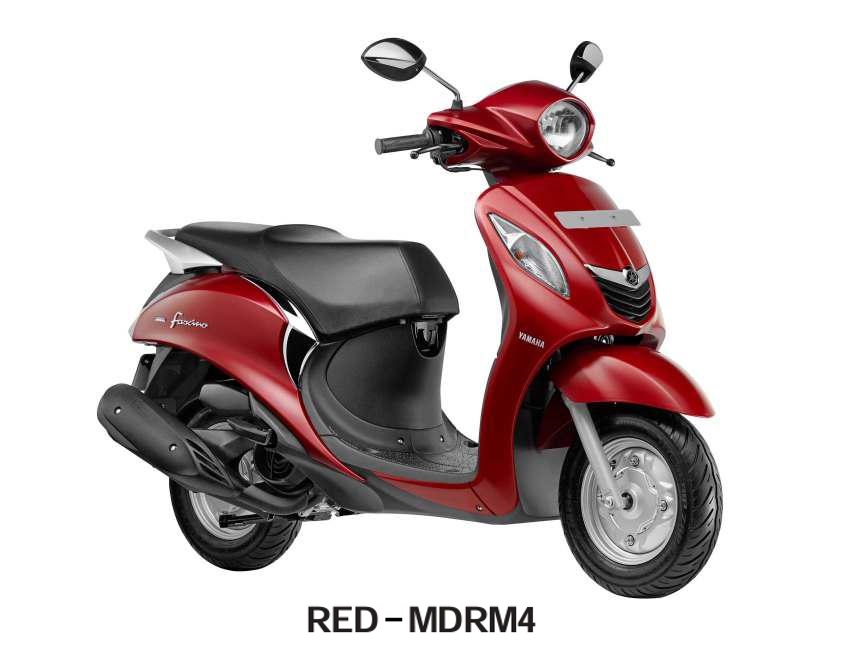

| 5C | 2SPF614301P1 | COVER HANDLE UPPER 1-MDRM4(MAT | ₹ 730 | 1 | FOR MDRM4 | |

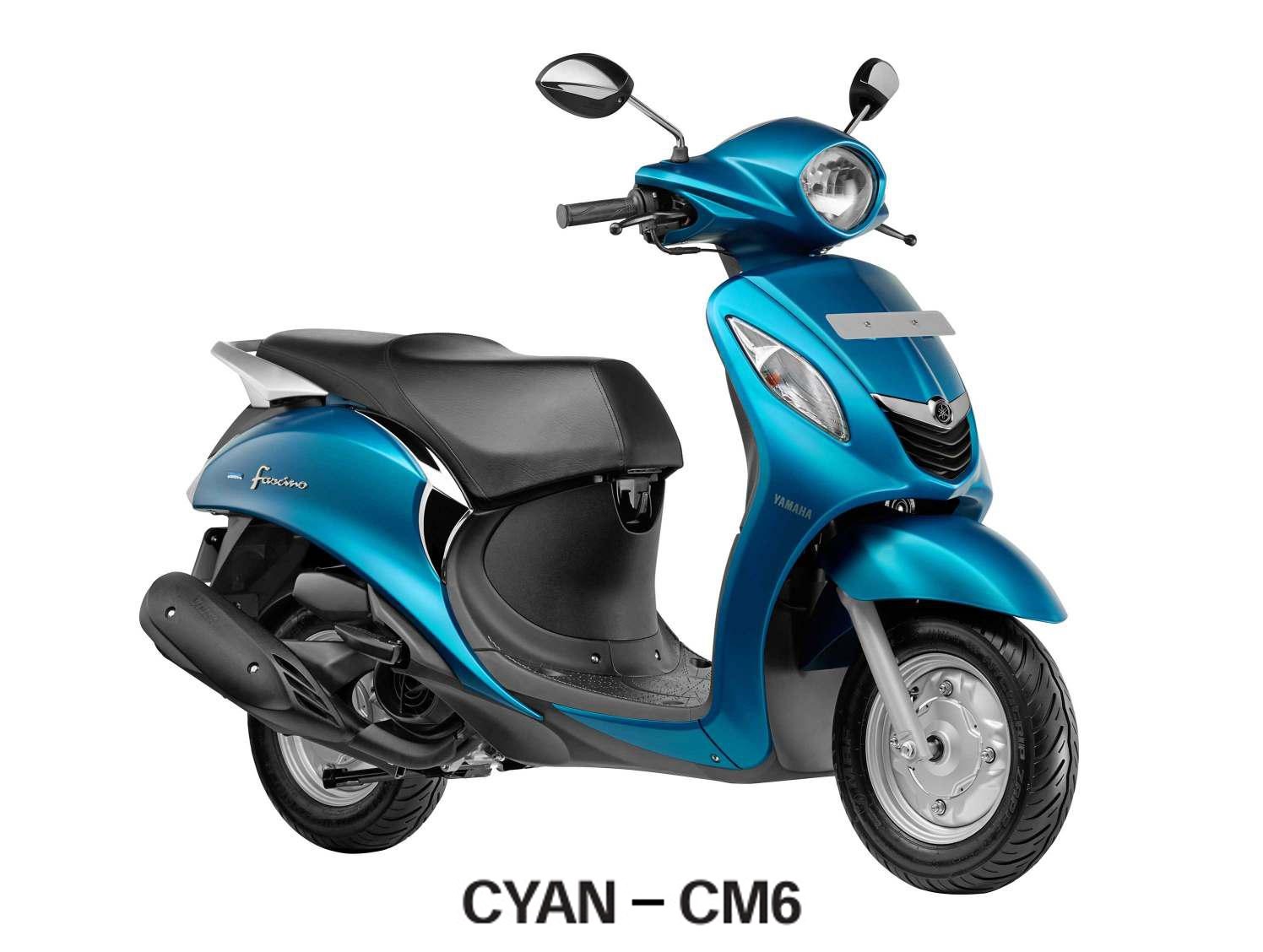

| 5D | 2SPF614301P2 | COVER HANDLE UPPER 1-CM6(CYAN) | ₹ 730 | 1 | FOR CM6 | |

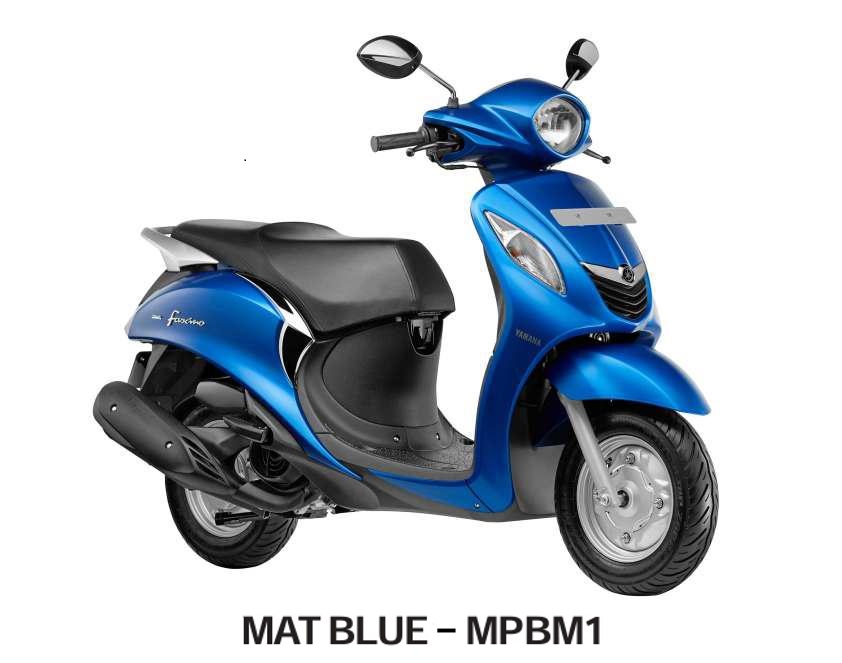

| 5E | 2SPF614301P4 | COVERHANDLEUPPER1-MPBM1(MATPUR | ₹ 730 | 1 | FOR MPBM1 | |
| 6 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 7 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 8 | 2SPF61450000 | COVER,HANDLE 2 | ₹ 205 | 1 | ||
| 9 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 10 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 11 | 2SPH355900P1 | COVER METER-SILVER | ₹ 280 | 1 | ||
| 12 | 2FSF62400000 | GRIP ASSY | ₹ 44 | 1 | ||
| 13 | 2FSF62810000 | CAP GRIP UPPER | ₹ 15 | 1 | ||
| 14 | 2FSF62820000 | CAP, GRIP UNDER | ₹ 15 | 1 | ||
| 15 | 985020502500 | SCREW PAN HEAD | ₹ 4 | 2 | ||
| 16 | 54BF62410000 | GRIP | ₹ 38 | 1 | ||
| 17 | 2SPF62800100 | REAR VIEW MIRROR ASSY (LEFT) | ₹ 425 | 1 | ||
| 18 | 2SPF62900100 | REAR VIEW MIRROR ASSY (RIGHT) | ₹ 425 | 1 | ||
| 19 | 2FSF63110000 | CABLE THROTTLE 1 | ₹ 325 | 1 | ||
| 20 | 985020502000 | SCREW PAN HEAD | ₹ 4 | 1 | ||
| 21 | 904642480200 | CLAMP | ₹ 13 | 1 | ||
| 22 | 1GCF63410000 | CABLE, BRAKE | ₹ 205 | 1 | ||
| 23 | 905011080900 | SPRING COMPRESSION | ₹ 6 | 1 | ||
| 24 | 901790680600 | NUT BRAKE | ₹ 17 | 1 | ||
| 25 | 902491200800 | PIN | ₹ 20 | 1 | ||
| 26 | 1GCF63510100 | CABLE BRAKE | ₹ 410 | 1 | ||
| 27 | 905011680400 | SPRING COMPRESSION | ₹ 10 | 1 | ||
| 28 | 901790680600 | NUT BRAKE | ₹ 17 | 1 | ||
| 29 | 902491200800 | PIN | ₹ 20 | 1 | ||
| 30 | 1GCF637G0000 | HOLDER, WIRE | ₹ 18 | 1 | ||
| 31 | 1GCF62570000 | STOPPER | ₹ 5 | 1 | ||
| 32 | 950220604000 | BOLT FLANGE | ₹ 18 | 1 | ||
| 33 | 950220601000 | BOLT FLANGE | ₹ 15 | 1 | ||
| 34 | 2FSF63310000 | CABLE STARTER 1 | ₹ 185 | 1 | ||
| 35 | 1GCF63530000 | NUT ADJUSTING | ₹ 15 | 1 | ||
| 36 | 2FSF62790000 | GUIDE CABLE | ₹ 25 | 1 | ||
| 37 | 950220601200 | BOLT FLANGE | ₹ 8 | 2 | ||
| 38 | 2FSF637G0000 | HOLDER, WIRE | ₹ 15 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA B9C1 FASCINO 110 Series STEERING HANDLE & CABLE
