B9C3
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

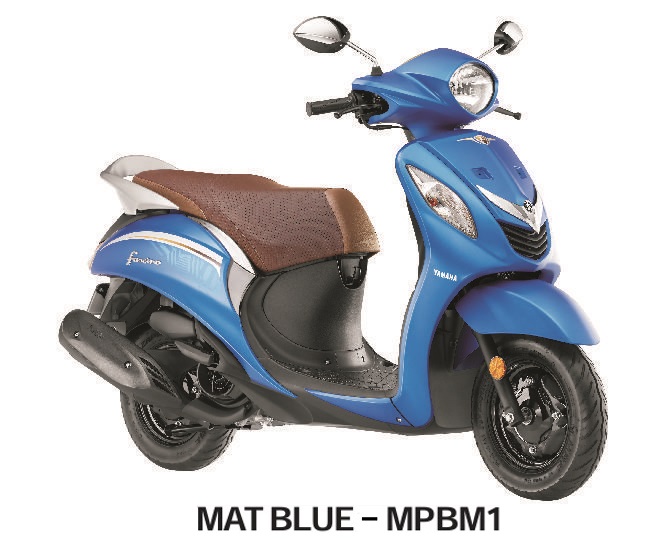

| 1A | 2SPXF15100P4 | FENDER FRONT MPBM1 | ₹ 792 | 1 | FOR MPBM1 | |

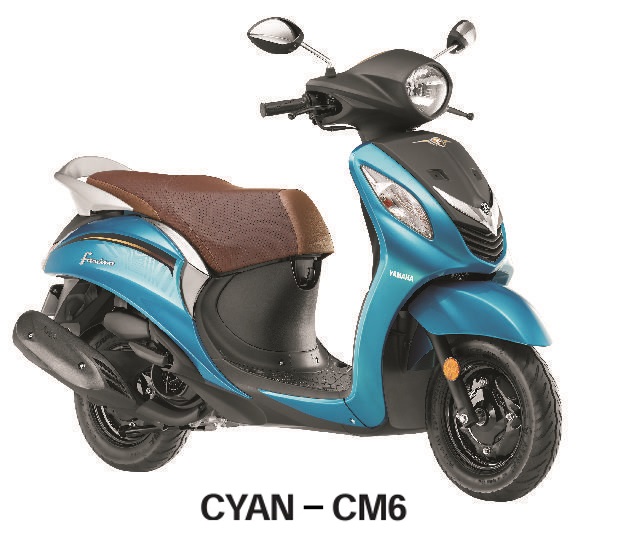

| 1B | 2SPXF15100P2 | FENDER FRONT CM6 | ₹ 926 | 1 | FOR CM6 | |

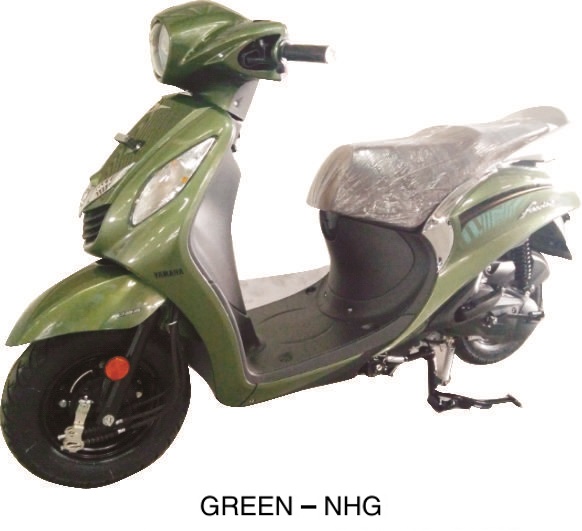

| 1C | 2SPXF15100V9 | FENDER FRONT NHG | ₹ 792 | 1 | FOR NHG | |

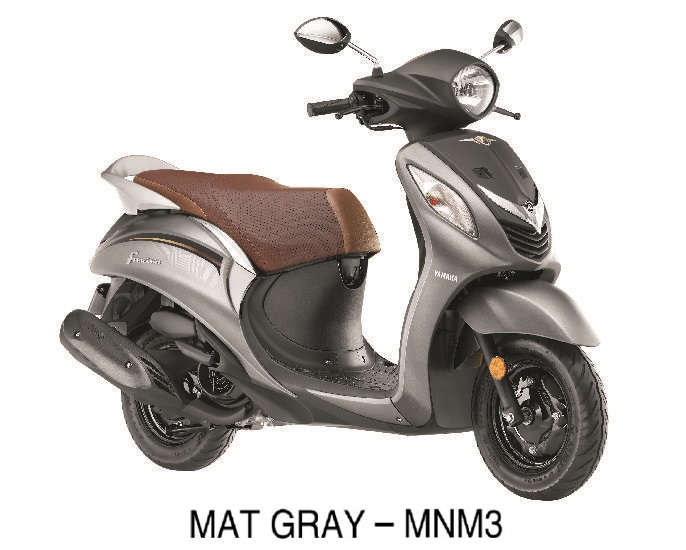

| 1D | 2SPXF15100P6 | FENDER FRONT MNM3 | ₹ 792 | 1 | FOR MNM3 | |

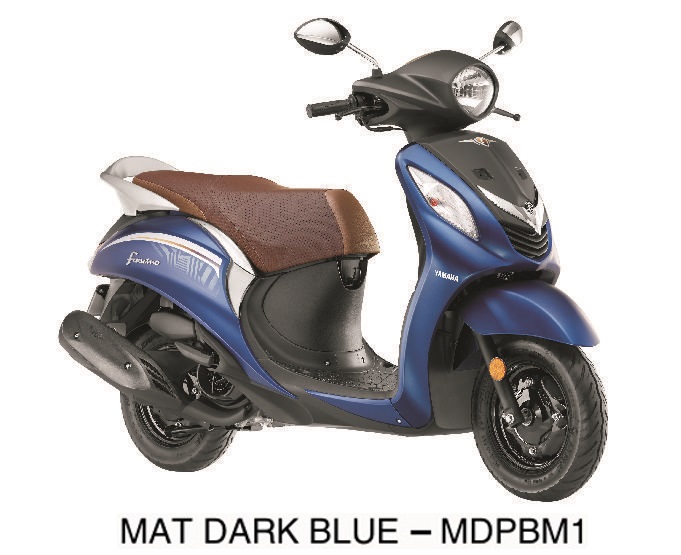

| 1E | 2SPXF15100P7 | FENDER FRONT MDPBM1 | ₹ 792 | 1 | FOR MDPBM1 | |

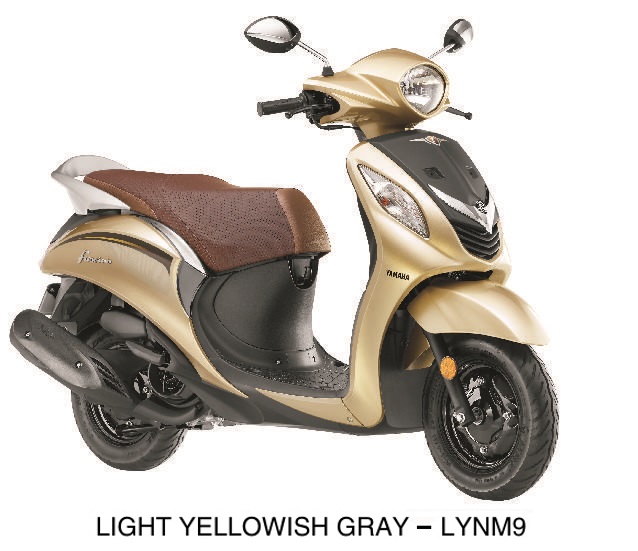

| 1F | 2SPXF15100P8 | FENDER FRONT LYNM9 | ₹ 792 | 1 | FOR LYNM9 | |
| 2 | B7JF15693000 | GRAPHIC 1 | ₹ 10 | 2 | ||
| 3 | 90387068S100 | COLLAR | ₹ 12 | 3 | ||
| 4 | 958120601400 | BOLT FLANGE | ₹ 5 | 3 | ||
| 5 | 1GCF16110000 | FENDER REAR | ₹ 128 | 1 | ||
| 6 | 901090620200 | BOLT | ₹ 13 | 3 | ||
| 7 | 90387068M600 | COLLAR | ₹ 11 | 1 | ||
| 8 | 901190620900 | BOLT WITH WASHER | ₹ 17 | 1 | ||
| 9 | 1GCF16120000 | BRACKET REAR FENDER | ₹ 20 | 1 | ||
| 10 | 958120601400 | BOLT FLANGE | ₹ 5 | 1 | ||
| 11 | 2SPF16290000 | GUARD MUD | ₹ 322 | 1 | ||
| 12 | 901090620200 | BOLT | ₹ 13 | 2 | ||
| 13 | 901190613700 | BOLT WITH WASHER | ₹ 9 | 2 | ||
| 14 | 2FSF16210000 | FLAP | ₹ 18 | 1 | ||
| 15 | 904800155800 | GROMMET | ₹ 10 | 2 | ||
| 16 | 5USH51100100 | REFLECTOR ASSY | ₹ 14 | 1 | ||
| 17 | 957020550000 | NUT FLANGE | ₹ 2 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protect your scooter’s chassis with the Yamaha Fascino Fender assembly. This set features the Front Fender and Rear Fender units, available in factory colors like Mat Grey and Mat Purpleblue. The kit includes a dedicated Mud Guard and Flap for enhanced splash protection. All mounting hardware, including Collars, Flange Bolts, and GROMMETS, is provided for a secure fit. Genuine fenders are constructed from resilient materials that can withstand impact from road grit.
